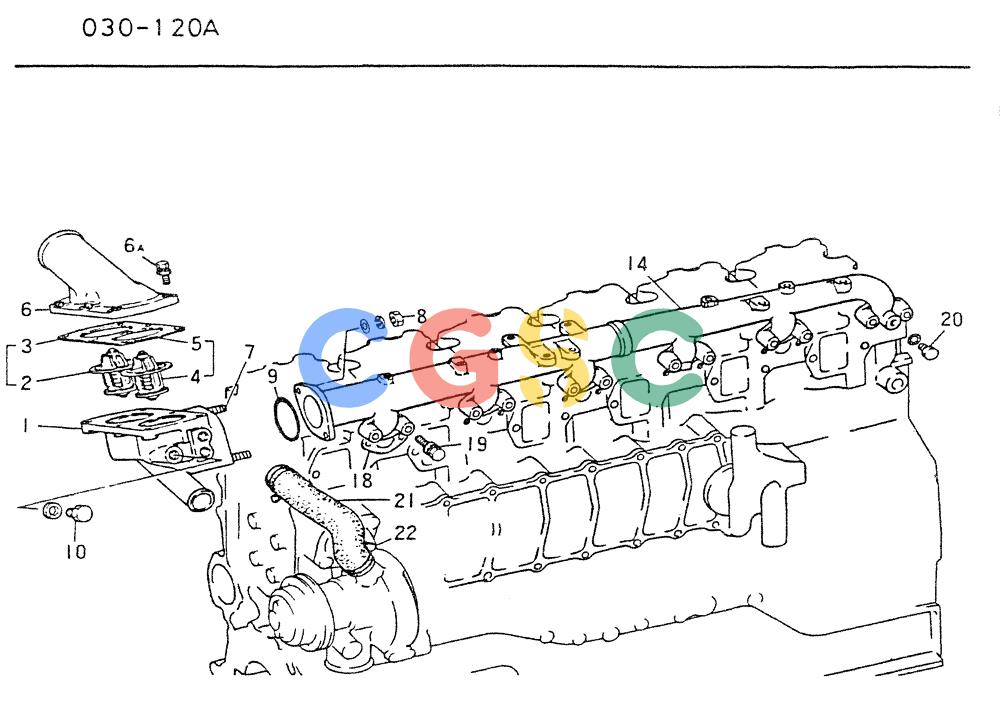

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (02-002) - WATER PIPE & THERMOSTAT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
830 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS04 | [1] | WATER PIPE & THERMOSTAT(M3) | |
| . . | 6D221CZ-KS01 | [1] | WATER PIPE & THERMOSTAT(M3) | |
| . . | 6D221CT-KS03 | [1] | WATER PIPE & THERMOSTAT(M0) | |
| . . | 6D221CZ-KS0A | [1] | WATER PIPE & THERMOSTAT(M0) | |
| . . | 6D221CZ-KS07 | [1] | WATER PIPE & THERMOSTAT(M0) | |
| . . | 6D221CZ-KS06 | [1] | WATER PIPE & THERMOSTAT(M3) | |
| . . | 6D221CZ-KS09 | [1] | WATER PIPE & THERMOSTAT(M3) | |
| 1-7. | VAME059286 | [1] | THERMOSTAT ASSY | |
| 1. | VAME059270 | [1] | CASE, THERMO | CASE, THERMO |
| 2-3. | VAME999306 | [1] | THERMOSTAT | KOBTHERMOSTAT KIT 76.5°C (FOR SERVICE ONLY) |
| 2. | VA3124644109 | [1] | THERMOSTAT | KOB76.5°C Superseded by part number: VAME999306 |
| 3. | VA3094601300 | [1] | GASKET | KOBTHERMOSTAT COVER Superseded by part number: 134824A1 |
| 4-5. | VAME999306 | [1] | THERMOSTAT | KOBTHERMOSTAT KIT 76.5°C (FOR SERVICE ONLY) |
| . . | VA3124644109 | [1] | THERMOSTAT | KOB76.5°C Superseded by part number: VAME999306 |
| 5. | VA3094601300 | [1] | GASKET | KOBTHERMOSTAT COVER Superseded by part number: 134824A1 |
| 6. | VA3094602200 | [1] | COVER, THERMOSTAT | |
| 6A. | VAMF302525 | [6] | BOLT | KOBW/WSR 10X30 |
| 7. | VAMF406285 | [2] | STUD | KOB10X22 Superseded by part number: 134827A1 |
| 8. | VAMF430122 | [2] | NUT | KOB10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [2] | WASHER | KOBSPG 10 |
| . . | VAMF450006 | [2] | NUT | KOBPLAIN 10 Superseded by part number: 133247A1 |
| . . | VAMF520409 | [1] | O-RING | KOB65 Superseded by part number: VAF315306500 |
| 10. | VAM0001300 | [1] | PLUG | KOBDRAIN 16 |
| . . | VAMF660066 | [1] | GASKET | KOB16 Superseded by part number: VAF420216000 |
| 14. | VAME055270 | [1] | PIPE | KOBWATER OUTLET Superseded by part number: VAME150883 |
| 18. | VA3094600500 | [6] | GASKET | KOBWATER OUTLET PIPE Superseded by part number: VAME150855 |
| 19. | VAMF303371 | [12] | BOLT W/WSR 10X50 | BOLT W/WSR 10X50 |
| 20. | VAMF665004 | [1] | PLUG 14 (FOR M0) | PLUG 14 (FOR M0) |
| . . | VAMF660065 | [1] | GASKET | KOB14 (FOR M0) |
| 21. | VAME059271 | [1] | HOSE | KOBBY-PASS Superseded by part number: 134825A1 |
| 22. | VAMH020380 | [2] | CLIP | KOBHOSE 45 Superseded by part number: MH020380 |
