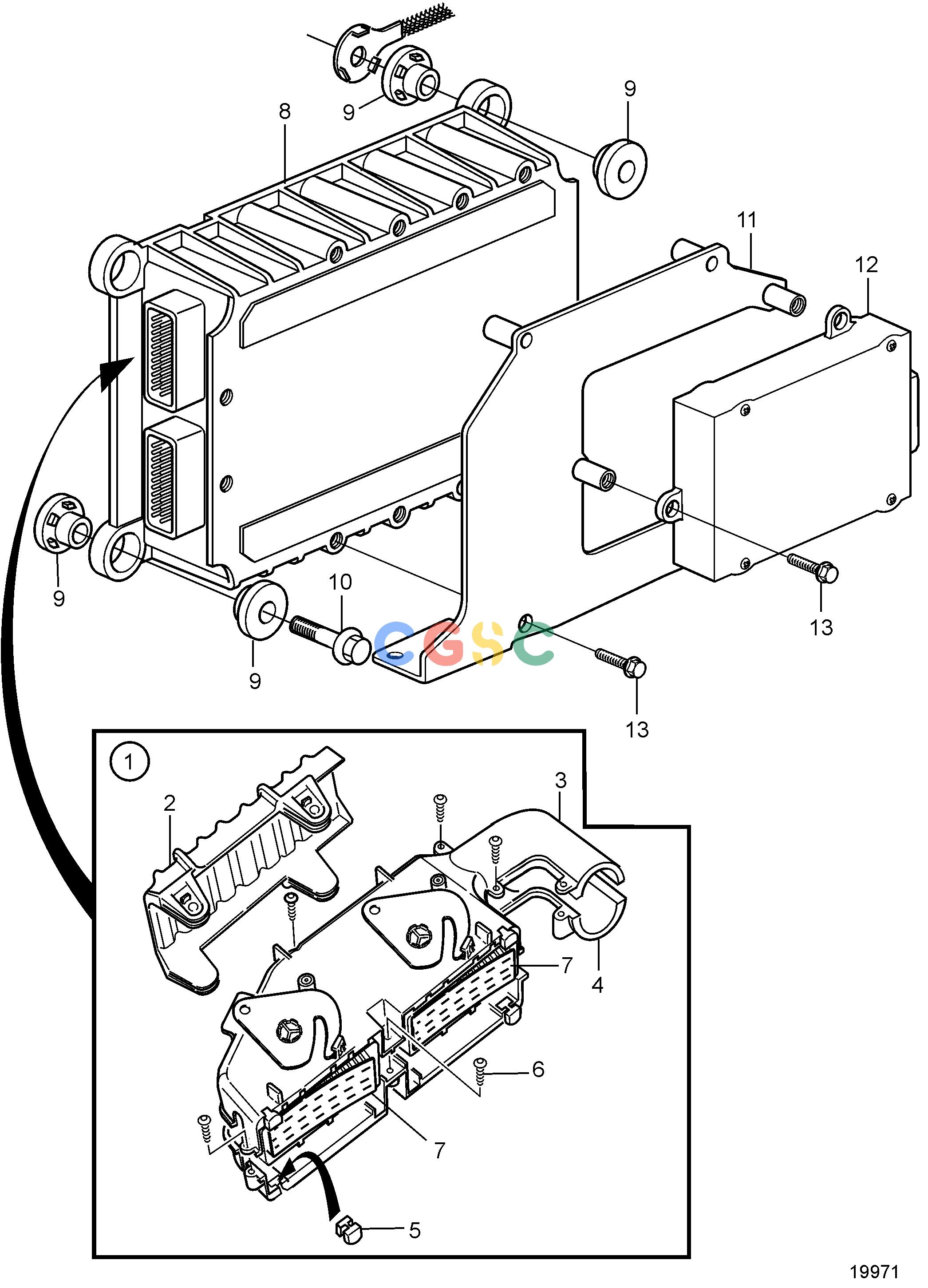

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemControl Unit and ConnectorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
721 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3199185
|
[1] |
Handle
|
|
| 3. |
3173907
|
[1] |
Cover
|
|
| 4. |
3173908
|
[1] |
Cover
|
|
| 5. |
3173913
|
[4] |
Vibration damper
|
|
| 6. |
975367
|
[5] |
Six point socket scr
|
|
| 7. |
|
|
|
|
| 8. |
20577134
|
[1] |
Control unit, not programmed
|
EDC. software ordered separately or downloaded with Vodia., Replaced by 20582963
|
| 8. |
20582963
|
[1] |
Control unit
|
|
| 8. |
3586269
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 8. |
3586268
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 9. |
3095161
|
[4] |
Rubber cushion
|
|
| 10. |
948217
|
[4] |
Flange screw
|
|
| 11. |
3836338
|
[1] |
Bracket
|
|
| 12. |
21312264
|
[1] |
Electronic unit
|
Replaced by 21350893
|
| 12. |
21350893
|
[1] |
Electronic unit
|
|
| 13. |
|
|
|
|
