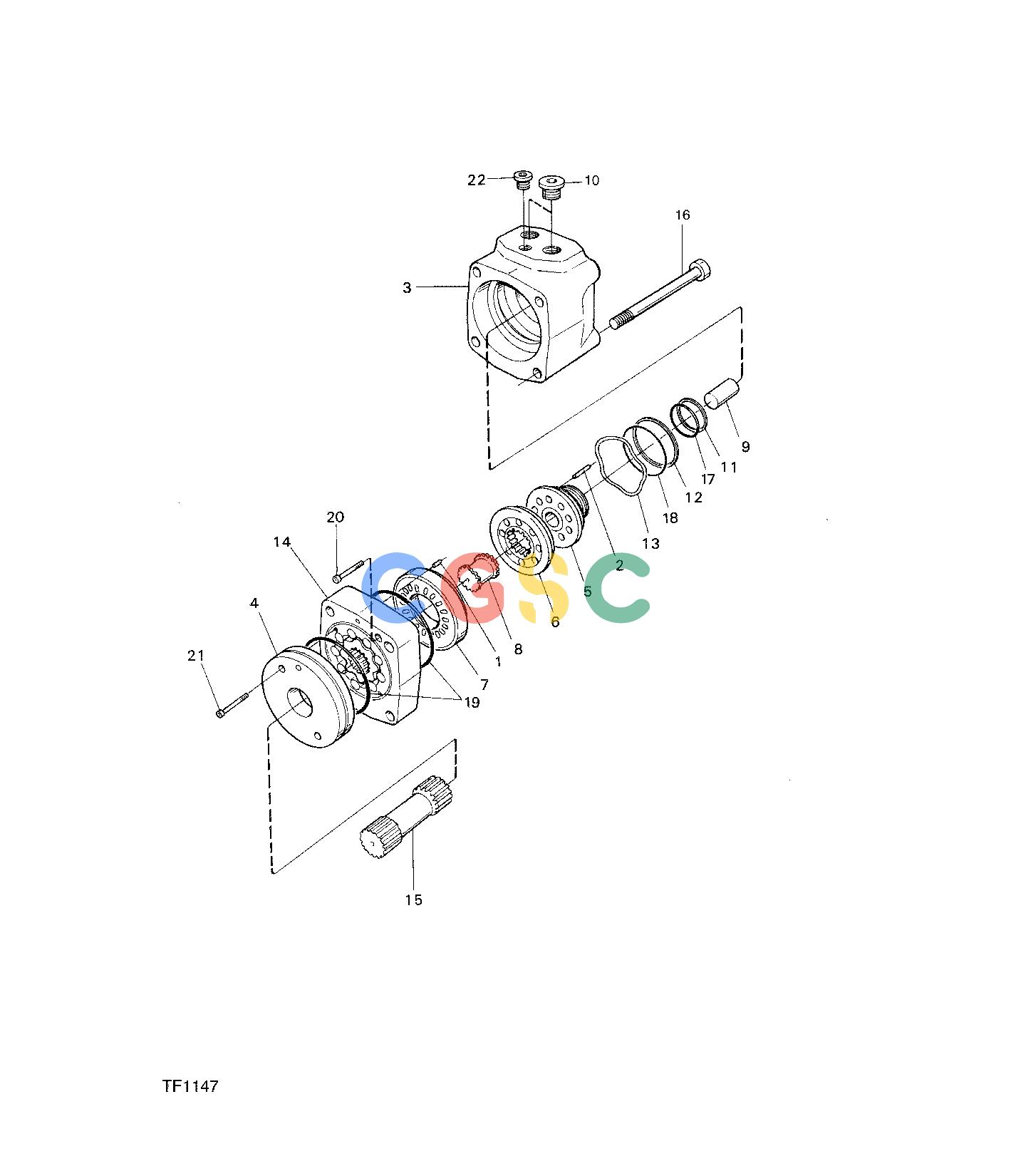

约翰迪尔零件查询743C ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR F052679 11 38 TF1147 [TF1147]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
1032 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F022655
|
[1] |
Hydraulic Motor
|
|
| 1. |
F035132
|
[1] |
GUIDING PIN
|
|
| 2. |
F035181
|
[1] |
GUIDING PIN
|
|
| 3. |
F035182
|
[1] |
VALVE HOUSING
|
|
| 4. |
F035183
|
[1] |
FLAT PIECE
|
|
| 5. |
F035137
|
[1] |
FLAT PIECE
|
|
| 6. |
F035136
|
[1] |
VALVE PLATE
|
|
| 7. |
F035134
|
[1] |
FLAT PIECE
|
|
| 8. |
F035133
|
[1] |
Guide
|
|
| 9. |
F035143
|
[1] |
Spacer
|
|
| 10. |
F035184
|
[2] |
Plug
|
|
| 11. |
F035142
|
[1] |
SUPPORT RING
|
|
| 12. |
F035140
|
[2] |
SUPPORT RING
|
|
| 13. |
F035144
|
[1] |
Spring Washer
|
|
| 14. |
F035185
|
[1] |
Gear
|
|
| 15. |
F035186
|
[1] |
Shaft
|
|
| 16. |
F035187
|
[4] |
Screw
|
|
| 17. |
F035141
|
[1] |
O-Ring
|
|
| 18. |
F035139
|
[1] |
O-Ring
|
|
| 19. |
F030646
|
[2] |
O-Ring
|
|
| 20. |
F035188
|
[2] |
Screw
|
|
| 21. |
F010726
|
[2] |
Screw
|
|
| 22. |
F035189
|
[1] |
Plug
|
|
| |
F024654
|
[1] |
Seal Kit
|
|
