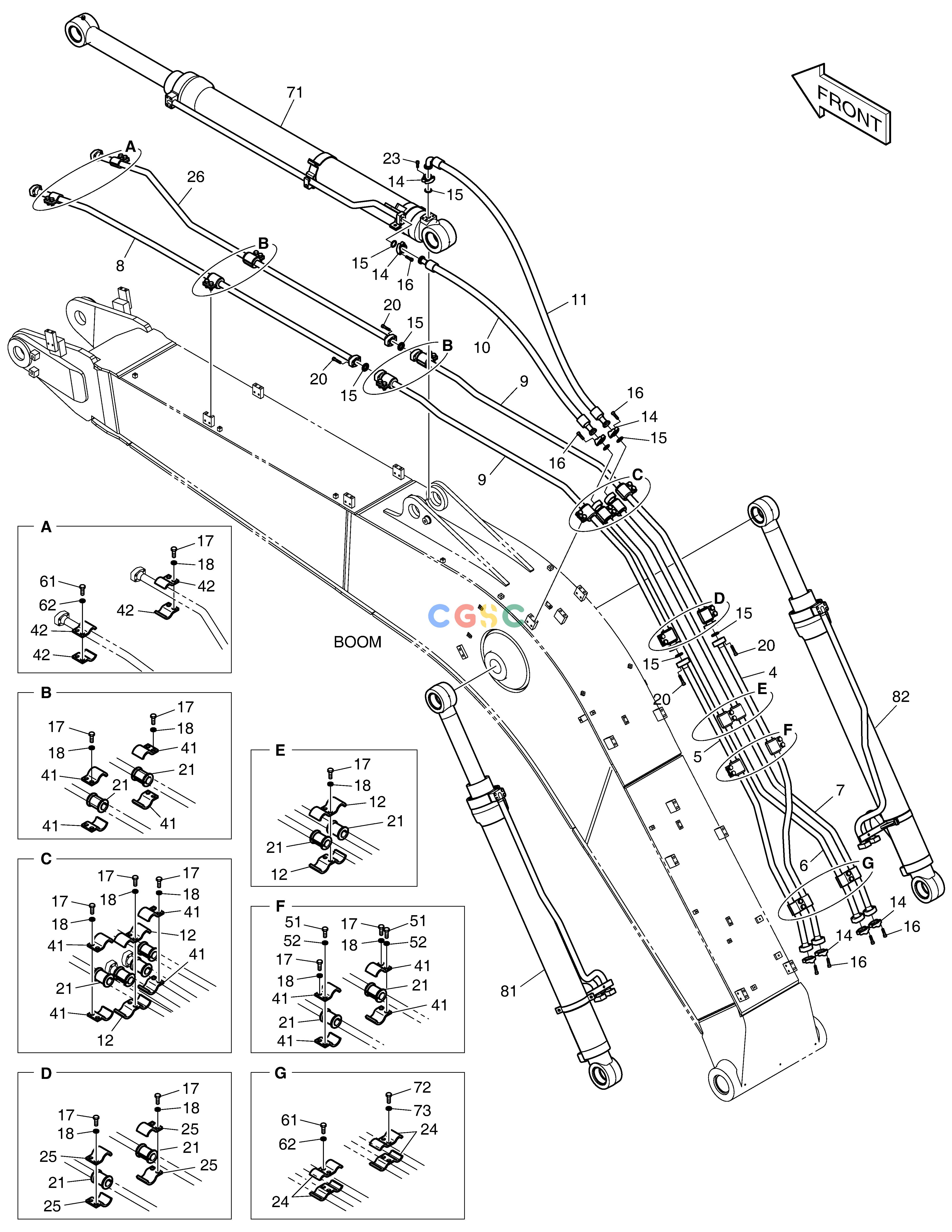

斗山零件查询BOOM PIPING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02077
|
[-] |
|
|
| 10. |
DS2038369
|
[1] |
|
|
| 11. |
DS2040968
|
[1] |
|
|
| 12. |
K1004055
|
[4] |
CLAMP;PIPE
|
|
| 14. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 15. |
2180-1026D19
|
[8] |
O-RING
|
|
| 16. |
S2212466
|
[28] |
BOLT
|
|
| 17. |
S0562766
|
[24] |
BOLT
|
|
| 18. |
120804-00080
|
[24] |
WASHER
|
|
| 20. |
S2212666
|
[16] |
BOLT;SOCKET M10X1.5X50
|
|
| 21. |
180308-00235
|
[14] |
|
|
| 23. |
S2212266
|
[4] |
BOLT
|
|
| 24. |
K1004058
|
[4] |
CLAMP;PIPE
|
|
| 25. |
K1004056
|
[4] |
CLAMP;PIPE
|
|
| 26. |
420207-00033A
|
[1] |
|
|
| 4. |
420207-00028A
|
[1] |
|
|
| 41. |
K1004056
|
[16] |
CLAMP;PIPE
|
|
| 42. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
| 5. |
420207-00029A
|
[1] |
|
|
| 51. |
S0562766
|
[2] |
BOLT
|
|
| 52. |
120804-00080
|
[2] |
WASHER
|
|
| 6. |
420207-00030A
|
[1] |
|
|
| 61. |
S0562766
|
[4] |
BOLT
|
|
| 62. |
120804-00080
|
[4] |
WASHER
|
|
| 7. |
420207-00031A
|
[1] |
|
|
| 71. |
400305-00004G
|
[1] |
|
|
| 72. |
S0562766
|
[2] |
BOLT
|
|
| 73. |
120804-00080
|
[2] |
WASHER
|
|
| 8. |
420207-00032A
|
[1] |
|
|
| 81. |
400309-00002C
|
[1] |
|
|
| 82. |
400309-00003C
|
[1] |
|
|
| 9. |
420207-00034A
|
[2] |
|
|
