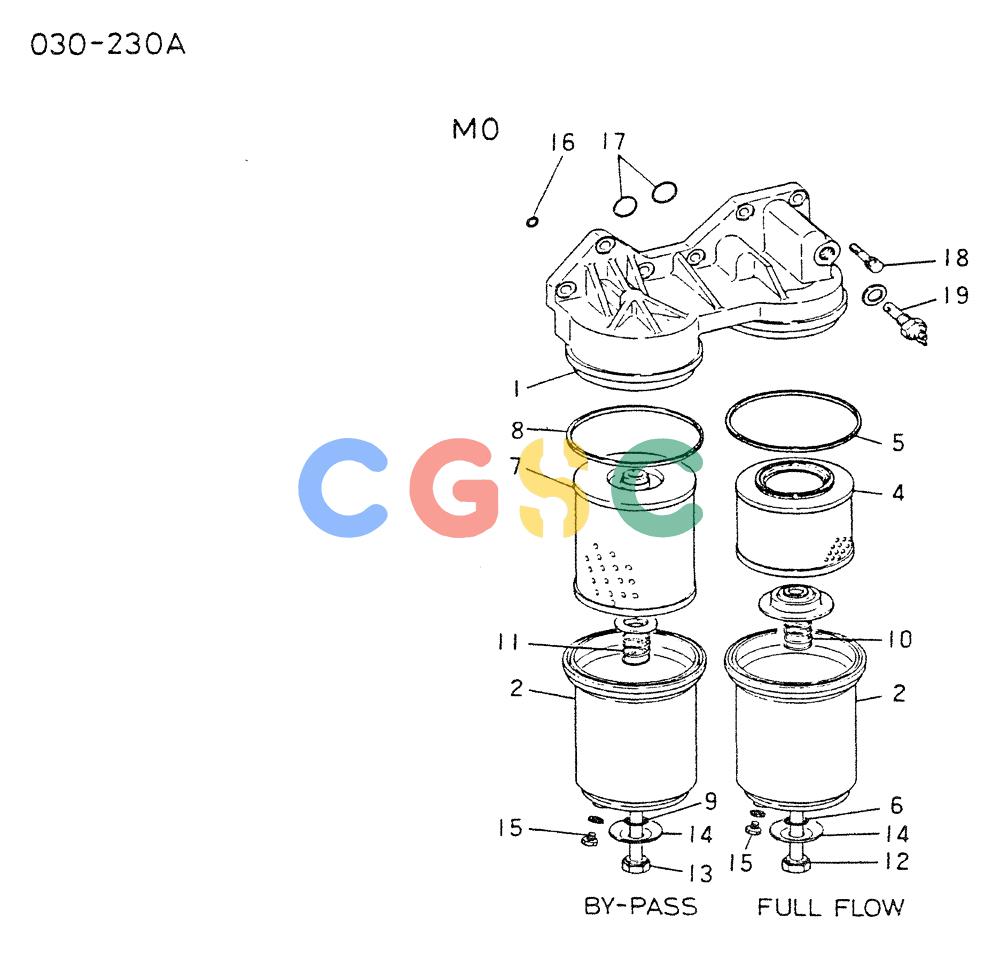

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (02-006) - OIL FILTER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
710 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | OIL FILTER(M0) | |
| . . | 6D221CZ-KS09 | [1] | OIL FILTER(M0) | |
| . . | 6D221CZ-KS07 | [1] | OIL FILTER(M0) | |
| . . | 6D221CZ-KS04 | [1] | OIL FILTER(M0) | |
| . . | 6D221CZ-KS01 | [1] | OIL FILTER(M0) | |
| . . | 6D221CT-KS03 | [1] | OIL FILTER(M0) | |
| . . | 6D221CZ-KS0A | [1] | OIL FILTER(M0) | |
| 1-15. | VAME054240 | [1] | ENGINE OIL FILTER | KOB Superseded by part number: 133254A1 |
| 1. | VA3094011101 | [1] | COVER | KOBHEAD, OIL FILTER |
| 2. | VA3124051203 | [2] | CASE | SMOIL FILTER Superseded by part number: VAME064111 |
| 4-9. | VAME054334 | [1] | ENGINE OIL FILTER | KOBOIL ELEMENT WAKO Superseded by part number: 360410A1 |
| . . | VAME064356 | [1] | ENGINE OIL FILTER | KOBOR NICHIRO Superseded by part number: 2451U180-1 |
| 4-6. | VA3124053054 | [1] | ENGINE OIL FILTER | KOBELEMENT KIT, F/FLOW Superseded by part number: 360410A1 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONELEMENT, FULL FLOW |
| 5. | VA3124050301 | [1] | GASKET | KOBRUBBER Superseded by part number: 133259A1 |
| 6. | VAMH035025 | [1] | O-RING | KOB Superseded by part number: 133268A1 |
| 7-9. | VAME054238 | [1] | ENGINE OIL FILTER | KOBELEMENT KIT,BY-PASS WAKO Superseded by part number: 2451U166-1 |
| . . | VAME064354 | [1] | ELEMENT | KOBOR NICHIRO Superseded by part number: 2451U166-1 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONELEMENT, BY-PASS |
| 8. | VA3124050301 | [1] | GASKET | KOBRUBBER Superseded by part number: 133259A1 |
| 9. | VAMH035025 | [1] | O-RING | KOB Superseded by part number: 133268A1 |
| 10. | VAME054082 | [1] | RETAINER | KOBASSY, FULL FLOW Superseded by part number: 133262A1 |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONRETAINER ASSY, BY-PASS |
| . . | VAME054156 | [1] | RETAINER | KOB Superseded by part number: 133260A1 |
| 12. | VA3124050500 | [1] | BOLT | KOBCTR, FULL FLOW |
| 13. | VA3124051500 | [1] | BOLT | KOBCTR, BY-PASS |
| 14. | VA3124053900 | [2] | WASHER | KOBCTR BOLT |
| 15. | VA3124050900 | [2] | PLUG | KOB Superseded by part number: 133271A1 |
| . . | VAMF660063 | [2] | GASKET | KOB10 Superseded by part number: VAF420210000 |
| 16. | VA3124054500 | [1] | O-RING | KOB Superseded by part number: 133272A1 |
| 17. | VA3113902201 | [2] | O-RING | KOB Superseded by part number: 133274A1 |
| 18. | VAMF303367 | [6] | BOLT | SMW/WSR 10X35 |
| . . | VAMF300849 | [1] | BOLT | KOBW/WSR 10X40 |
| 19. | VA3123654500 | [1] | FILTER ASSY | KOBALARM, OIL BY-PASS |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
