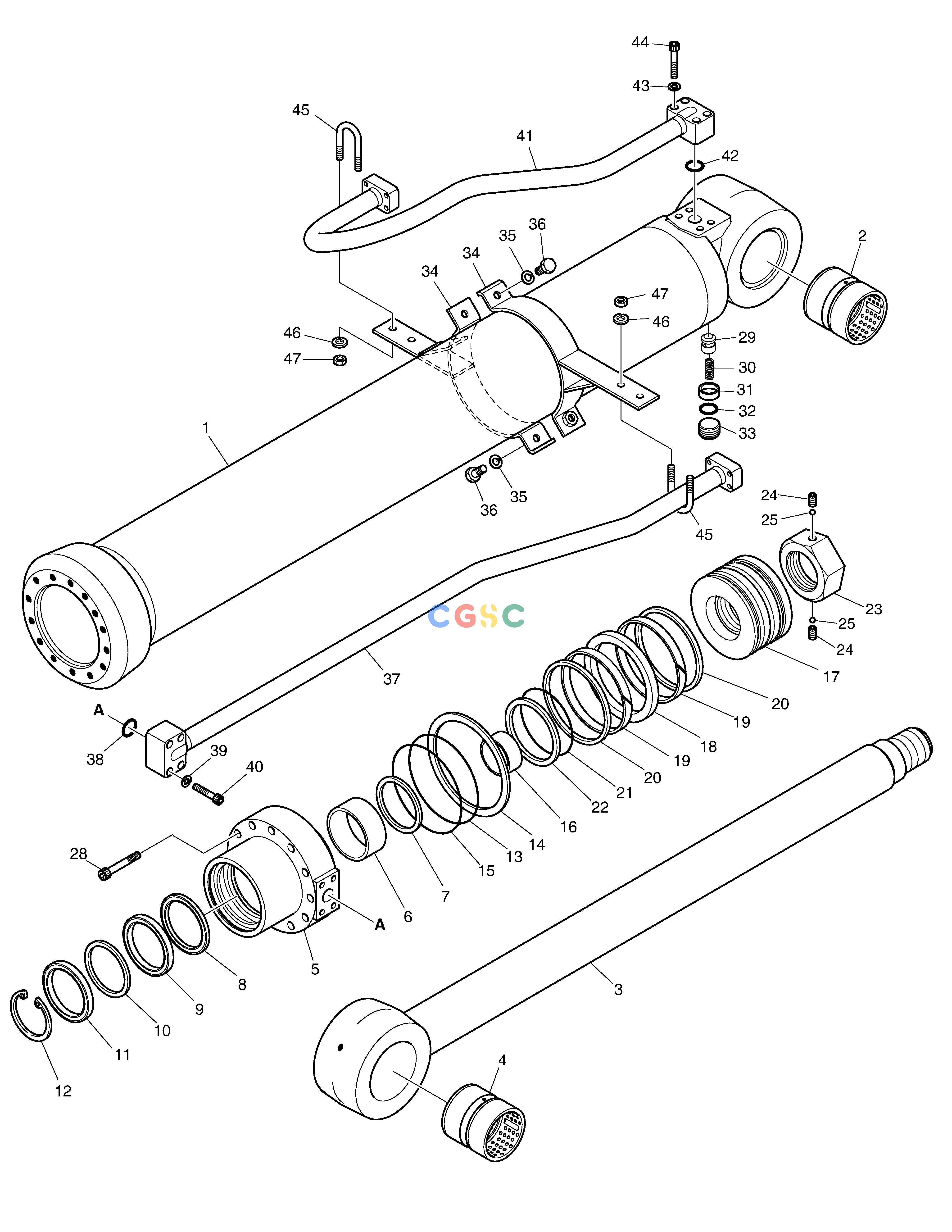

斗山零件查询ARM CYLINDER - ARTI.BOOM DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01050
|
[1] |
|
|
| -. |
400305-00156C
|
[1] |
|
|
| 1. |
420406-00653B
|
[1] |
|
|
| 10. |
111102-00128
|
[1] |
|
|
| 11. |
1.180-00489
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00090
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011451
|
[1] |
O-RING
|
|
| 14. |
K9001164
|
[1] |
RING;BACK UP
|
|
| 15. |
180-00363
|
[1] |
O-RING
|
|
| 16. |
401003-00064
|
[1] |
|
|
| 17. |
130602-00682
|
[1] |
|
|
| 18. |
K9001166
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00121
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00137
|
[1] |
|
|
| 20. |
K9001167
|
[2] |
RING;SLYD
|
|
| 21. |
S8010951
|
[1] |
O-RING
|
|
| 22. |
K9002087
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00474
|
[1] |
|
|
| 24. |
S3526408
|
[2] |
|
|
| 25. |
110202-00014
|
[2] |
|
|
| 28. |
S2225271
|
[14] |
BOLT;HEX SOCKET
|
|
| 29. |
1.420-00052
|
[1] |
VALVE;CHECK
|
|
| 3. |
400337-00306A
|
[1] |
|
|
| 30. |
129-00071
|
[1] |
SPRING
|
|
| 31. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 32. |
S8000141
|
[1] |
O-RING
|
|
| 33. |
430221-00136
|
[1] |
PLUG
|
|
| 34. |
110902-00072
|
[2] |
|
|
| 35. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 36. |
S0560563
|
[2] |
BOLT
|
|
| 37. |
420210-00680A
|
[1] |
|
|
| 38. |
S8000341
|
[1] |
O-RING
|
|
| 39. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 4. |
131004-00137
|
[1] |
|
|
| 40. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 41. |
420210-00681
|
[1] |
|
|
| 42. |
S8000341
|
[1] |
O-RING
|
|
| 43. |
S5100603
|
[4] |
WASHER
|
|
| 44. |
S2212461
|
[4] |
BOLT;SOCKET
|
|
| 45. |
K9001158
|
[2] |
U-BOLT
|
|
| 46. |
S5100603
|
[4] |
WASHER
|
|
| 47. |
S4012633
|
[4] |
NUT
|
|
| 5. |
110508-07481A
|
[1] |
|
|
| 6. |
131005-00015
|
[1] |
|
|
| 7. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00655
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00656
|
[1] |
PACKING;U
|
|
