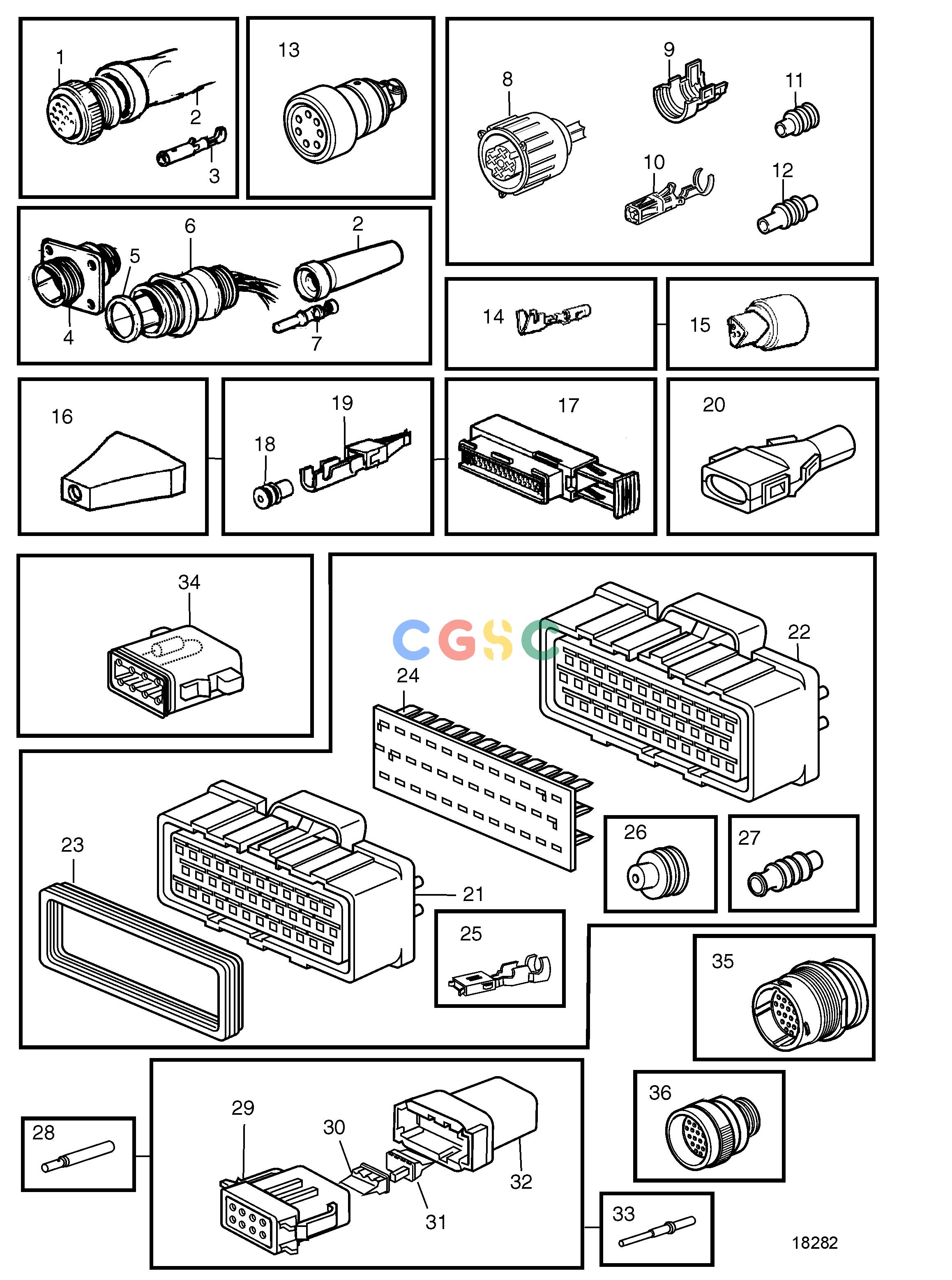

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemElectrical MaterialsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846612
|
[1] |
Housing
|
16-pole
|
| 2. |
847005
|
[1] |
Sealing collar
|
L=100mm D=20mm
|
| 3. |
849959
|
[1] |
Cable terminal
|
|
| 4. |
846611
|
[1] |
Housing
|
16-pole
|
| 5. |
846615
|
[1] |
Sealing ring
|
|
| 6. |
846647
|
[1] |
Block
|
16-pole
|
| 7. |
849958
|
[1] |
Cable terminal
|
1,6x0,5-1,5mm²
|
| 8. |
8159013
|
[1] |
Housing
|
4-pole
|
| 9. |
7740680_175
|
|
Adapter
|
|
| 10. |
8155901
|
[1] |
Cable terminal
|
|
| 11. |
8155900
|
[1] |
Cable seal
|
|
| 12. |
8155899
|
[1] |
Sealing plug
|
|
| 13. |
1618737
|
[1] |
Contact
|
7-pole
|
| 14. |
853521
|
[1] |
Cable terminal
|
|
| 15. |
853498
|
[1] |
Anode kit
|
3-pole
|
| 16. |
873632
|
[1] |
Protecting sleeve
|
|
| 17. |
9148263
|
[1] |
Housing
|
42-pole
|
| 17. |
9148135
|
[20] |
Contact
|
|
| 17. |
9148107
|
[201] |
Seal
|
|
| 17. |
970749
|
[6] |
Cable terminal
|
|
| 17. |
970773
|
[6] |
Cable seal
|
|
| 17. |
873632
|
[1] |
Protecting sleeve
|
|
| 18. |
970772
|
[1] |
Cable seal
|
1,2-2,1mm² blue
|
| 18. |
9148107
|
[1] |
Seal
|
1,4-2,0 grey
|
| 18. |
25325008
|
[1] |
Cable seal
|
2,2-3mm² white
|
| 19. |
9148135
|
[1] |
Contact
|
1,6x0,5-1mm²
|
| 19. |
970778
|
[1] |
Cable terminal
|
4,8/2,8x0,5-1mm²
|
| 19. |
970779
|
[1] |
Cable terminal
|
4,8/2,8x1,1-2,5mm²
|
| 20. |
8142100
|
[1] |
Adapter
|
|
| 21. |
977532
|
[1] |
Housing
|
24-pole black
|
| 22. |
977897
|
[1] |
Housing
|
24-polig red
|
| 23. |
|
|
|
|
| 24. |
977533
|
[1] |
Insulator retainer
|
|
| 25. |
977539
|
[1] |
Cable terminal
|
|
| 26. |
1079234
|
[1] |
Seal
|
Brown
|
| 27. |
977540
|
[1] |
Cable seal
|
Grey
|
| 28. |
874146
|
[1] |
Cable terminal
|
|
| 29. |
874142
|
[1] |
Housing
|
8-pole
|
| 30. |
874144
|
[1] |
Wedge
|
Orange
|
| 31. |
874145
|
[1] |
Wedge
|
Orange
|
| 32. |
874143
|
[1] |
Housing
|
8-pole
|
| 33. |
874147
|
[1] |
Cable terminal
|
|
| 34. |
874271
|
[1] |
Resistor, end terminator
|
|
| 35. |
874112
|
[1] |
Switch device
|
From control panel to engine. 23-pole., Use Cable Terminal 874147
|
| 36. |
874092
|
[1] |
Switch device
|
From engine to control panel. 23-pole., Use Cable Terminal 874146
|
