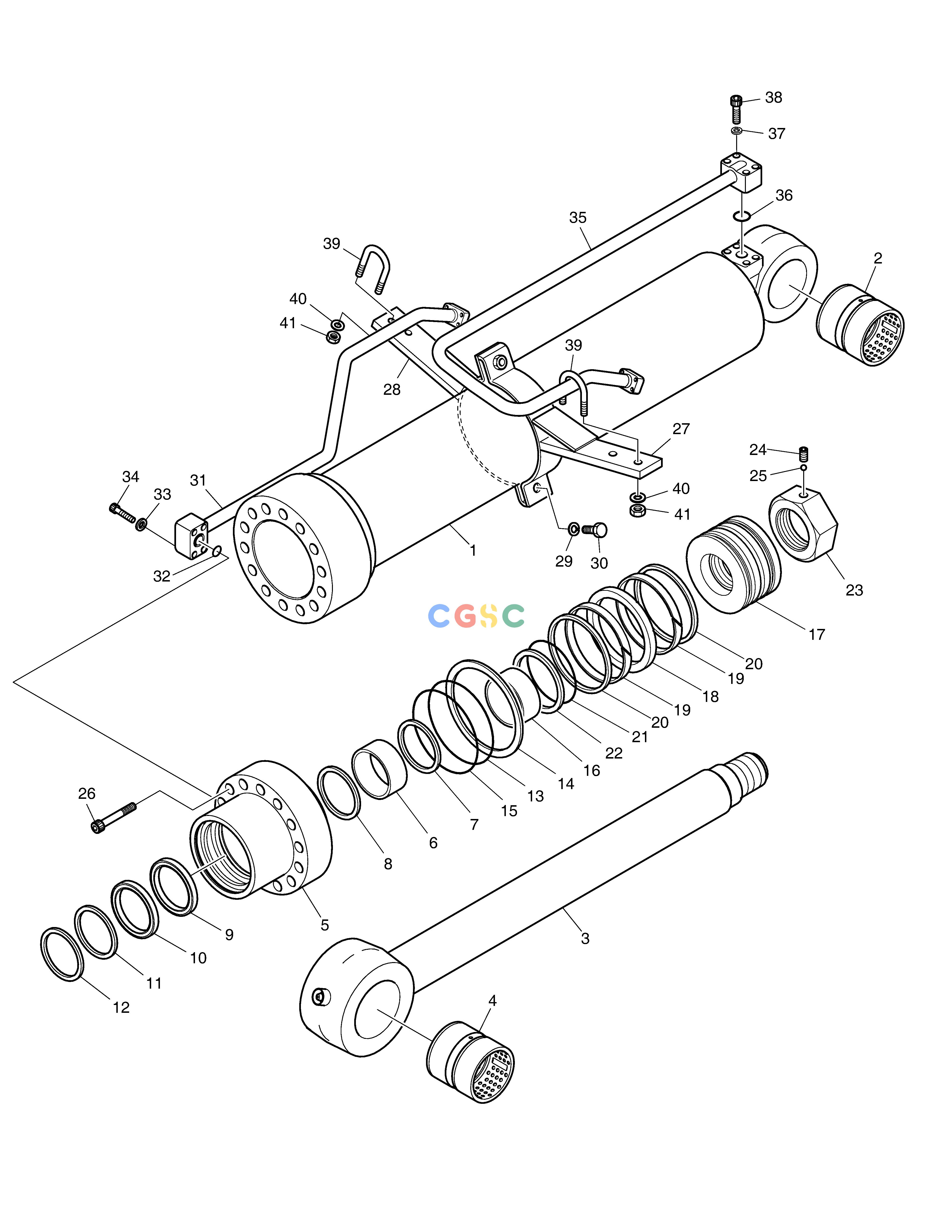

斗山零件查询ARTI. BOOM CYLINDER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00578
|
[1] |
|
|
| -. |
400306-00067A
|
[1] |
|
|
| 1. |
420402-00212A
|
[1] |
|
|
| 10. |
111102-00134
|
[1] |
|
|
| 11. |
115-00098
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00091
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011601
|
[1] |
O-RING
|
|
| 14. |
K9001953
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D150
|
[1] |
O-RING
|
|
| 16. |
K9001954
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00188
|
[1] |
|
|
| 18. |
K9002277
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00112
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00010B
|
[1] |
|
|
| 20. |
401003-00314
|
[2] |
|
|
| 21. |
S8011051
|
[1] |
O-RING
|
|
| 22. |
1.180-00630
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00053
|
[1] |
|
|
| 24. |
120706-00009
|
[1] |
|
|
| 25. |
110202-00014
|
[1] |
|
|
| 26. |
S2228261
|
[14] |
BOLT;SOCKET
|
|
| 27. |
110902-00073
|
[1] |
|
|
| 28. |
110902-00074
|
[1] |
|
|
| 29. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 3. |
400337-00311A
|
[1] |
|
|
| 30. |
S0560563
|
[2] |
BOLT
|
|
| 31. |
420210-00683
|
[1] |
|
|
| 32. |
S8000341
|
[1] |
O-RING
|
|
| 33. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 34. |
S2215961
|
[4] |
BOLT;SOCKET
|
|
| 35. |
420210-00684
|
[1] |
|
|
| 36. |
S8000341
|
[1] |
O-RING
|
|
| 37. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 38. |
S2215961
|
[4] |
BOLT;SOCKET
|
|
| 39. |
K9001158
|
[2] |
U-BOLT
|
|
| 4. |
131004-00010B
|
[1] |
|
|
| 40. |
S5100603
|
[4] |
WASHER
|
|
| 41. |
S4012633
|
[4] |
NUT
|
|
| 5. |
110508-03400A
|
[1] |
|
|
| 6. |
110-01002
|
[1] |
DD-BUSH
|
|
| 7. |
115-00090
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001950
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001951
|
[1] |
U-PACKING
|
|
