神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (02-011) - OIL LINE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
172 次

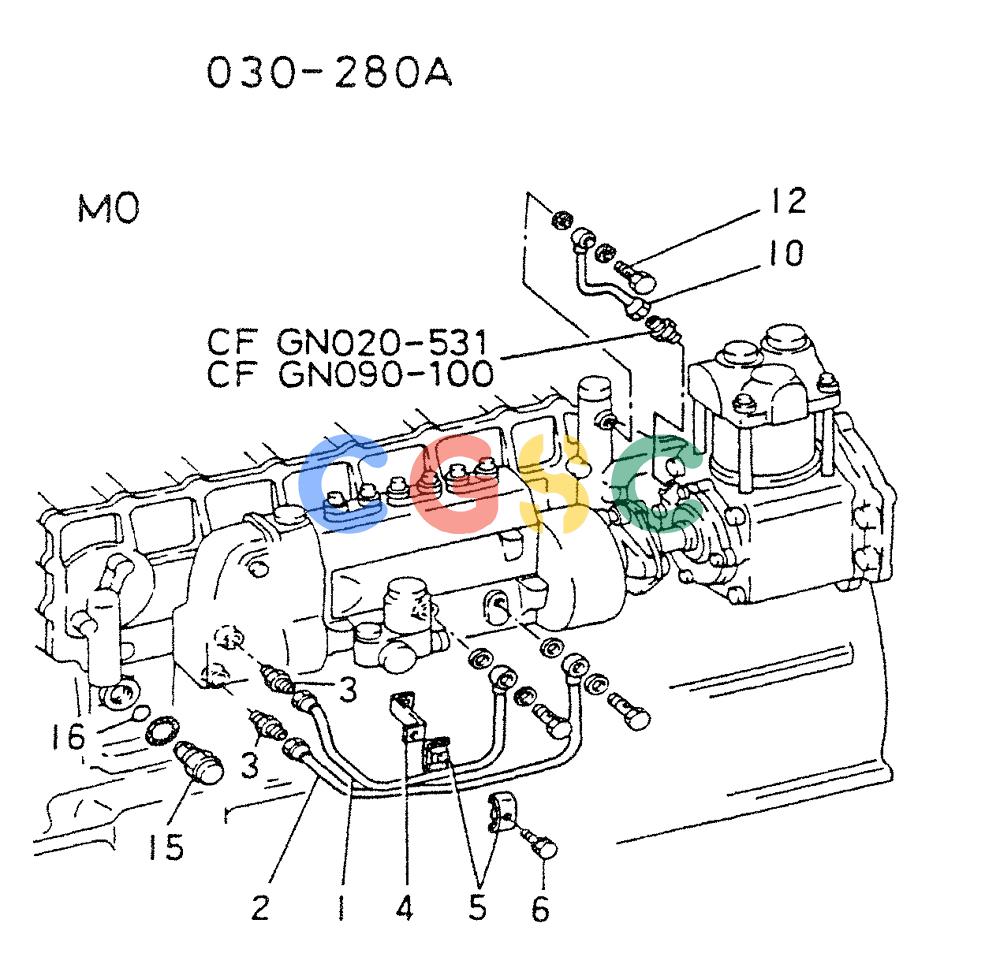

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS03 | [1] | OIL LINE(M0) | |
| . . | 6D22Z ALL | [1] | OIL LINE(M0) | |
| 1. | VA3093612300 | [1] | PIPE | KOBI/P INLET FOR AD |
| 2. | VA3093612501 | [1] | PIPE | KOBI/P OUTLET FOR AD |
| 3. | VAMH038906 | [2] | HYD CONNECTOR | KOBPT1/8-M14 Superseded by part number: 133327A1 |
| . . | VAMH023130 | [1] | STAY | STAY |
| 5. | VAMH021233 | [2] | CLAMP | KOB Superseded by part number: 133329A1 |
| 6. | VAMF240031 | [1] | WASHER | KOBW/WSR 6X30 |
| 10. | VA3093613500 | [1] | PIPE | KOBOIL, A/COMPR INLET FOR 1 CYL Superseded by part number: 133350A1 |
| 12. | VAMH037279 | [1] | BOLT | KOBEYE |
| . . | VAMF660063 | [2] | GASKET | KOB10 Superseded by part number: VAF420210000 |
| 15. | VAME034545 | [1] | INTAKE VALVE GUIDE | KOBREGULATING ASSY Superseded by part number: VAME074455 |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 16. | VAMH035129 | [1] | O-RING | KOB |
