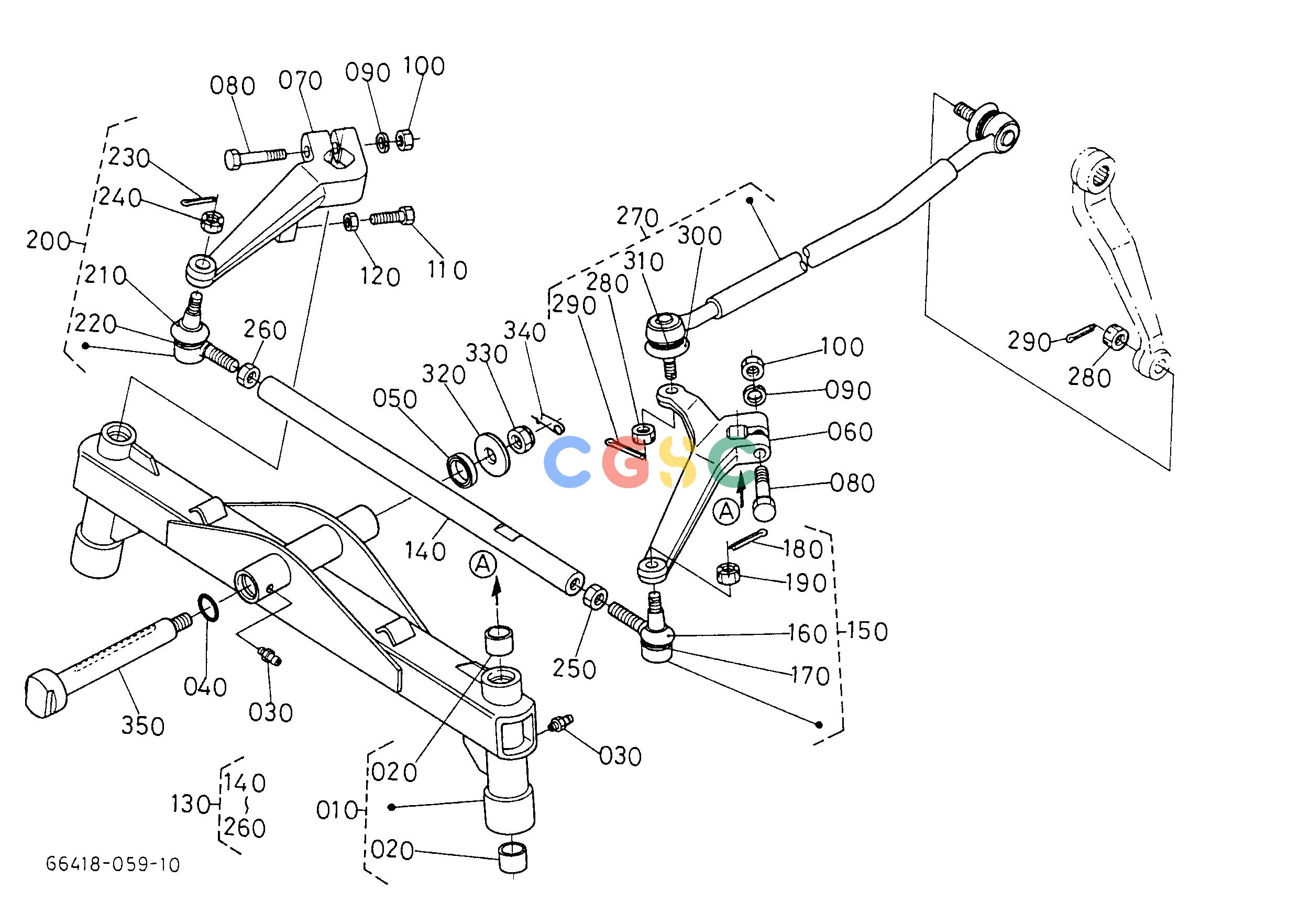

久保田零件查询T08400 FRONT AXLE/KNUCKLE ARM FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6751156110
|
[1] |
COMP.AXLE FRONT
|
24.2000(lbs); 11.000
|
| 020. |
3415028430
|
[4] |
BUSH
|
0.0880(lbs); 0.040
|
| 030. |
0661310675
|
[4] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 040. |
0481110250
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0923025355
|
[1] |
SEAL OIL
|
0.0110(lbs); 0.005
|
| 060. |
6780056410
|
[1] |
ARM KNUCKLE LH
|
3.4980(lbs); 1.590
|
| 070. |
6780056420
|
[1] |
ARM KNUCKLE RH
|
2.4860(lbs); 1.130
|
| 080. |
0117351060
|
[2] |
BOLT
|
0.0836(lbs); 0.038
|
| 090. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
6659156440
|
[2] |
BOLT ADJUSTING
|
0.0440(lbs); 0.020
|
| 120. |
0211250100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 130. |
6781056502
|
[1] |
ASSY ROD TIE
|
4.7080(lbs); 2.140
|
| 140. |
6781056512
|
[1] |
ROD TIE
|
3.3000(lbs); 1.500
|
| 150. |
3844044790
|
[1] |
ASSY END TIE ROD LH
|
0.7040(lbs); 0.320
|
| 160. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 170. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 180. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 190. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 200. |
3844044780
|
[1] |
ASSY END TIE ROD RH
|
0.7084(lbs); 0.322
|
| 200. |
H384044700
|
[1] |
END,ROD,ASSY
|
0.7084(lbs); 0.322
|
| 210. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 220. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 230. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 240. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 250. |
3224012280
|
[1] |
NUT
|
0.0374(lbs); 0.017
|
| 260. |
0217450160
|
[1] |
NUT
|
0.0484(lbs); 0.022
|
| 270. |
6641856900
|
[1] |
COMP.LINK DRAG
|
4.7080(lbs); 2.140
|
| 280. |
3824012830
|
[2] |
NUT
|
0.0176(lbs); 0.008
|
| 290. |
0551150325
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 300. |
3824012650
|
[4] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 310. |
3824012660
|
[4] |
CLIP
|
0.0110(lbs); 0.005
|
| 320. |
6780051240
|
[1] |
WASHER
|
0.1320(lbs); 0.060
|
| 330. |
0237250180
|
[1] |
NUT
|
0.0418(lbs); 0.019
|
| 340. |
6661157150
|
[1] |
SPRING SET
|
0.0440(lbs); 0.020
|
| 350. |
6780056140
|
[1] |
PIN CENTER
|
1.7820(lbs); 0.810
|
