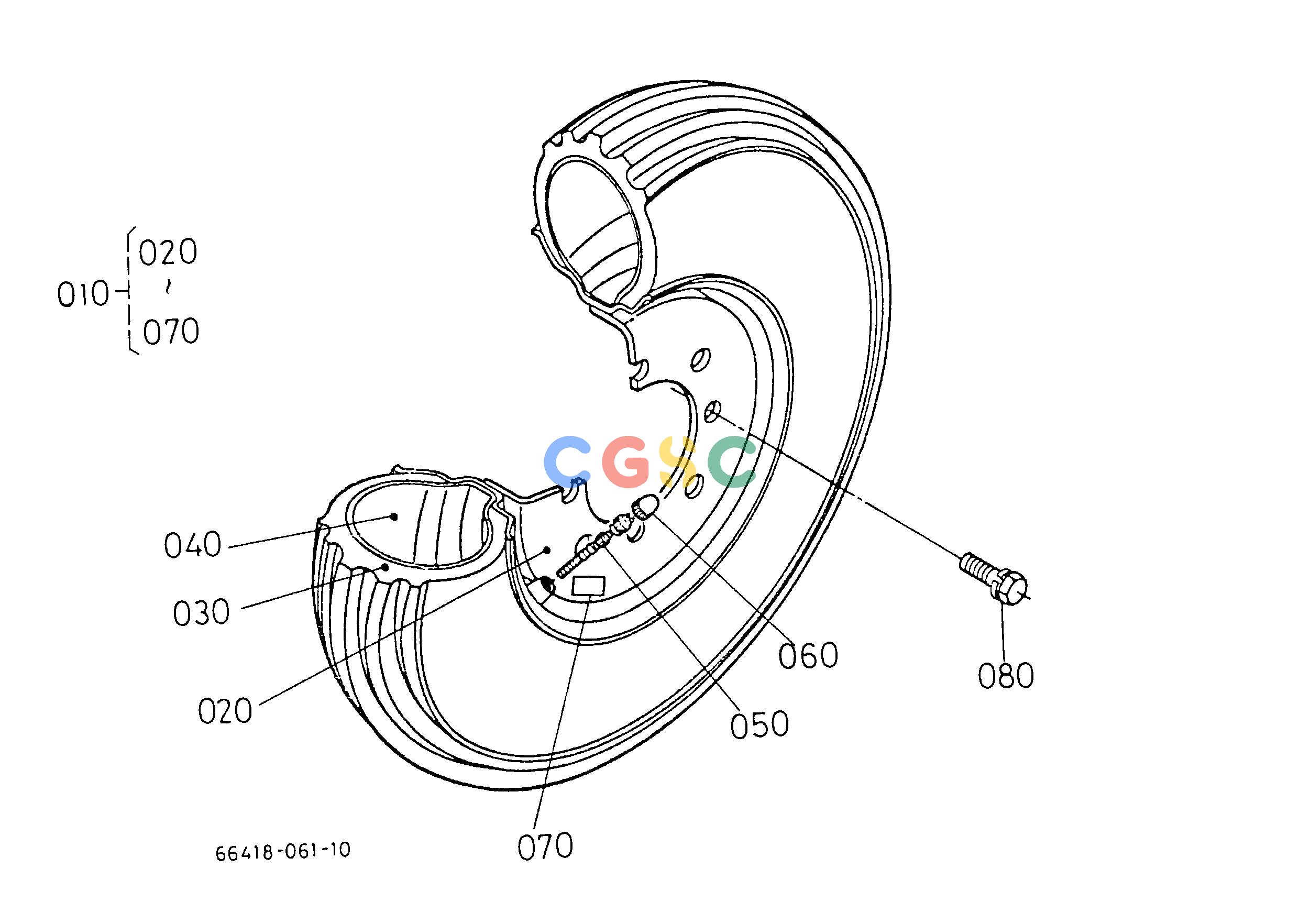

久保田零件查询T08601 FRONT WHEEL (4.00-12) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
345 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641957470
|
[2] |
ASSY TIRE FRONT
|
20.2400(lbs); 9.200
|
| 020. |
6641957480
|
[2] |
WHEEL
|
11.0000(lbs); 5.000
|
| 030. |
3215011620
|
[2] |
TIRE
|
8.3600(lbs); 3.800
|
| 040. |
3215011630
|
[2] |
TUBE
|
0.9900(lbs); 0.450
|
| 050. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 070. |
6641957490
|
[2] |
LABEL
|
0.0022(lbs); 0.001
|
| 080. |
0113351225
|
[12] |
BOLT
|
0.0770(lbs); 0.035
|
