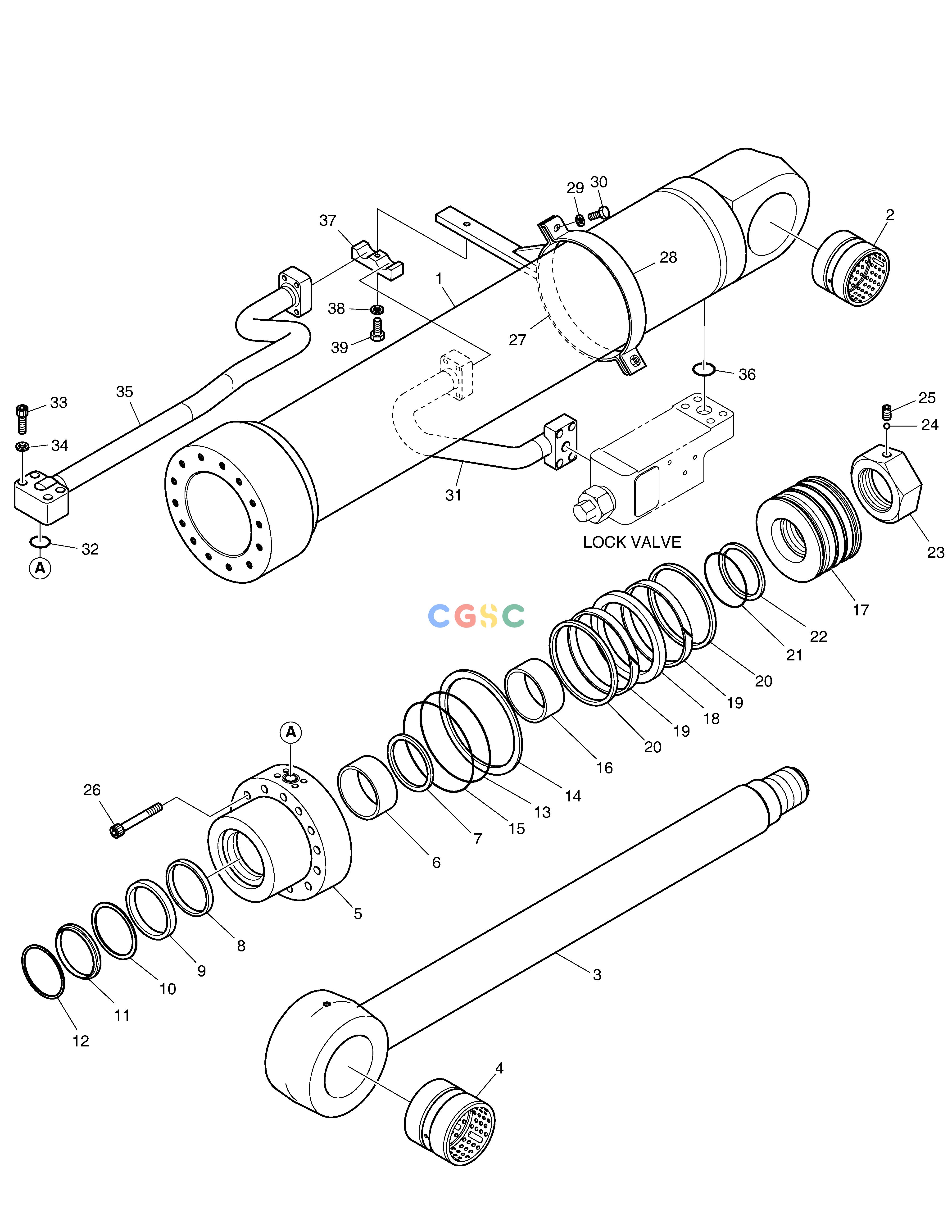

斗山零件查询BOOM CYLINDER(L.H)-LOCK VALVE DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01046
|
[1] |
|
|
| -. |
400309-00006C
|
[1] |
|
|
| 1. |
420402-00207A
|
[1] |
|
|
| 10. |
111102-00145
|
[1] |
|
|
| 11. |
115-00099
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011351
|
[1] |
O-RING
|
|
| 14. |
1.180-00662
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1217D96
|
[1] |
O-RING
|
|
| 16. |
1.411-00002
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00221
|
[1] |
|
|
| 18. |
K9001148
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00079
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00007B
|
[1] |
|
|
| 20. |
K9001149
|
[2] |
RING;DUST
|
|
| 21. |
S8010851
|
[1] |
O-RING
|
|
| 22. |
K9001168
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00077
|
[1] |
|
|
| 24. |
110202-00014
|
[1] |
|
|
| 25. |
120706-00009
|
[1] |
|
|
| 26. |
S2222272
|
[14] |
BOLT;SOCKET
|
|
| 27. |
124-00159
|
[1] |
PIPE BAND ASS'Y
|
|
| 28. |
124-00108
|
[1] |
BAND;PIPE
|
|
| 29. |
S5100603
|
[2] |
WASHER
|
|
| 3. |
400337-00305A
|
[1] |
|
|
| 30. |
S0558153
|
[2] |
BOLT
|
|
| 31. |
420210-00651
|
[1] |
|
|
| 32. |
S8000341
|
[1] |
O-RING
|
|
| 33. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 34. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 35. |
420210-00642
|
[1] |
|
|
| 36. |
S8000341
|
[1] |
O-RING
|
|
| 37. |
124-00158
|
[1] |
CLAMP;PIPE
|
|
| 38. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 39. |
S0561053
|
[1] |
BOLT
|
|
| 4. |
131004-00001B
|
[1] |
|
|
| 5. |
1.442-00006A
|
[1] |
|
|
| 6. |
K9009860
|
[1] |
DD-BUSH
|
|
| 7. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00659
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00660
|
[1] |
U-PACKING
|
|
