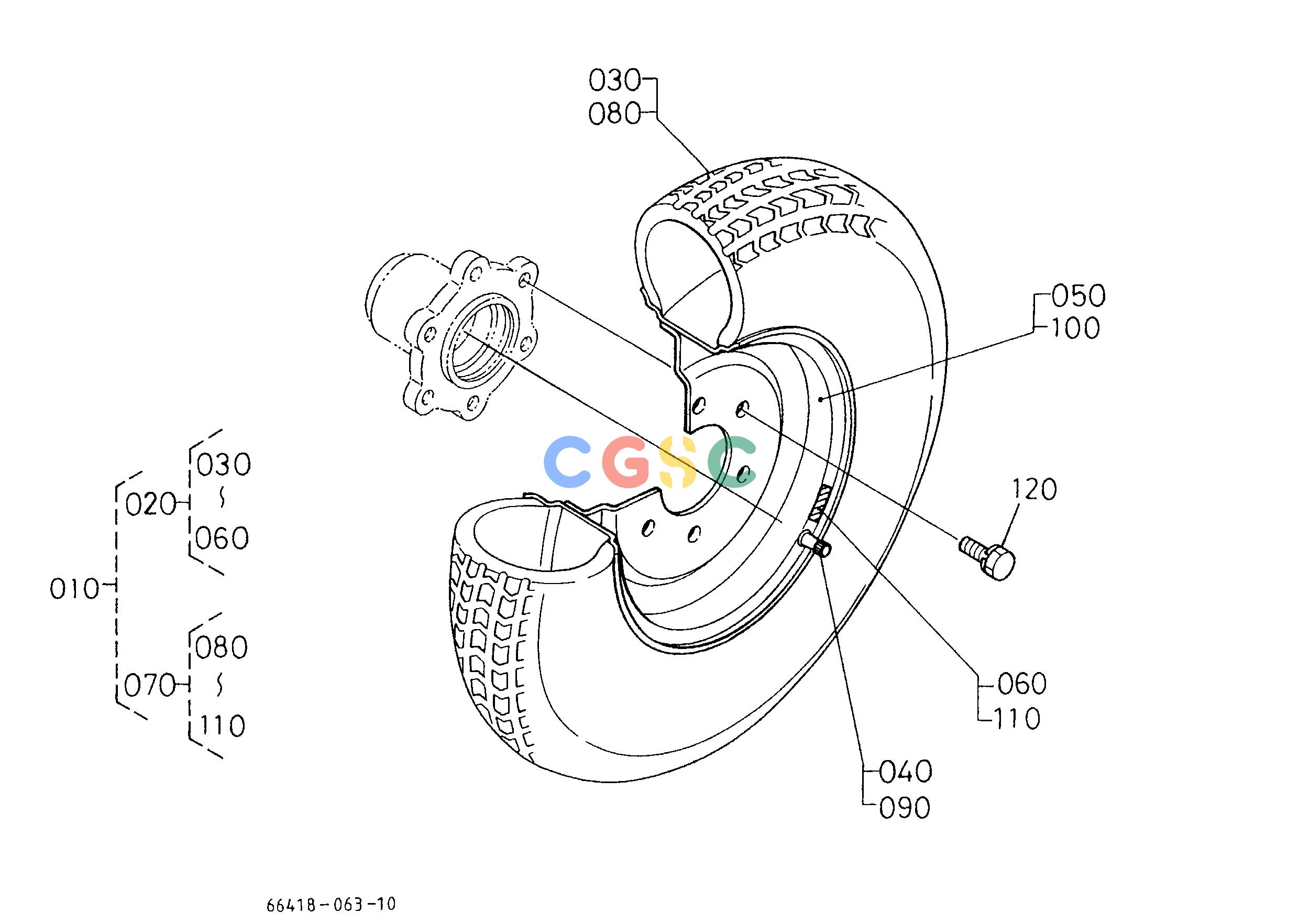

久保田零件查询T08603 FRONT WHEEL (23 X 8.50-12) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641957500
|
[1] |
ASSY FRONT WHEEL
|
70.4000(lbs); 32.000
|
| 020. |
6641957510
|
[1] |
ASSY FRONT WHEEL LH
|
35.2000(lbs); 16.000
|
| 030. |
3526011810
|
[1] |
TIRE
|
15.6640(lbs); 7.120
|
| 040. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 050. |
6641857560
|
[1] |
ASSY WHEEL
|
17.6000(lbs); 8.000
|
| 050. |
3271157420
|
[1] |
WHEEL
|
17.6000(lbs); 8.000
|
| 060. |
6641957580
|
[1] |
LABEL TIRE LH
|
0.0022(lbs); 0.001
|
| 070. |
6741957570
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 080. |
3526011810
|
[1] |
TIRE
|
15.6640(lbs); 7.120
|
| 090. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 100. |
6641857560
|
[1] |
ASSY WHEEL
|
17.6000(lbs); 8.000
|
| 100. |
3271157420
|
[1] |
WHEEL
|
17.6000(lbs); 8.000
|
| 110. |
6641957590
|
[1] |
LABEL TIRE RH
|
0.0044(lbs); 0.002
|
| 120. |
0113351225
|
[12] |
BOLT
|
0.0770(lbs); 0.035
|
