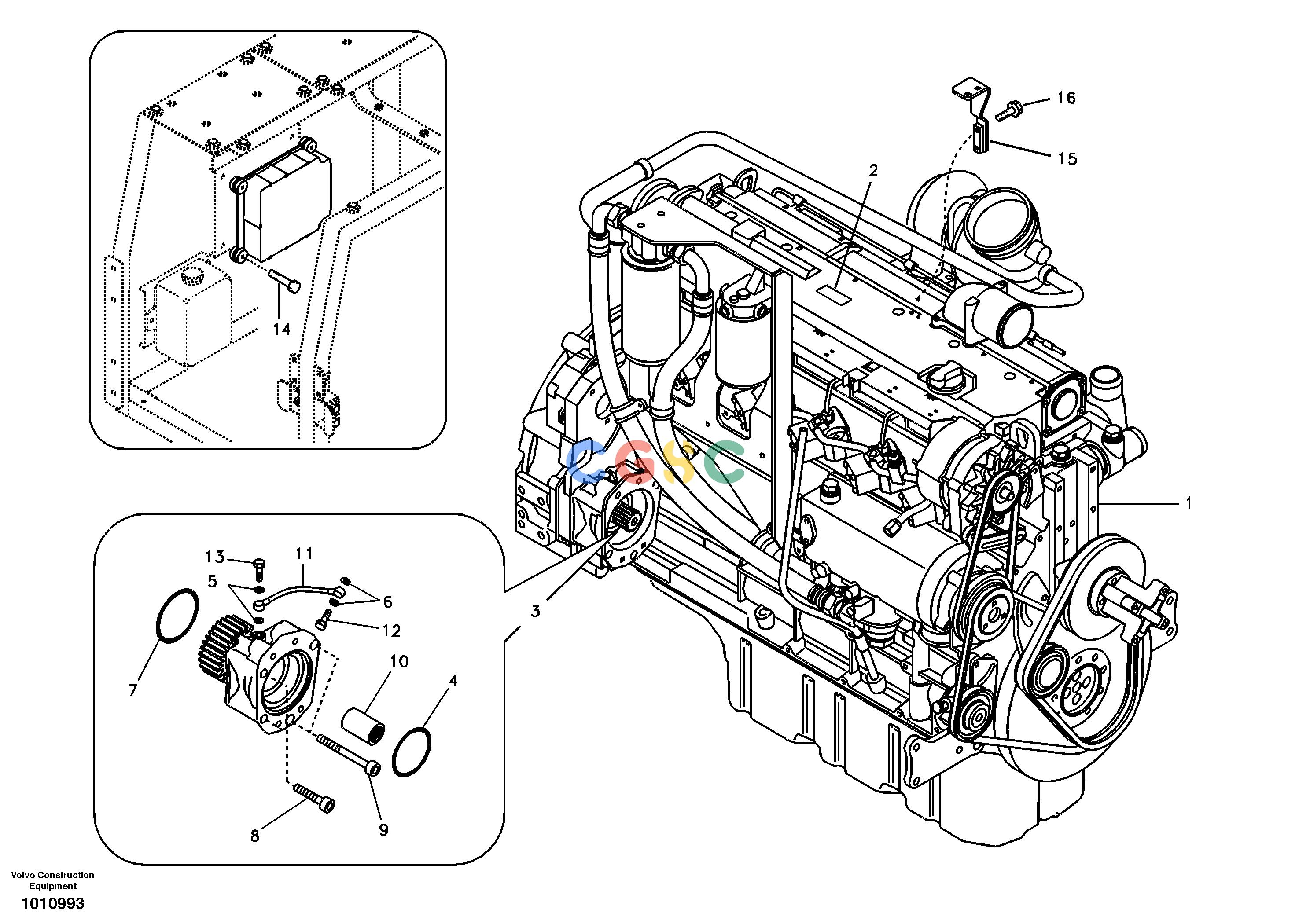

沃尔沃零件查询EC240B EngineNone8277587 S/N -10813-8278909 S/N 10814-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
316 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14500387
|
[1] |
Engine
|
SER NO 10001-10813
|
| |
VOE14500387
|
|
Engine
|
SER NO 10814-
SER NO 30001-
|
| |
VOE14519201
|
|
Engine
|
SER NO 10814-
SER NO 30001-
|
| |
VOE14519202
|
|
Engine
|
SER NO 10814-
SER NO 30001-
|
| 2. |
VOE14511115
|
[1] |
Decal
|
SER NO 10001-10085
|
| 3. |
VOE20478271
|
|
Power take-off
|
|
| 4. |
VOE20450819
|
|
O-ring
|
|
| 5. |
VOE13947281
|
|
Gasket
|
|
| 6. |
VOE13947621
|
|
Plane gasket
|
|
| 7. |
VOE20450818
|
|
O-ring
|
|
| 8. |
VOE20450820
|
|
Screw
|
|
| 9. |
VOE22316512
|
|
Six point screw
|
|
| 10. |
VOE20459123
|
|
Sleeve
|
|
| 11. |
VOE20450980
|
|
Oil line
|
|
| 12. |
VOE60113509
|
|
Hollow screw
|
|
| 13. |
VOE980973
|
|
Hollow screw
|
|
| 14. |
VOE983245
|
[4] |
Hexagon screw
|
|
| 15. |
VOE14516943
|
|
Bracket
|
SER NO 10852-10871
|
| |
VOE14521814
|
|
Bracket
|
SER NO 10872-
SER NO 30001-
|
| 16. |
VOE60113082
|
|
Flange screw
|
SER NO 10852-
SER NO 30001-
|
