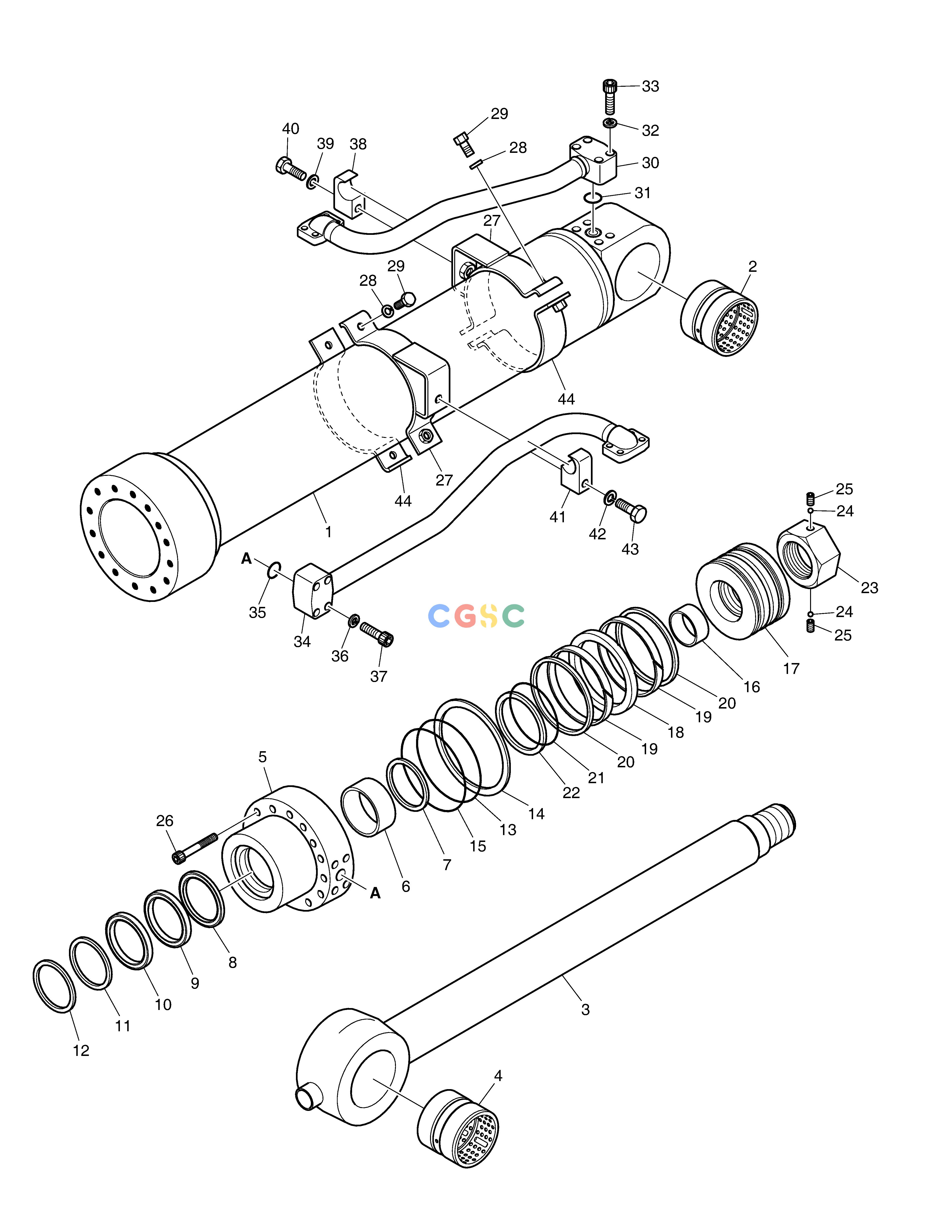

斗山零件查询BUCKET CYLINDER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01047
|
[1] |
|
|
| -. |
400310-00002G
|
[1] |
|
|
| 1. |
420402-00379
|
[1] |
|
|
| 10. |
K9001154
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00072
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00073
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011301
|
[1] |
O-RING
|
|
| 14. |
K9003891
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011351
|
[1] |
O-RING
|
|
| 16. |
1.411-00003
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00683
|
[1] |
|
|
| 18. |
K9004900
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00426
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00004B
|
[1] |
|
|
| 20. |
K9003890
|
[2] |
RING;DUST
|
|
| 21. |
S8010801
|
[1] |
O-RING
|
|
| 22. |
K9001895
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00454
|
[1] |
|
|
| 24. |
110202-00014
|
[2] |
|
|
| 25. |
S3526408
|
[2] |
|
|
| 26. |
S2222272
|
[14] |
BOLT;SOCKET
|
|
| 27. |
110902-00065
|
[2] |
|
|
| 28. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 29. |
S0560563
|
[4] |
BOLT
|
|
| 3. |
400337-00307A
|
[1] |
|
|
| 30. |
420210-00645
|
[1] |
|
|
| 31. |
S8000341
|
[1] |
O-RING
|
|
| 32. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 33. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 34. |
420210-00646
|
[1] |
|
|
| 35. |
S8000341
|
[1] |
O-RING
|
|
| 36. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 37. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 38. |
K9001159
|
[1] |
CLAMP;PIPE
|
|
| 39. |
S5102903
|
[1] |
WASHER
|
|
| 4. |
131004-00004B
|
[1] |
|
|
| 40. |
S0521853
|
[1] |
BOLT
|
|
| 41. |
K9001159
|
[1] |
CLAMP;PIPE
|
|
| 42. |
S5102903
|
[1] |
WASHER
|
|
| 43. |
S0521853
|
[1] |
BOLT
|
|
| 44. |
110902-00067
|
[2] |
|
|
| 5. |
110508-07482
|
[1] |
|
|
| 6. |
K9009859
|
[1] |
DD-BUSH
|
|
| 7. |
115-00063
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00657
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001153
|
[1] |
U-PACKING
|
|
