沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemElectrical Materials, Instrument EVC-CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
435 次

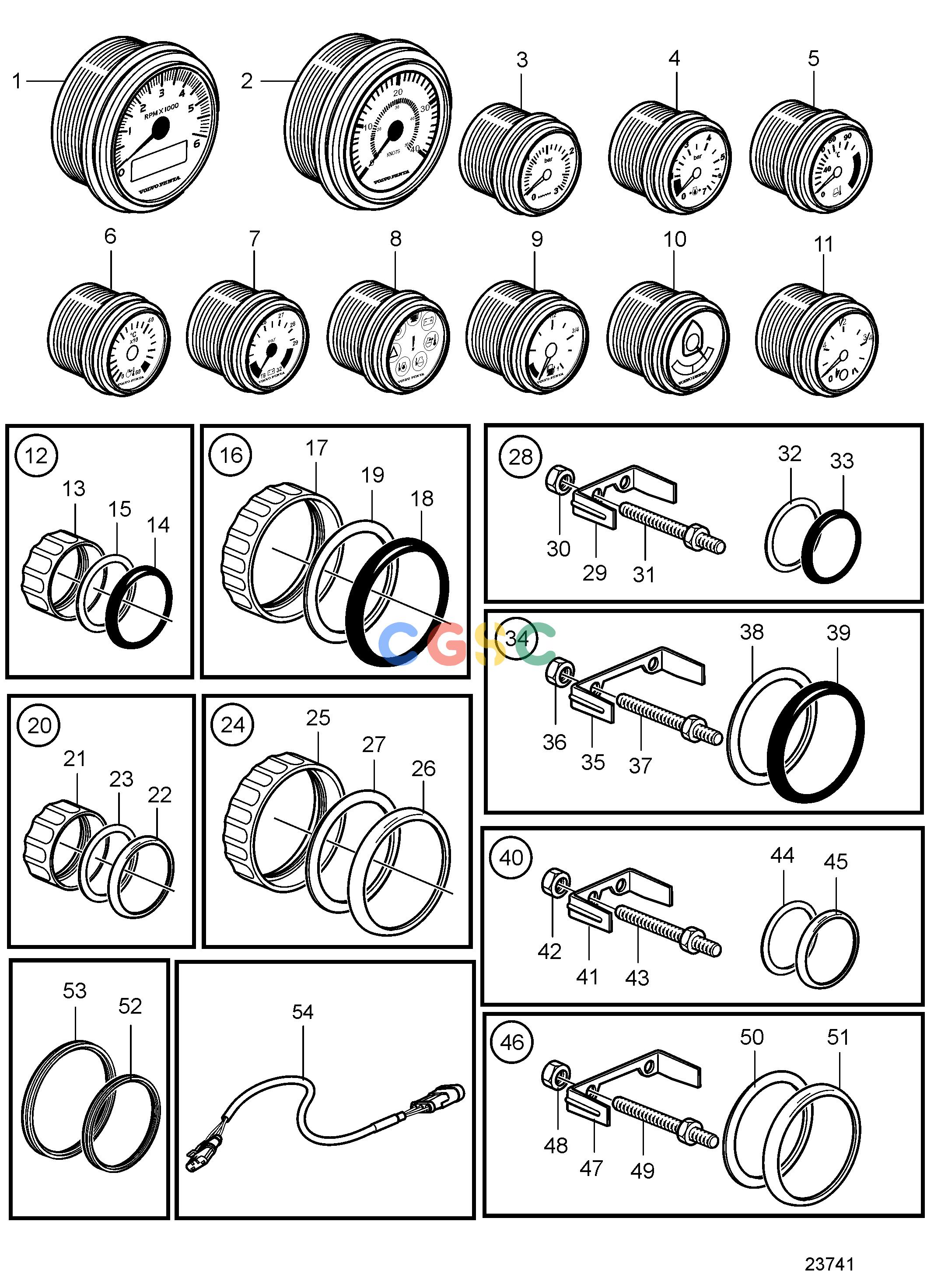

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3885694
|
[1] |
Tachometer
|
Black
|
| 1. |
3885695
|
[1] |
Tachometer
|
White
|
| 2. |
874916
|
[1] |
Speedometer
|
Black 0-20 knots
|
| 2. |
874929
|
[1] |
Speedometer
|
White 0-20 Knots
|
| 2. |
874917
|
[1] |
Speedometer
|
Black 0-40 knots
|
| 2. |
874930
|
[1] |
Speedometer
|
White 0-40 Knots
|
| 2. |
3807508
|
[1] |
Speedometer
|
Black, 0-40 mph
|
| 2. |
3807512
|
[1] |
Speedometer
|
White, 0-40 mph
|
| 3. |
874910
|
[1] |
Turbo pressure gauge
|
Black 0-3 bar
|
| 3. |
874924
|
[1] |
Turbo pressure gauge
|
White 0-3 bar
|
| 3. |
874920
|
[1] |
Turbo pressure gauge
|
Black 0-45 psi
|
| 3. |
874933
|
[1] |
Turbo pressure gauge
|
White 0-45 psi
|
| 3. |
874911
|
[1] |
Pressure gauge, freshwater
|
Black 0-3 bar
|
| 3. |
874912
|
[1] |
Pressure gauge, sea water
|
Black 0-3 bar
|
| 4. |
874908
|
[1] |
Oil pressure gauge, engine
|
Black 0-7 bar
|
| 4. |
874923
|
[1] |
Oil pressure gauge, engine
|
White 0-7 bar
|
| 4. |
874919
|
[1] |
Oil pressure gauge, engine
|
Black 0-100 psi
|
| 4. |
874932
|
[1] |
Oil pressure gauge, engine
|
White 0-100 psi
|
| 4. |
874909
|
[1] |
Oil pressure gauge, reverseing gear
|
Black 0-25 bar
|
| 4. |
874950
|
[1] |
Oil pressure gauge, reverseing gear
|
White 0-25 bar
|
| 4. |
874951
|
[1] |
Oil pressure gauge, reverseing gear
|
Black 0-350 psi
|
| 4. |
874952
|
[1] |
Oil pressure gauge, reverseing gear
|
White 0-350 psi
|
| 5. |
874904
|
[1] |
Thermometer, coolant water
|
Black 0-120°C
|
| 5. |
874921
|
[1] |
Thermometer, coolant water
|
White 0-120°C
|
| 5. |
874918
|
[1] |
Thermometer, coolant water
|
Black 40-250 °F
|
| 5. |
874931
|
[1] |
Thermometer, coolant water
|
White 40-250 °F
|
| 5. |
874905
|
[1] |
Thermometer, oil-engine
|
Black 0-150°C
|
| 5. |
874922
|
[1] |
Temperature gauge, oil-engine
|
White 0-150°C
|
| 5. |
881857
|
[1] |
Thermometer, oil-engine
|
Black 40-300 °F
|
| 5. |
881858
|
[1] |
Thermometer, oil-engine
|
White 40-300 °F
|
| 5. |
874906
|
[1] |
Thermometer, reverseing gear
|
Black 0-120°C
|
| 6. |
874907
|
[1] |
Thermometer, exhaust temp
|
Black 0-600°C
|
| 7. |
874913
|
[1] |
Voltmeter
|
Black
|
| 7. |
874925
|
[1] |
Voltmeter
|
White
|
| 8. |
874915
|
[1] |
Instrument, alarm
|
Black
|
| 8. |
874927
|
[1] |
Instrument, alarm
|
White
|
| 9. |
874914
|
[1] |
Fuel gauge
|
Black
|
| 9. |
874926
|
[1] |
Fuel gauge
|
White
|
| 10. |
3812914
|
[1] |
Rudder indicator
|
Black
|
| 10. |
3812917
|
[1] |
Rudder indicator
|
White
|
| 11. |
3809992
|
[1] |
Water level gauge
|
Black, Water level gauge
|
| 11. |
3809993
|
[1] |
Water level gauge
|
White, Water level gauge
|
| 12. |
874709
|
[1] |
Mounting kit
|
Black D=52mm
|
| 13. |
874450
|
[1] |
Attaching ring
|
|
| 14. |
874448
|
[1] |
Ring
|
|
| 15. |
874707
|
[1] |
Gasket
|
|
| 16. |
874708
|
[1] |
Mounting kit
|
Black D=85mm
|
| 17. |
874449
|
[1] |
Attaching ring
|
|
| 18. |
874447
|
[1] |
Ring
|
|
| 19. |
874706
|
[1] |
Gasket
|
|
| 20. |
874733
|
[1] |
Mounting kit
|
Chrome D=52mm
|
| 21. |
874450
|
[1] |
Attaching ring
|
|
| 22. |
874731
|
[1] |
Ring
|
|
| 23. |
874707
|
[1] |
Gasket
|
|
| 24. |
874732
|
[1] |
Mounting kit
|
Chrome D=85mm
|
| 25. |
874449
|
[1] |
Attaching ring
|
|
| 26. |
874730
|
[1] |
Ring
|
|
| 27. |
874706
|
[1] |
Gasket
|
|
| 28. |
881611
|
[1] |
Brace kit
|
Black D=52mm
|
| 29. |
881607
|
[1] |
Brace
|
|
| 30. |
881610
|
[2] |
Nut
|
|
| 31. |
881609
|
[2] |
Stud
|
|
| 32. |
874707
|
[1] |
Gasket
|
|
| 33. |
874448
|
[1] |
Ring
|
|
| 34. |
881612
|
[1] |
Brace kit
|
Black D=85mm
|
| 35. |
881608
|
[1] |
Brace
|
|
| 36. |
881610
|
[2] |
Nut
|
|
| 37. |
881609
|
[2] |
Stud
|
|
| 38. |
874706
|
[1] |
Gasket
|
|
| 39. |
874447
|
[1] |
Ring
|
|
| 40. |
881613
|
[1] |
Brace kit
|
Chrome D=52mm
|
| 41. |
881607
|
[1] |
Brace
|
|
| 42. |
881610
|
[2] |
Nut
|
|
| 43. |
881609
|
[2] |
Stud
|
|
| 44. |
874707
|
[1] |
Gasket
|
|
| 45. |
874731
|
[1] |
Ring
|
|
| 46. |
881614
|
[1] |
Brace kit
|
Chrome D=85mm
|
| 47. |
881608
|
[1] |
Brace
|
|
| 48. |
881610
|
[2] |
Nut
|
|
| 49. |
881609
|
[2] |
Stud
|
|
| 50. |
874706
|
[1] |
Gasket
|
|
| 51. |
874730
|
[1] |
Ring
|
|
| 52. |
874843
|
[1] |
X-ring, sealing
|
For flush mounting., D=52mm
|
| 53. |
874844
|
[1] |
X-ring, sealing
|
For flush mounting., D=85mm
|
| 54. |
874759
|
[1] |
Extension cable, instrument
|
L=1000mm
|
| 54. |
3807043
|
[1] |
Extension cable
|
L=3000mm
|
