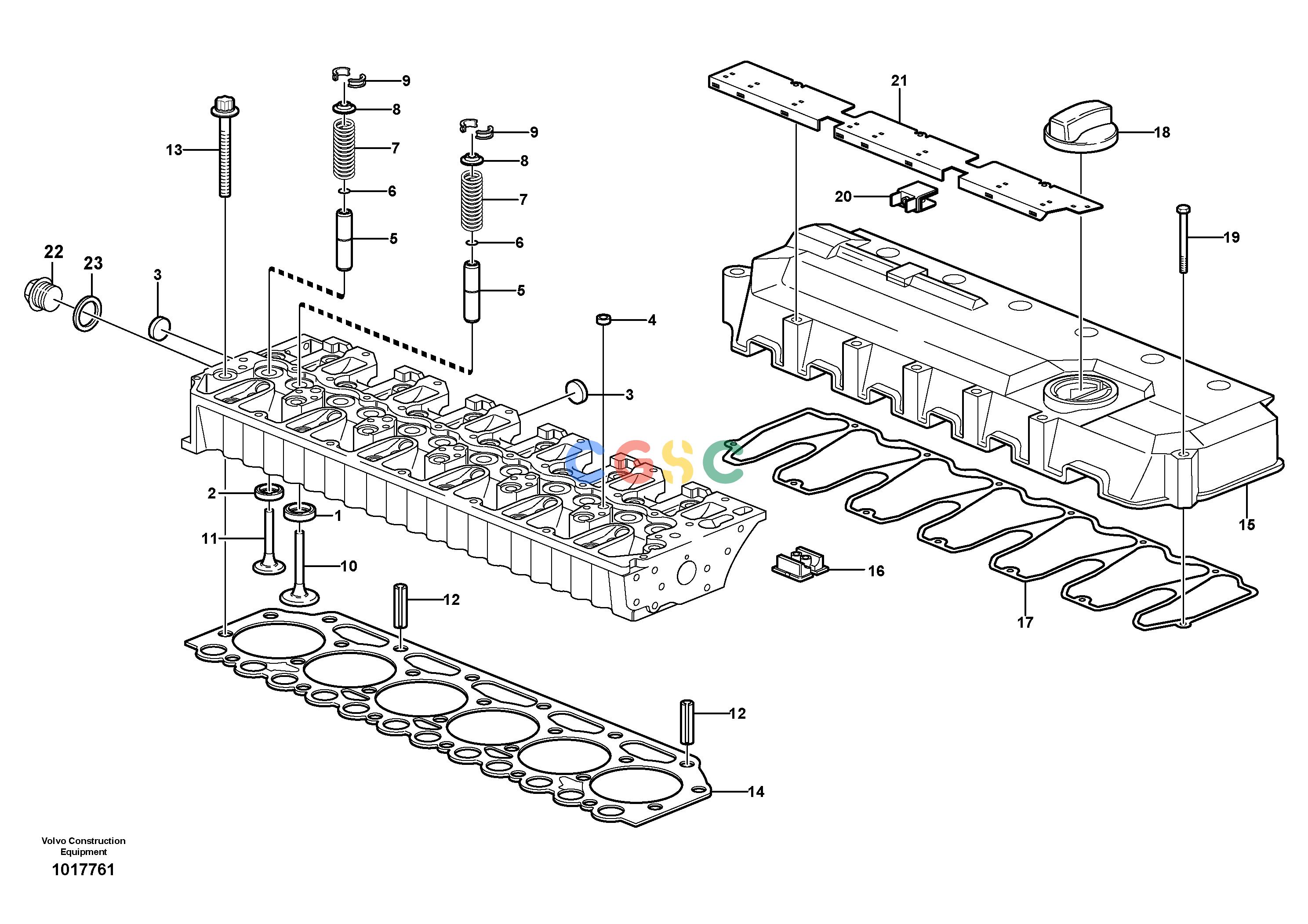

沃尔沃零件查询EC240B Cylinder headNone8277587 S/N -10813-8278909 S/N 10814-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
274 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20489008
|
[1] |
Cylinder head
|
|
| 1. |
VOE20459962
|
[6] |
Valve seat
|
|
| 2. |
VOE20459963
|
[6] |
Valve seat
|
|
| 3. |
VOE20412745
|
[5] |
Core plug
|
|
| 4. |
VOE20412733
|
[5] |
Core plug
|
|
| 5. |
VOE20405897
|
[12] |
Valve guide
|
|
| 6. |
VOE11700348
|
[12] |
O-ring
|
|
| 7. |
VOE11700347
|
[12] |
Valve spring
|
|
| 8. |
VOE11700346
|
[12] |
Washer
|
|
| 9. |
VOE11700345
|
[24] |
Valve sleeve
|
|
| 10. |
VOE20714469
|
[6] |
Inlet valve
|
|
| 11. |
VOE20405503
|
[6] |
Exhaust valve
|
|
| 12. |
VOE20405521
|
[2] |
Guide pin
|
|
| 13. |
VOE11700334
|
[26] |
Screw
|
|
| 14. |
VOE20405900
|
[1] |
Gasket
|
1.4 MM
|
| |
VOE20405901
|
[1] |
Gasket
|
1.5 MM
|
| |
VOE20405902
|
[1] |
Gasket
|
1.6 MM
|
| 15. |
VOE20412599
|
[1] |
Valve cover
|
ENG S/N -939153
|
| |
VOE20412599
|
|
Valve cover
|
ENG S/N -936534
|
| |
VOE20412599
|
|
Valve cover
|
ENG S/N -943596
|
| |
VOE20725338
|
|
Valve Cover
|
ENG S/N 939154-
|
| |
VOE20725338
|
|
Valve Cover
|
ENG S/N 936535-
|
| |
VOE20725338
|
|
Valve Cover
|
ENG S/N 943597-
|
| 16. |
VOE20412600
|
[1] |
Cap
|
|
| 17. |
VOE20412597
|
[1] |
Gasket
|
ENG S/N -939153
|
| |
VOE20412597
|
|
Gasket
|
ENG S/N -936534
|
| |
VOE20412597
|
|
Gasket
|
ENG S/N -943596
|
| |
VOE20725316
|
|
Gasket
|
ENG S/N 939154-
|
| |
VOE20725316
|
|
Gasket
|
ENG S/N 936535-
|
| |
VOE20725316
|
|
Gasket
|
ENG S/N 943597-
|
| 18. |
VOE20412589
|
[1] |
Filler cap
|
|
| 19. |
VOE22278501
|
[13] |
Hexagon screw
|
|
| 20. |
VOE20450956
|
[1] |
Cable clamp
|
|
| 21. |
VOE20450954
|
[1] |
Cover plate
|
|
| 22. |
VOE20405716
|
|
Plug
|
|
| 23. |
VOE13947621
|
|
Plane gasket
|
|
