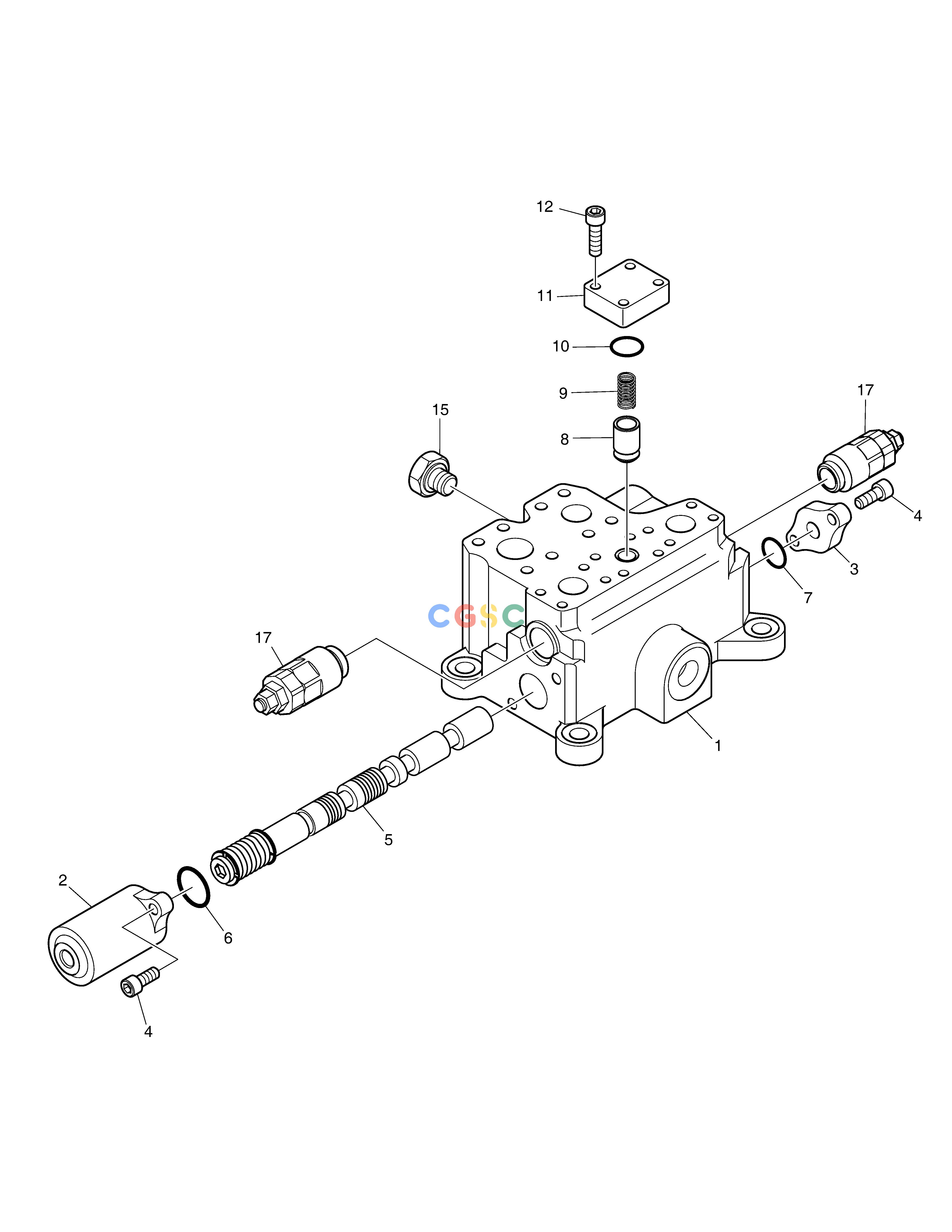

斗山零件查询CONTROL VALVE - ARTI.BOOM DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
348 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1033235A
|
[1] |
VALVE;CONTROL
|
|
| 1. |
NA00528
|
[1] |
CARTER
|
|
| 10. |
S8000321
|
[1] |
O-RING
|
|
| 11. |
NA00456
|
[1] |
FLANGE
|
|
| 12. |
S2212366
|
[4] |
BOLT
|
|
| 15. |
K9006620
|
[1] |
PLUG
|
|
| 17. |
K9006621
|
[2] |
VALVE;OVER LOAD
|
|
| 2. |
K9006624
|
[1] |
CAP
|
|
| 3. |
K9006623
|
[1] |
CAP
|
|
| 4. |
S2212066
|
[4] |
BOLT
|
|
| 5. |
K9006622
|
[1] |
SPOOL ASS'Y
|
|
| 6. |
2180-1217D67
|
[1] |
O-RING
|
|
| 7. |
2180-1217D63
|
[1] |
O-RING
|
|
| 8. |
K9006625
|
[1] |
POPPET
|
|
| 9. |
K9006626
|
[1] |
SPRING
|
|
