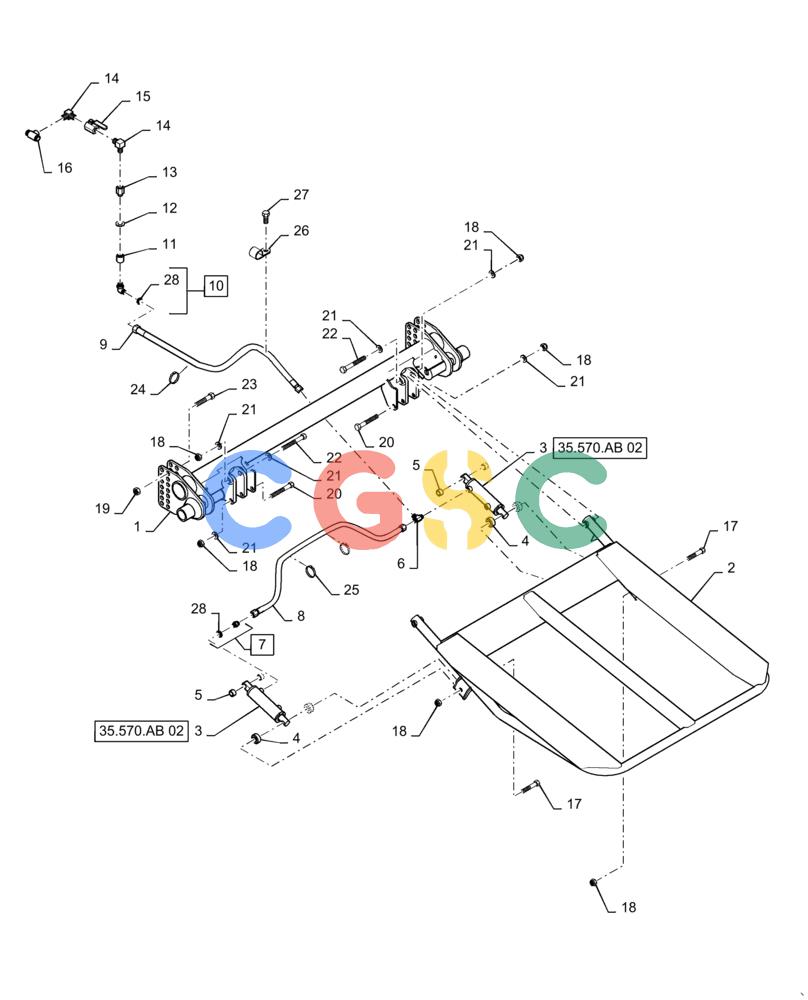

| 1. |
84535648
|
[1] |
AXLE
|
NH
|
| 2. |
47485559
|
[1] |
EJECTOR
|
NH
Bale, Serial Range: -YFN188618
|
| 2. |
47681862
|
[1] |
EJECTOR
|
NH
Bale, Start Serial: YFN188619
|
| 3. |
87731915
|
[2] |
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 107.95mm Stroke
|
NH
Bale Ejector
|
| 4. |
87601384
|
[4] |
SPACER,20mm ID x 47.6mm OD x 22.2mm Thk
|
NH
|
| 5. |
87022762
|
[4] |
BEARING,0.785" ID x 1.13" OD x 5"
|
PA
|
| 6. |
265808
|
[1] |
TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB
|
BEL
|
| 7. |
128818
|
[1] |
UNION,3/4" - 16 ORB x 3/4" - 16 JIC
|
BHB
Incl 28
|
| 8. |
47406397
|
[1] |
HOSE
|
NH
Pressure, 945 mm Long
|
| 9. |
87611136
|
[1] |
FLEXIBLE HOSE
|
NH
5482 mm Long
|
| 10. |
128830
|
[1] |
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
|
NH
Incl 28
|
| 11. |
86635143
|
[1] |
COUPLING,3/4" - 16, 1-9/64" L
|
NH
|
| 12. |
86630002
|
[1] |
ORIFICE,15.88mm OD x 5.08mm Thk
|
NH
|
| 13. |
86628562
|
[1] |
ADAPTER,1/2" NPTF x 3/4" - 16
|
GI
|
| 14. |
217-1226
|
[2] |
ELBOW,90 Degree, 1/2"-14 Male
|
CAS
Superseded by part number: 86637715
|
| 15. |
87642600
|
[1] |
HYDRAULIC VALVE
|
NH
|
| 16. |
617267
|
[1] |
TEE,1/2"-14 Female x 1/2"-14 Male Run
|
WIN
|
| 17. |
280210
|
[2] |
BOLT,Hex, 3/4"-10 x 4", G5
|
WIN
|
| 18. |
9626598
|
[6] |
NUT,3/4"-10, GB
|
PA
Superseded by part number: 280375
|
| 19. |
100020
|
[6] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 20. |
86508734
|
[2] |
BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8
|
GI
|
| 21. |
394632
|
[6] |
WASHER,21mm ID x 40mm OD x 4mm Thk
|
NH
|
| 22. |
86508735
|
[2] |
BOLT,Hex, 3/4" - 10 x 6", Gr 8
|
BAS
Superseded by part number: 426-1296
|
| 23. |
120248
|
[6] |
BOLT,Hex, M16 x 100, 8.8, Full Thd
|
PA
|
| 24. |
263117
|
[6] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
|
| 25. |
87034173
|
[3] |
CABLE TIE,774.7mm L
|
PA
Superseded by part number: 529070
|
| 26. |
86598598
|
[3] |
CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type
|
FAR
Superseded by part number: 70927104
|
| 27. |
381014
|
[1] |
SCREW,Flng, M8 x 16mm
|
NH
|
| 28. |
128825
|
[2] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
|
