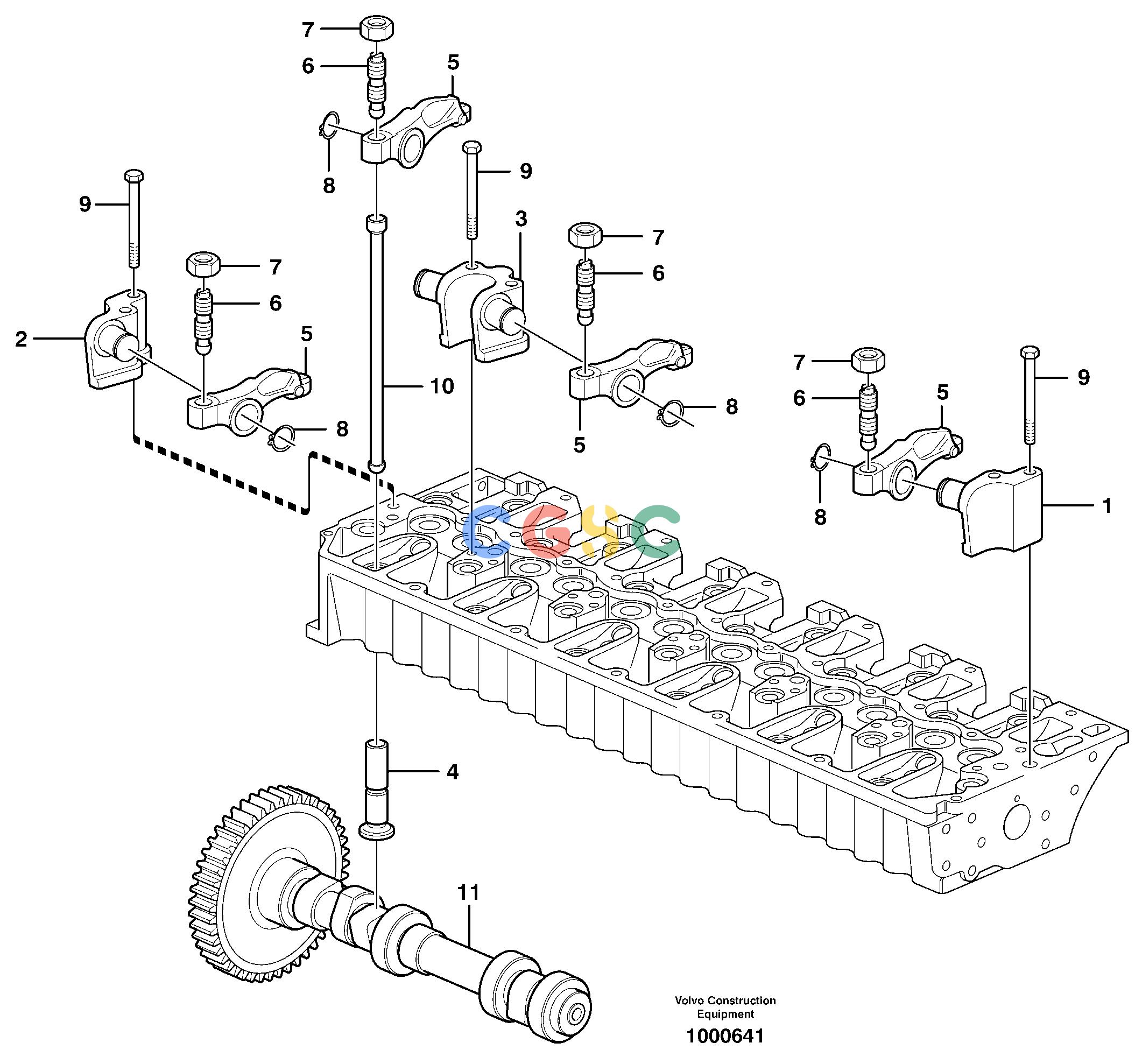

沃尔沃零件查询EC240B Valve mechanismNone8277587 S/N -10813-8278909 S/N 10814-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
228 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11700367
|
[1] |
Bearing bracket
|
|
| 2. |
VOE11700369
|
[1] |
Bearing bracket
|
|
| 3. |
VOE11700368
|
[5] |
Bearing bracket
|
|
| 4. |
VOE11700366
|
[12] |
Tappet
|
|
| 5. |
VOE21432929
|
[12] |
Rocker Arm
|
|
| 6. |
VOE20405524
|
[12] |
Screw
|
|
| 7. |
VOE11700373
|
[12] |
Nut
|
|
| 8. |
VOE945495
|
[12] |
Snap ring
|
|
| 9. |
VOE20555068
|
[14] |
Screw
|
|
| 10. |
VOE20405534
|
[12] |
Push rod
|
|
| 11. |
VOE20544668
|
[1] |
Camshaft
|
ENG - 01099467
|
| 11. |
VOE21277069
|
[1] |
Camshaft
|
ENG 01099468 -
|
