神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (06-002) - RADIATOR HOSE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
523 次

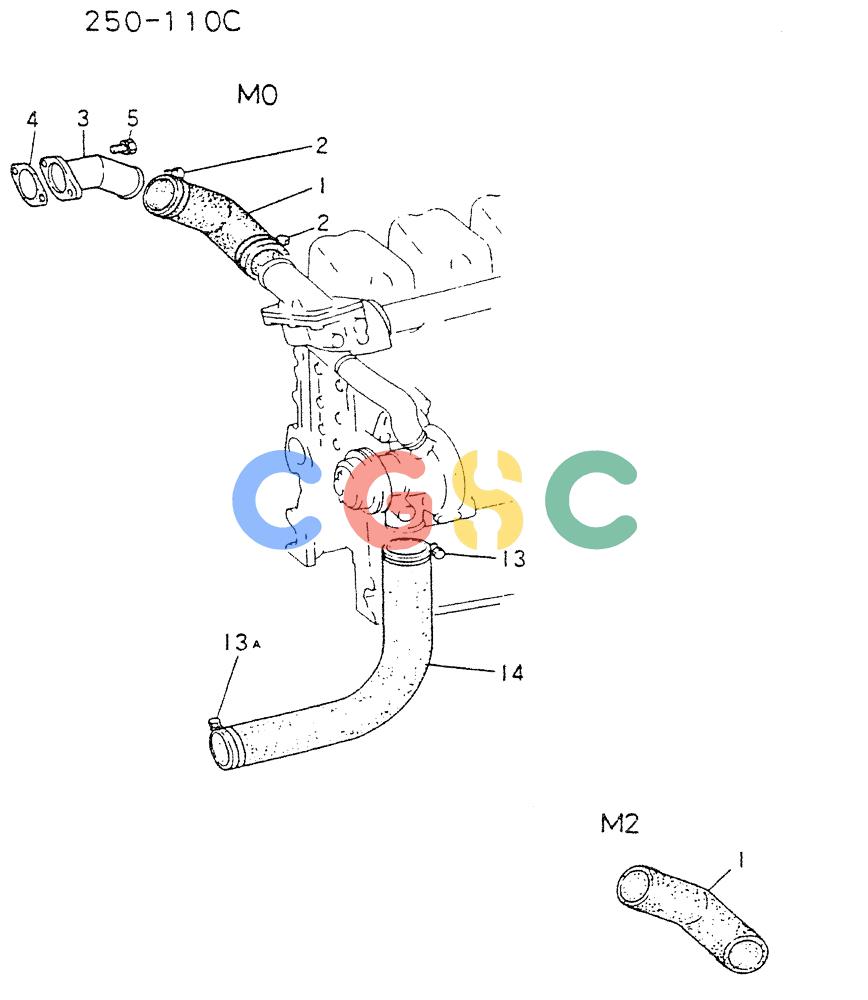

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | RADIATOR HOSE(M2) | |
| . . | 6D221CZ-KS04 | [1] | RADIATOR HOSE(M0) | |
| . . | 6D221CZ-KS01 | [1] | RADIATOR HOSE(M0) | |
| 1. | VA3094792500 | [1] | ELBOW | KOBRUBBER, INLET Superseded by part number: VAME440664 |
| 2. | VAMH020386 | [2] | CLAMP | KOBHOSE 75 (FOR M0) |
| 3. | VAME059124 | [1] | PIPE, WATER INLET (FOR M0) | |
| 4. | VA3124700401 | [1] | GASKET (FOR M0) | |
| 5. | VAMF241309 | [2] | BOLT, W/WSR 12X30 (FOR M0) | |
| 13. | VAMH020388 | [1] | CLIP | KOB85 (FOR M0) |
| 13A. | VAMH020389 | [1] | HOSE CLAMP | KOB90 (FOR M0) |
| 14. | VAME059293 | [1] | HOSE | KOBSUCTION (FOR M0) |
