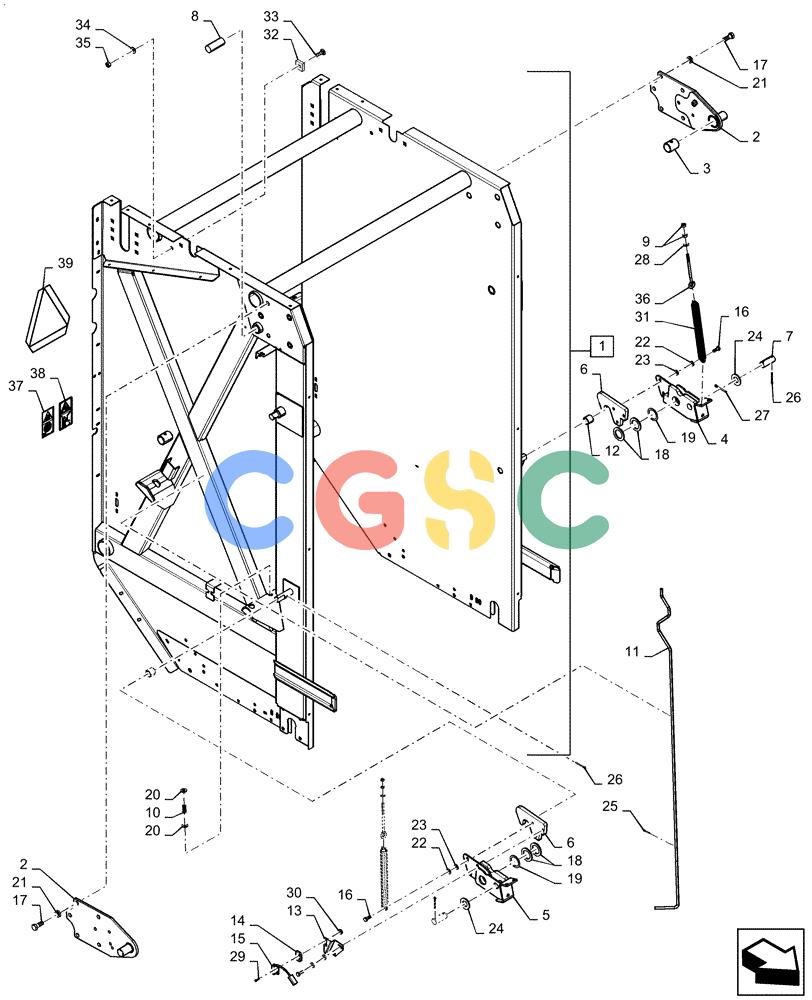

| 1. |
47565140
|
[1] |
TAILGATE
|
NH
Incl 37 - 39, Serial Range: -YGN193202
|
| 1. |
47973712
|
[1] |
TAILGATE
|
NH
Dual Cylinders, Incl 38, Start Serial: YGN193203
|
| 2. |
47798993
|
[2] |
PLATE
|
NH
|
| 3. |
84480737
|
[2] |
BUSHING,35.17mm ID x 41.35mm OD x 50mm L
|
NH
M35.2 ID x 41.3 OD x 50
|
| 4. |
47748158
|
[1] |
LATCH
|
PLO
LH
|
| 5. |
47748150
|
[1] |
LATCH
|
PLO
RH
|
| 6. |
84217008
|
[2] |
LATCH
|
NH
Hook
|
| 7. |
166065
|
[2] |
PIN,25.4mm OD x 66.5mm L
|
NH
M25.4 OD x 66.5 Long
|
| 8. |
9845448
|
[1] |
PIN,31.7mm OD x 83.7mm L
|
NH
M25.4 OD x 83.7 Long
|
| 9. |
9635082
|
[1] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 10. |
34019
|
[1] |
SPRING,Compression, 9/16" OD x 2-5/16" L
|
GI
7/16" ID x 2-5/16" Long
|
| 11. |
47461256
|
[1] |
ROD
|
NH
|
| 12. |
87665527
|
[2] |
SPACER,25.75mm ID x 31.75mm OD x 28mm L
|
NH
25.7 ID x 31.7 OD x 28 Long
|
| 13. |
87709056
|
[1] |
CHANNEL
|
NH
|
| 14. |
86624468
|
[1] |
SPACER,1.65" L x 5/16” Thk
|
NH
Switch
|
| 15. |
86594422
|
[1] |
SENSOR
|
NH
Tailgate Latch
|
| 16. |
43139
|
[6] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 17. |
374835
|
[10] |
BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd
|
BHB
|
| 18. |
86603125
|
[4] |
WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk
|
NH
|
| 19. |
86636633
|
[2] |
WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk
|
NH
|
| 20. |
80702
|
[2] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 21. |
273127
|
[10] |
WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk
|
NH
|
| 22. |
285072
|
[6] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
|
| 23. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 24. |
87367
|
[2] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 25. |
80756
|
[1] |
COTTER PIN,1/8" x 3/4"
|
NH
|
| 26. |
87399
|
[6] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 27. |
88182
|
[2] |
COTTER PIN,1/4" OD x 2" L
|
NH
|
| 28. |
80701
|
[2] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 29. |
87310126
|
[2] |
SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST
|
BUR
|
| 30. |
86900323
|
[2] |
NUT,#10 - 24
|
PA
10-24 KWH
|
| 31. |
86572215
|
[2] |
SPRING,Extension, 25.58mm OD x 240.18mm L
|
NH
M28.5 OD x 240 Long
|
| 32. |
86636768
|
[2] |
PLATE
|
NH
|
| 33. |
328754
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 34. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 35. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 36. |
27953
|
[2] |
EYEBOLT
|
NH
5/16"-18 x 6-1/4"
|
| 37. |
47361241
|
[1] |
WARNING DECAL
|
NH
Crushing Hazard
|
| 38. |
86516139
|
[3] |
CAUTION DECAL
|
NH
Pinching Hazard
|
| 39. |
86547711
|
[1] |
DECAL,SMV
|
NH
|
