沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemExtra Panel 24V, Turbo Pressure, Oil Pressure Reverse Gear. EDCEPC Volvo Penta Parts catalo
广数供应链运营团队, 14 02月, 2025，浏览：
366 次

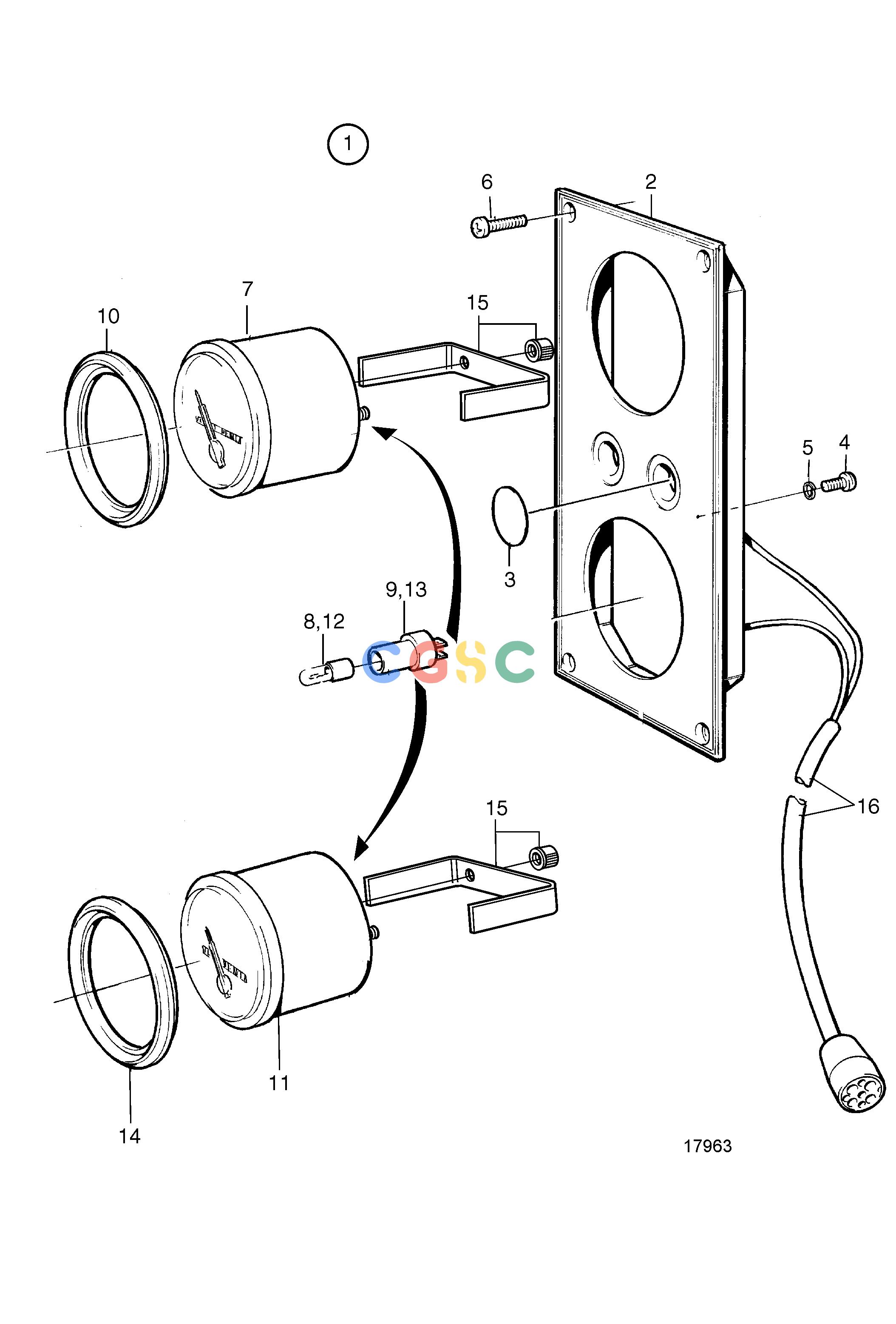

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864053
|
[1] |
Instrument panel
|
|
| 2. |
858874
|
[1] |
Instrument panel
|
|
| 3. |
828607
|
[2] |
Cover plate
|
|
| 4. |
949947
|
[1] |
Cross recessed screw
|
|
| 5. |
941904
|
[1] |
Spring washer
|
|
| 6. |
828647
|
[4] |
Screw
|
|
| 7. |
863937
|
[1] |
Manometer
|
Repl by 873202+873207
|
| 7. |
873202
|
[1] |
Oil pressure gauge
|
|
| 8. |
863947
|
[1] |
Bulb
|
For instruments of early production should white bulb 182059 and bulb holder 808175 be mounted., Wit
|
| 9. |
863945
|
[1] |
Bulb socket
|
For instruments of early production should white bulb 182059 and bulb holder 808175 be mounted.
|
| 10. |
858643
|
[1] |
Front ring
|
|
| 11. |
864018
|
[1] |
Turbo pressure gauge
|
Repl by 873206+873207
|
| 11. |
873206
|
[1] |
Turbo pressure gauge
|
|
| 12. |
863947
|
[1] |
Bulb
|
For instruments of early production should white bulb 182059 and bulb holder 808175 be mounted., Wit
|
| 13. |
863945
|
[1] |
Bulb socket
|
For instruments of early production should white bulb 182059 and bulb holder 808175 be mounted.
|
| 14. |
858643
|
[1] |
Front ring
|
|
| 15. |
873207
|
[2] |
Brace kit
|
|
| 16. |
7740680_175
|
|
Cable block, electrical materials
|
|
