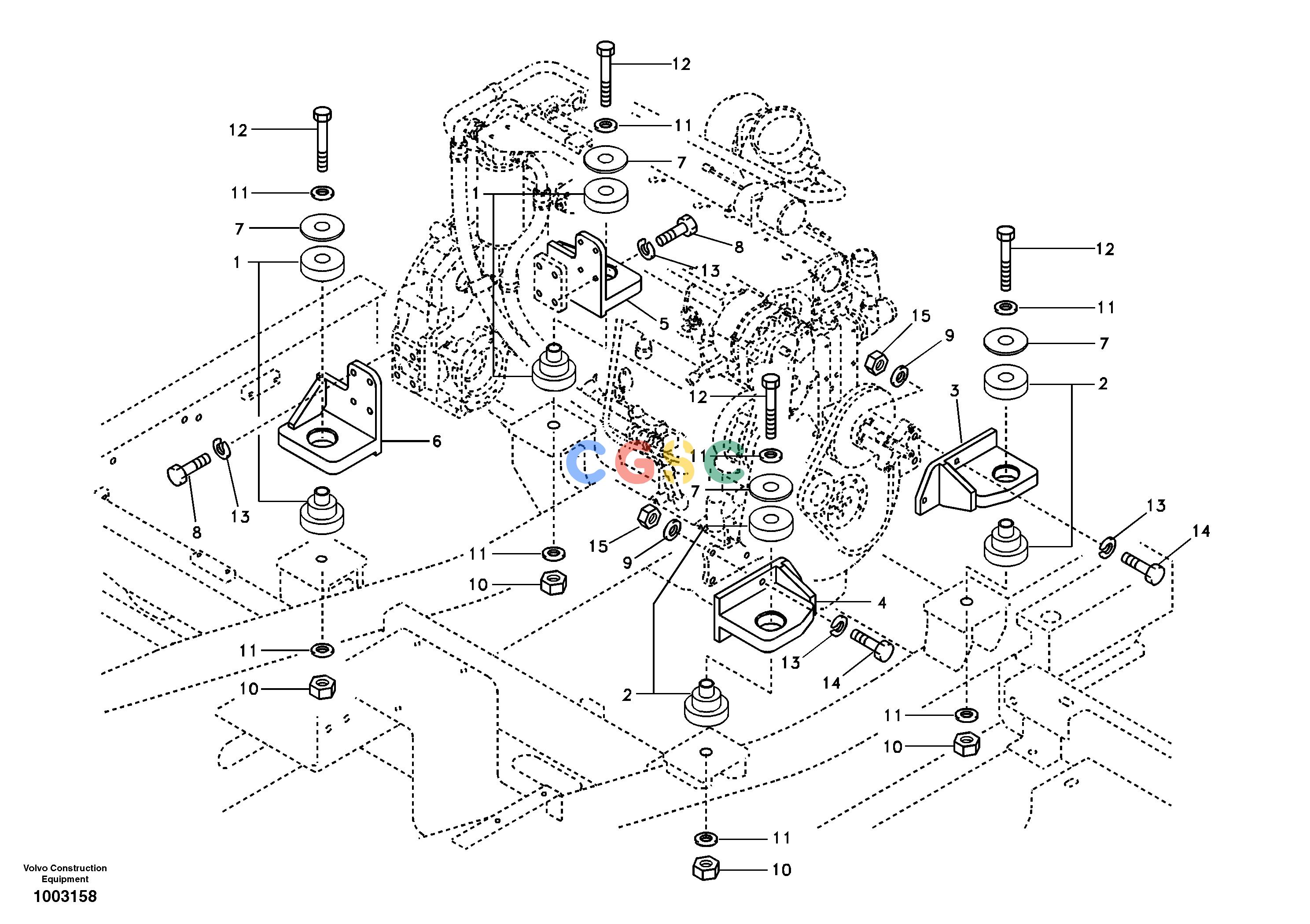

沃尔沃零件查询EC240B Engine mountNone8277587-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14526155
|
[2] |
Cushion
|
|
| 2. |
VOE14528380
|
[2] |
Cushion
|
|
| 3. |
VOE14501324
|
[1] |
Bracket
|
NA S/N 10001-11915
EU S/N 10001-11801
|
| |
VOE14528910
|
[1] |
Bracket
|
NA S/N 11916-
EU S/N 11802-
|
| 4. |
VOE14501325
|
[1] |
Bracket
|
NA S/N 10001-11915
EU S/N 10001-11801
|
| |
VOE14528911
|
[1] |
Bracket
|
NA S/N 11916-
EU S/N 11802-
|
| 5. |
VOE14501326
|
[1] |
Bracket
|
|
| 6. |
VOE14501327
|
[1] |
Bracket
|
|
| 7. |
VOE14526169
|
[4] |
Plate
|
|
| 8. |
VOE9011-11207
|
[8] |
Screw
|
|
| 9. |
VOE992042
|
[6] |
Plain washer
|
|
| 10. |
VOE991655
|
[4] |
Hexagon nut
|
SER NO 10001-11050
|
| |
VOE14512933
|
[4] |
Nut
|
SER NO 11051-
SER NO 30001-
|
| 11. |
VOE992059
|
[6] |
Plain washer
|
SER NO 10001-10085
|
| |
VOE992059
|
[8] |
Plain washer
|
SER NO 10086-
SER NO 30001-
|
| 12. |
VOE992992
|
[4] |
Hexagon screw
|
|
| 13. |
VOE955923
|
[14] |
Spring washer
|
|
| 14. |
VOE978934
|
[6] |
Hexagon screw
|
NA S/N 10001-11915
EU S/N 10001-11801
|
| |
SA9011-21212
|
[6] |
Hexagon screw
|
NA S/N 11916-
EU S/N 11802-
|
| 15. |
VOE979019
|
[6] |
Hexagon nut
|
|
