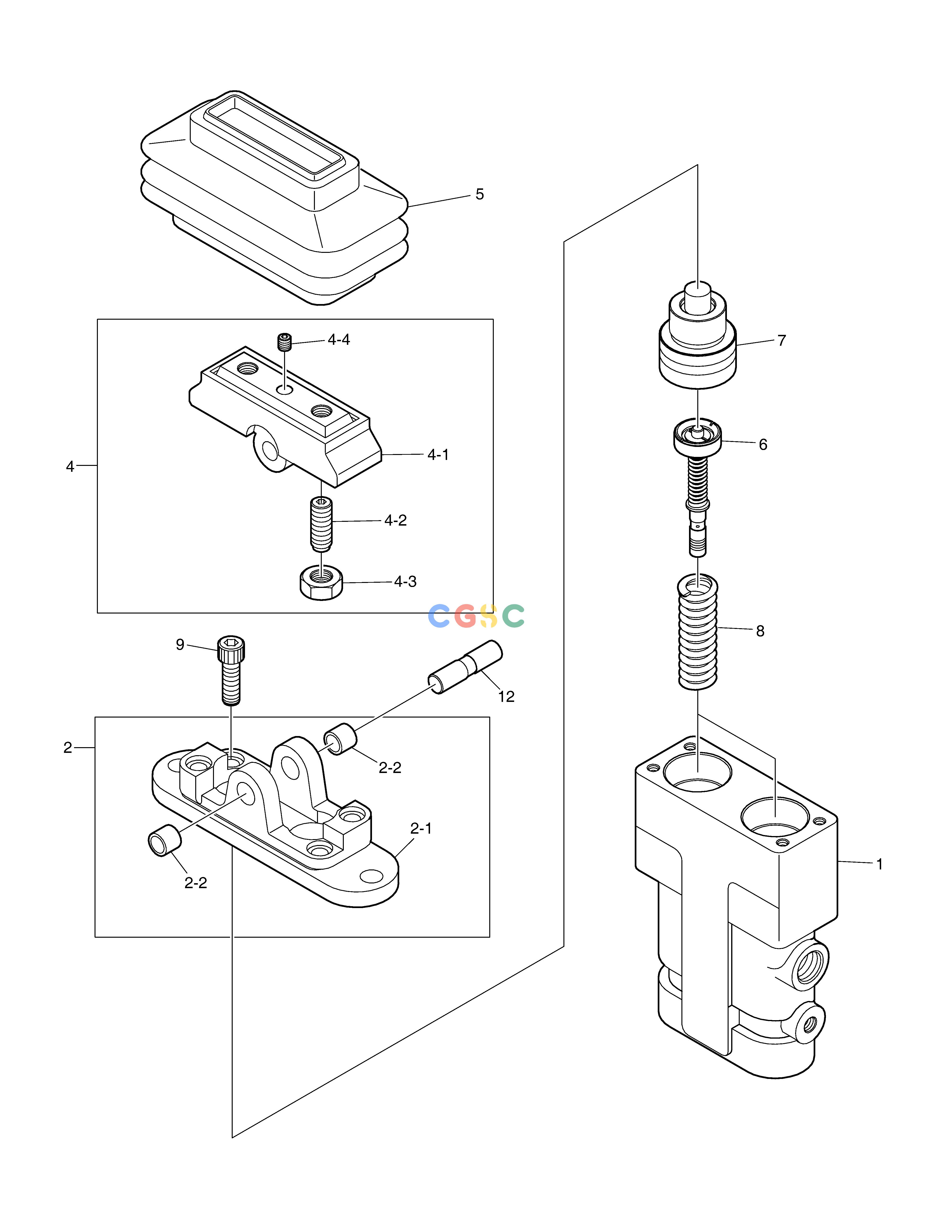

斗山零件查询PEDAL VALVE - ONE PEDAL DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
630 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410119-00012
|
[1] |
|
|
| 1. |
NA00342
|
[1] |
CASING
|
|
| 12. |
354-00003
|
[1] |
SHAFT;CAM
|
|
| 2. |
K9002934
|
[1] |
COVER KIT
|
|
| 2-1. |
1.430-00019
|
[1] |
COVER
|
|
| 2-2. |
2110-1184D7
|
[2] |
BUSH
|
|
| 4. |
K9003465
|
[1] |
CAM KIT
|
|
| 4-1. |
354-00002
|
[1] |
CAM
|
|
| 4-2. |
120-00127
|
[2] |
SCREW;SET
|
|
| 4-3. |
S4014633
|
[2] |
. NUT
|
|
| 4-4. |
S3523608
|
[1] |
SCREW;SET
|
|
| 5. |
160-00008
|
[1] |
BELLOW
|
|
| 6. |
410207-00374
|
[1] |
|
|
| 7. |
1.428-00241A
|
[1] |
PLUG ASS`Y
|
|
| 8. |
K9002935
|
[2] |
SPRING
|
|
| 9. |
S2209261
|
[2] |
BOLT
|
|
