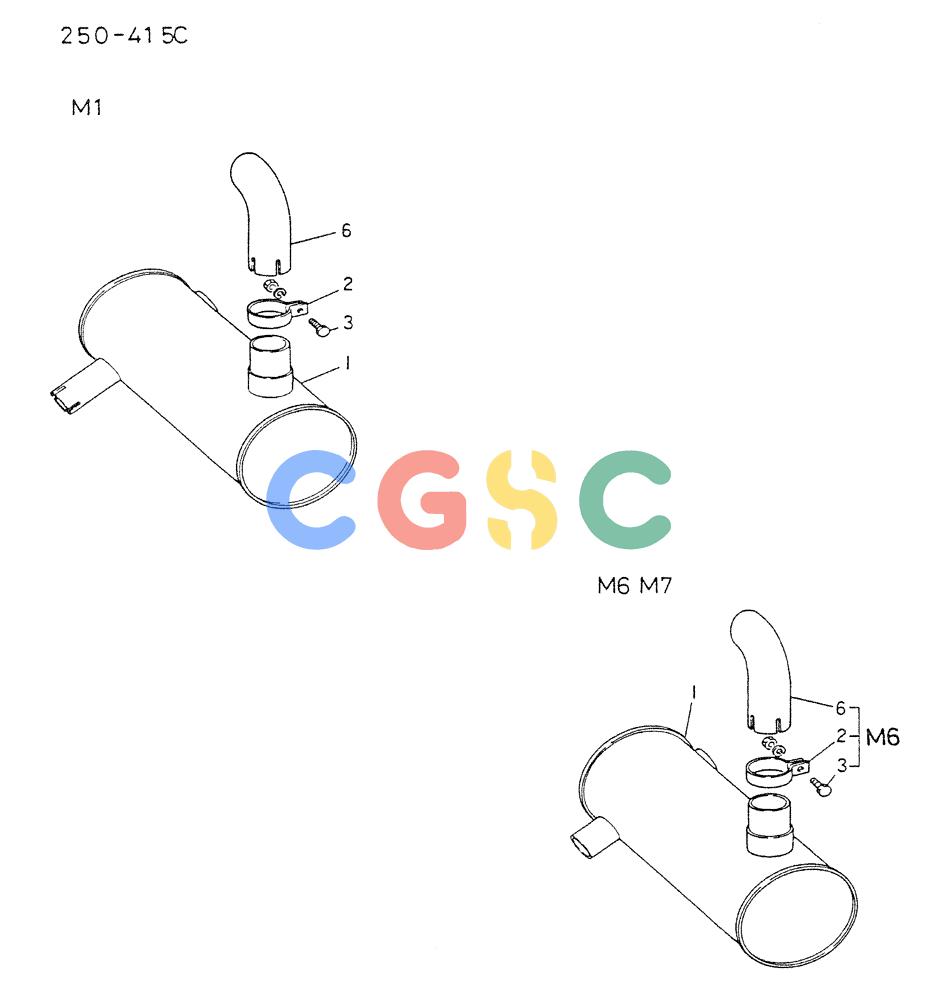

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (06-008[02]) - EXHAUST MUFFLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
315 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS09 | [1] | EXHAUST MUFFLER(M7) | |
| . . | 6D221CZ-KS07 | [1] | EXHAUST MUFFLER(M7) | |
| . . | 6D221CZ-KS06 | [1] | EXHAUST MUFFLER(M6) | |
| . . | 6D221CZ-KS04 | [1] | EXHAUST MUFFLER(M1) | |
| . . | 6D221CZ-KS01 | [1] | EXHAUST MUFFLER(M1) | |
| 1. | VAME058404 | [1] | MUFFLER 280-790 (FOR M1) | MUFFLER 280-790 (FOR M1) |
| . . | VAME058730 | [1] | MUFFLER | KOB280-790 (FOR M6& M7) Superseded by part number: VAME050708 |
| 2. | VA1226653100 | [1] | CLAMP | KOB(FOR M1&M6) |
| 3. | VAMF101312 | [1] | SCREW | KOB12X30 (FOR M1&M6) |
| . . | VAMF430007 | [1] | NUT | KOB12 (FOR M1&M6) |
| . . | VAMF450407 | [1] | WASHER SPG 12 (FOR M1&M6) | WASHER SPG 12 (FOR M1&M6) |
| 6. | VA3093293500 | [1] | EXHAUST SYSTEM PIPE | KOBTAIL (FOR M1&M6) |
