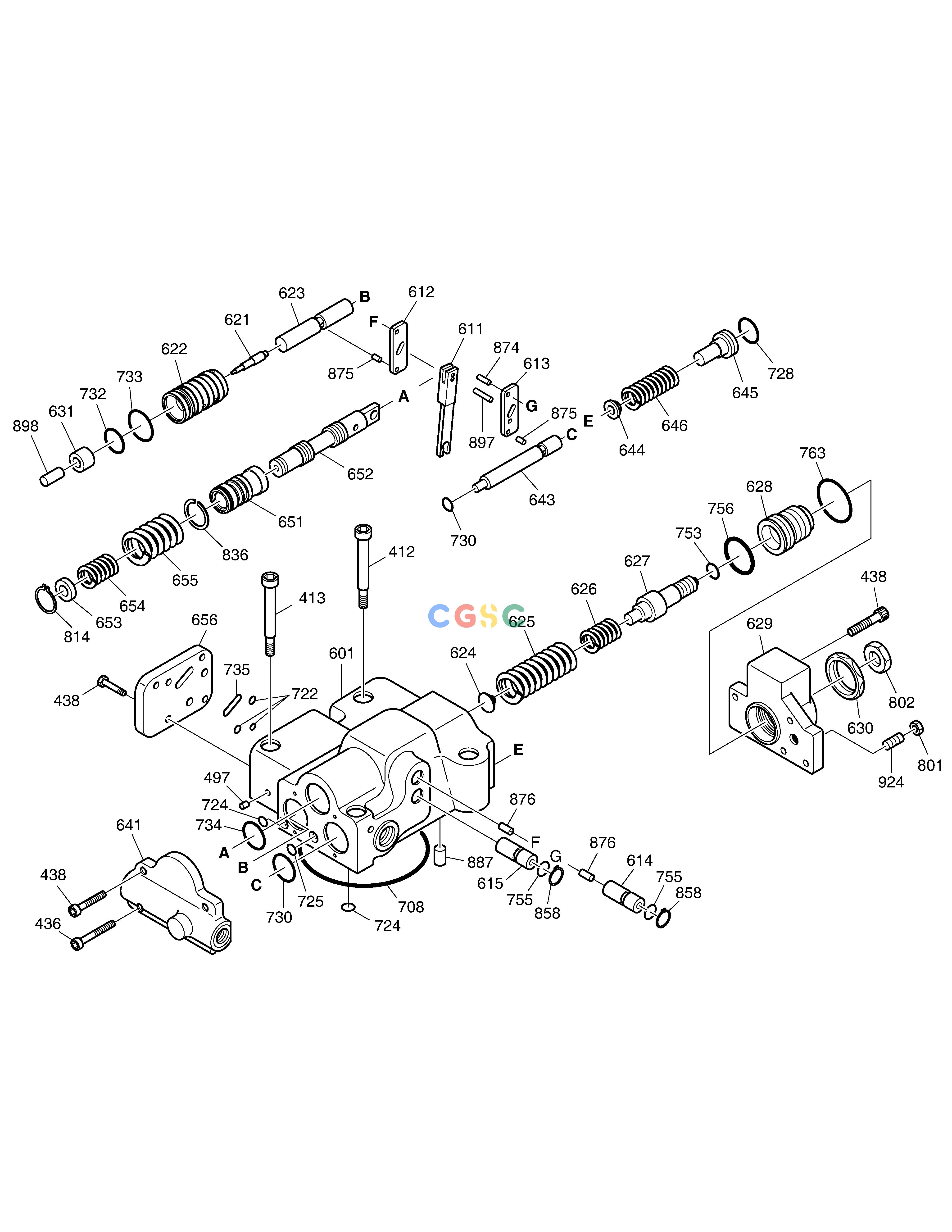

斗山零件查询REGULATOR DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400825-00037
|
[2] |
|
|
| 412. |
S2209661
|
[2] |
BOLT
|
|
| 413. |
S2210071
|
[2] |
BOLT
|
|
| 436. |
S2205261
|
[2] |
BOLT
|
|
| 438. |
S2204861
|
[10] |
BOLT
|
|
| 497. |
430221-00719
|
[5] |
|
|
| 601. |
NA00342
|
[1] |
CASING
|
|
| 611. |
1.357-00019
|
[1] |
LEVER;FEED BACK
|
|
| 612. |
1.357-00006
|
[1] |
LEVER(1)
|
|
| 613. |
1.357-00009
|
[1] |
LEVER(2)
|
|
| 614. |
1.181-00095
|
[1] |
PLUG;CENTER
|
|
| 615. |
1.181-00091
|
[1] |
PLUG;ADJUST
|
|
| 621. |
1.409-00191
|
[1] |
PISTON
|
|
| 622. |
1.402-00038
|
[1] |
CASE;PISTON
|
|
| 623. |
NA00996
|
[1] |
. ROD
|
|
| 624. |
NA01114
|
[1] |
ROD;COMPENSATOR
|
|
| 625. |
1.131-00146
|
[1] |
SPRING;OUTER
|
|
| 626. |
1.131-00136
|
[1] |
SPRING;INNER
|
|
| 627. |
NA01231
|
[1] |
SPRING;INNER
|
|
| 628. |
NA01052
|
[1] |
SCREW;ADJUST(C)
|
|
| 629. |
1.430-00049
|
[1] |
COVER(C)
|
|
| 630. |
1.121-00045
|
[1] |
NUT;LOCK
|
|
| 631. |
K9004876
|
[1] |
SLEEVE;PF
|
|
| 641. |
1.430-00066
|
[1] |
COVER;PILOT
|
|
| 643. |
NA00808
|
[1] |
PISTON;PILOT
|
|
| 644. |
NA01117
|
[1] |
SEAT;SPRING(Q)
|
|
| 645. |
1.115-00175
|
[1] |
STEM;ADJUST(Q)
|
|
| 646. |
1.131-00156
|
[1] |
SPRING;PILOT
|
|
| 651. |
NA01145
|
[1] |
SLEEVE
|
|
| 652. |
1.424-00021
|
[1] |
SPOOL
|
|
| 653. |
1.131-00167
|
[1] |
SEAT;SPRING
|
|
| 654. |
1.131-00161
|
[1] |
SPRING;RETURN
|
|
| 655. |
1.131-00173
|
[1] |
SPRING;SET
|
|
| 656. |
1.430-00029
|
[1] |
COVER;BLOCK
|
|
| 708. |
S8010755
|
[1] |
O-RING 1BG-75
|
|
| 722. |
S8000065
|
[3] |
. O-RING P6
|
|
| 724. |
401003-00823
|
[9] |
|
|
| 725. |
S8000105
|
[1] |
O-RING P10
|
|
| 728. |
S8000185
|
[1] |
. O-RING
|
|
| 730. |
S8000225
|
[1] |
. O-RING P22
|
|
| 732. |
S8000165
|
[1] |
O-RING
|
|
| 733. |
S8000205
|
[1] |
O-RING
|
|
| 734. |
S8010255
|
[1] |
O-RING P25
|
|
| 735. |
S8002725
|
[1] |
O-RING P12.5
|
|
| 753. |
K9004878
|
[1] |
O-RING
|
|
| 755. |
S8000115
|
[2] |
.. O-RING
|
|
| 756. |
S8000265
|
[1] |
O-RING P26
|
|
| 763. |
S8010355
|
[1] |
O-RING
|
|
| 801. |
S4012531
|
[1] |
NUT M8
|
|
| 802. |
K9004800
|
[1] |
NUT
|
|
| 814. |
S6500100
|
[1] |
RING,SNAP
|
|
| 836. |
1.115-00111
|
[1] |
RING;SNAP
|
|
| 858. |
S6510150
|
[2] |
RING,SNAP
|
|
| 874. |
1.123-00030
|
[1] |
PIN
|
|
| 875. |
1.123-00031
|
[2] |
PIN
|
|
| 876. |
1.123-00039
|
[2] |
PIN
|
|
| 887. |
1.123-00032
|
[1] |
PIN
|
|
| 897. |
1.123-00040
|
[1] |
PIN
|
|
| 898. |
K9004881
|
[1] |
PIN
|
|
| 924. |
S3524008
|
[1] |
SCREW,SET
|
|
