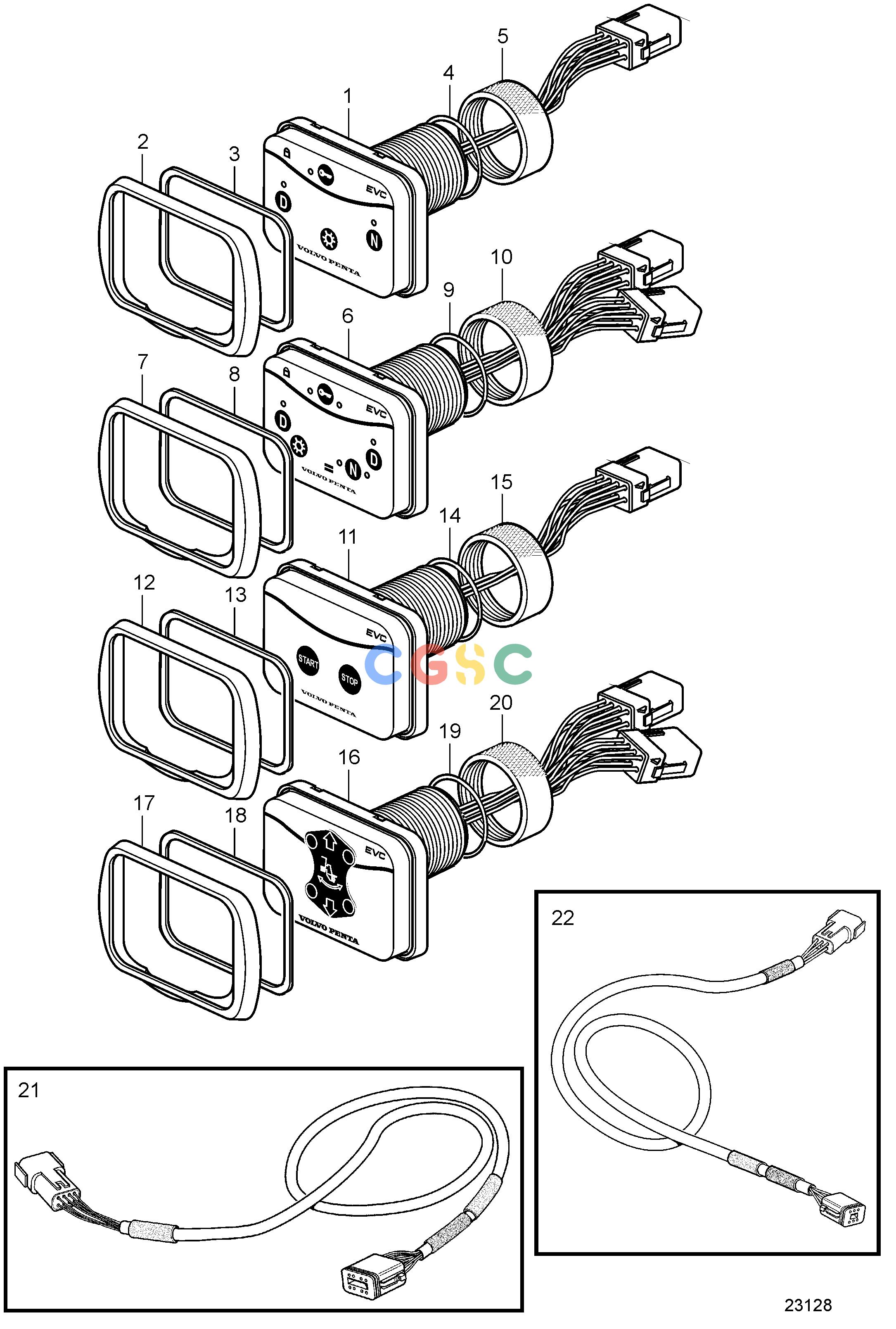

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemMonitoring Panel, EVC-AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
874459
|
[1] |
Control panel
|
Single installation
|
| 2. |
874149
|
[1] |
Frame
|
|
| 3. |
874192
|
[1] |
Gasket
|
|
| 4. |
874191
|
[1] |
O-ring
|
|
| 5. |
874193
|
[1] |
Round nut
|
|
| 6. |
874460
|
[1] |
Control panel
|
|
| 7. |
874149
|
[1] |
Frame
|
|
| 8. |
874192
|
[1] |
Gasket
|
|
| 9. |
874191
|
[1] |
O-ring
|
|
| 10. |
874193
|
[1] |
Round nut
|
|
| 11. |
874461
|
[1] |
Control panel
|
|
| 12. |
874149
|
[1] |
Frame
|
|
| 13. |
874192
|
[1] |
Gasket
|
|
| 14. |
874191
|
[1] |
O-ring
|
|
| 15. |
874193
|
[1] |
Round nut
|
|
| 16. |
889744
|
[1] |
Control panel
|
|
| 17. |
874149
|
[1] |
Frame
|
|
| 18. |
874192
|
[1] |
Gasket
|
|
| 19. |
874191
|
[1] |
O-ring
|
|
| 20. |
874193
|
[1] |
Round nut
|
|
| 21. |
874677
|
[1] |
Cable kit
|
EVC control panel cable, 8-pole for HCU., L=1,5m
|
| 22. |
874749
|
[1] |
Cable kit
|
For start and stop panel 874837 for HCU., L=1,5m
|
