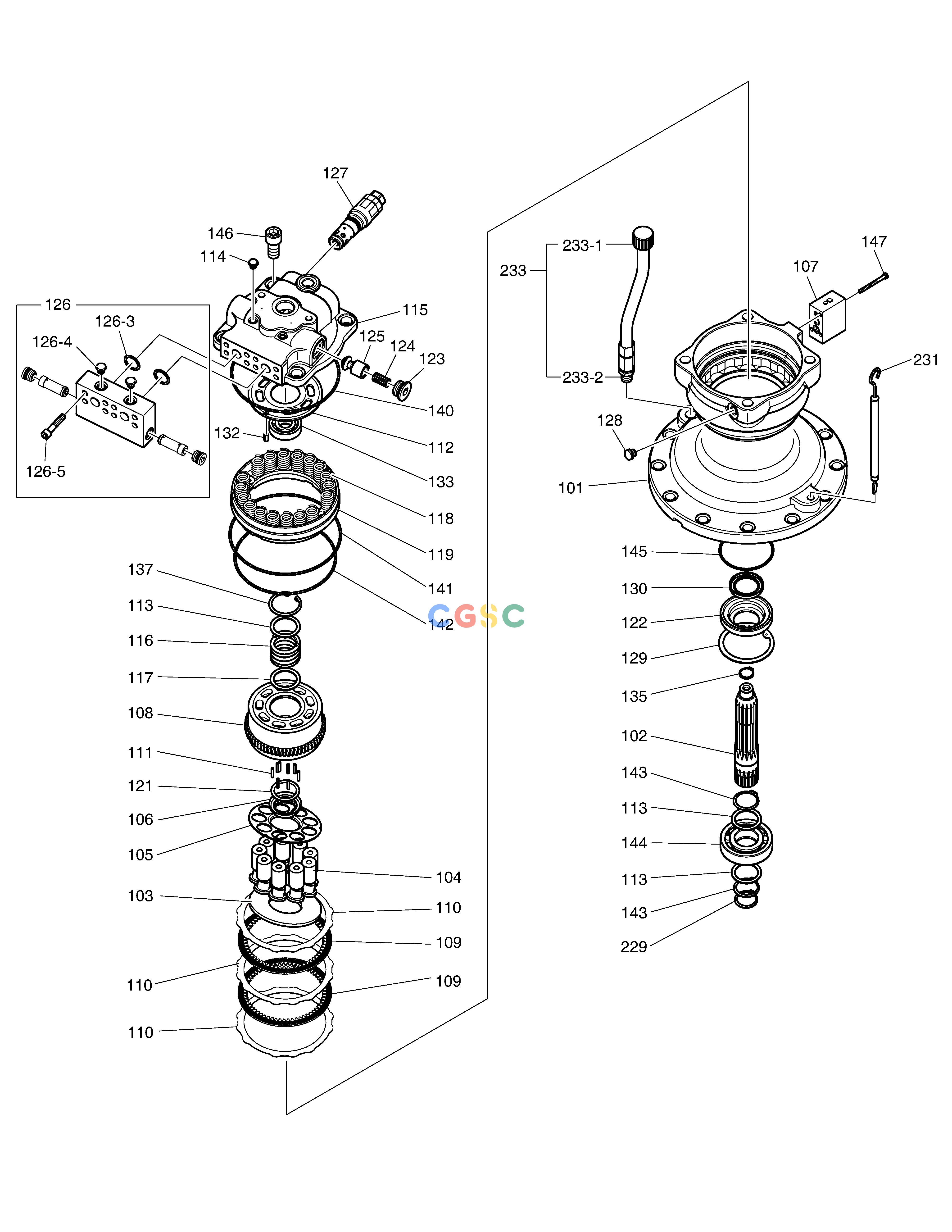

斗山零件查询SWING MOTOR DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9002875A
|
[1] |
|
|
| -. |
170303-00064
|
[1] |
|
|
| 101. |
NA00342
|
[1] |
CASING
|
|
| 102. |
405-00013
|
[1] |
SHAFT;DRIVE
|
|
| 103. |
412-00011
|
[1] |
PLATE;SHOE
|
|
| 104. |
409-00009
|
[1] |
PISTON ASS'Y
|
|
| 105. |
223-00024
|
[1] |
RETAINER
|
|
| 106. |
131002-00290
|
[1] |
|
|
| 107. |
410102-00023
|
[1] |
|
|
| 108. |
150102-00438
|
[1] |
|
|
| 109. |
412-00013
|
[2] |
PLATE,FRICTION
|
|
| 110. |
352-00014
|
[3] |
PLATE,SEPARATION
|
|
| 111. |
454-00007
|
[12] |
ROD;PUSH
|
|
| 112. |
400901-00056
|
[1] |
|
|
| 113. |
114-00240
|
[3] |
SPACER
|
|
| 114. |
430221-00070
|
[2] |
PLUG
|
|
| 115. |
423-00053
|
[1] |
CASING;VALVE
|
|
| 116. |
129-00060
|
[1] |
SPRING;CYLINDER
|
|
| 117. |
114-00242
|
[1] |
SPACER
|
|
| 118. |
129-00062
|
[20] |
SPRING;BRAKE
|
|
| 119. |
452-00020
|
[1] |
PISTON;BRAKE
|
|
| 121. |
114-00241
|
[1] |
SPACER
|
|
| 122. |
113360A
|
[1] |
COVER;FRONT
|
|
| 123. |
430221-00449
|
[2] |
|
|
| 124. |
129-00061
|
[2] |
SPRING
|
|
| 125. |
424-00049
|
[2] |
PLUNGER
|
|
| 126. |
410116-00375
|
[1] |
|
|
| 126-3. |
S8010300
|
[2] |
O-RING
|
|
| 126-4. |
430221-00070
|
[2] |
PLUG
|
|
| 126-5. |
S2212766
|
[2] |
BOLT;SOCKET M10X1.5X55
|
|
| 127. |
410127-00214
|
[2] |
|
|
| 128. |
430221-00070
|
[1] |
PLUG
|
|
| 129. |
S6511000
|
[1] |
RING;LOCK
|
|
| 130. |
401106-00181
|
[1] |
|
|
| 132. |
S5741162
|
[2] |
PIN;SPRING
|
|
| 133. |
109-00110
|
[1] |
BEARING;ROLLER
|
|
| 135. |
S6500250
|
[1] |
RING;RETAINING
|
|
| 137. |
S6510580
|
[1] |
RING;LOCK
|
|
| 140. |
2180-1217D156
|
[1] |
O-RING
|
|
| 141. |
180-00221
|
[1] |
O-RING
|
|
| 142. |
180-00220
|
[1] |
O-RING
|
|
| 143. |
S6500450
|
[2] |
RING;SNAP
|
|
| 144. |
109-00099
|
[1] |
BEARING;ROLLER
|
|
| 145. |
S8011001
|
[1] |
. O-RING
|
|
| 146. |
S2227561
|
[4] |
BOLT;SOCKET
|
|
| 147. |
S0506053
|
[2] |
BOLT M6x1.0x70
|
|
| 229. |
S6500400
|
[1] |
RING,RETAINING
|
|
| 231. |
800108-00098
|
[1] |
|
|
| 233. |
420210-00632
|
[1] |
|
|
| 233-1. |
110910-00378
|
[1] |
|
|
| 233-2. |
2181-1920D4
|
[1] |
ADAPTER PT1/2-PFO1/2
|
|
