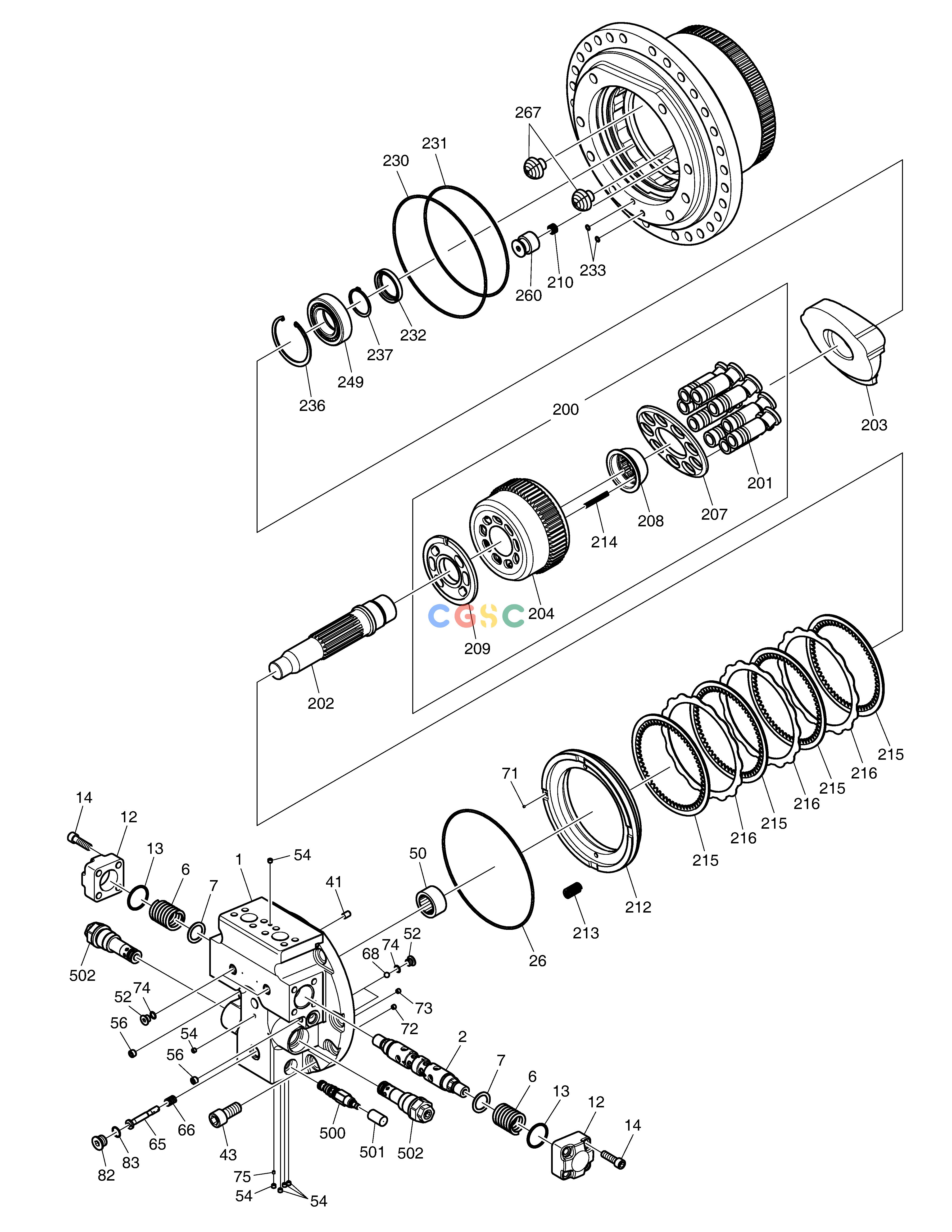

斗山零件查询TRAVEL MOTOR DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
187 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01052
|
[1] |
|
|
| 1. |
NA00915
|
[1] |
REAR FLANGE
|
|
| 12. |
110910-00379
|
[2] |
|
|
| 13. |
S8010451
|
[2] |
O-RING
|
|
| 14. |
S2215561
|
[8] |
BOLT;SOCKET
|
|
| 2. |
410207-00242
|
[1] |
|
|
| 200. |
150102-00381A
|
[1] |
|
|
| 201. |
130602-00679
|
[1] |
|
|
| 202. |
130712-00651
|
[1] |
|
|
| 203. |
400901-00038
|
[1] |
|
|
| 204. |
NA00423
|
[1] |
|
|
| 207. |
110943-00045
|
[1] |
|
|
| 208. |
110202-00040
|
[1] |
|
|
| 209. |
250201-01443
|
[1] |
|
|
| 210. |
1.131-00042
|
[1] |
SPRING
|
|
| 212. |
130602-00680
|
[1] |
|
|
| 213. |
1.131-00049
|
[14] |
SPRING
|
|
| 214. |
111601-00355
|
[9] |
|
|
| 215. |
130113-00019
|
[4] |
|
|
| 216. |
250201-01442
|
[3] |
|
|
| 230. |
2180-1217D164
|
[1] |
|
|
| 231. |
2180-1217D160
|
[1] |
O-RING
|
|
| 232. |
401106-00204
|
[1] |
|
|
| 233. |
S8000081
|
[2] |
O-RING
|
|
| 236. |
S6511000
|
[1] |
RING;LOCK
|
|
| 237. |
S6500550
|
[1] |
RING;RETAINER
|
|
| 249. |
1.109-00066
|
[1] |
BEARING;ROLLER
|
|
| 26. |
2180-1217D163
|
[1] |
|
|
| 260. |
130602-00681A
|
[1] |
|
|
| 267. |
101560-00006
|
[2] |
|
|
| 41. |
123-00153
|
[1] |
|
|
| 43. |
S2227561
|
[8] |
BOLT;SOCKET
|
|
| 50. |
109-00144
|
[1] |
BEARING;NEEDLE
|
|
| 500. |
420-00196
|
[1] |
VALVE;REDUCING
|
|
| 501. |
430-00025
|
[1] |
COVER
|
|
| 502. |
410127-00136
|
[2] |
|
|
| 52. |
2181-1890D2
|
[4] |
PLUG
|
|
| 54. |
181-00318
|
[6] |
BOLT;SOCKER
|
|
| 56. |
2181-1950D1
|
[2] |
PLUG
|
|
| 6. |
111601-00353
|
[2] |
|
|
| 65. |
410207-00243
|
[1] |
|
|
| 66. |
111601-00354
|
[1] |
SPRING
|
|
| 68. |
S6250182
|
[2] |
BALL
|
|
| 7. |
120808-00420
|
[2] |
|
|
| 71. |
415-00034
|
[1] |
ORIFICE
|
|
| 72. |
430219-00012
|
[1] |
|
|
| 73. |
430219-00013
|
[1] |
|
|
| 74. |
S8000111
|
[4] |
O-RING
|
|
| 75. |
415-00035
|
[1] |
ORIFICE
|
|
| 82. |
2181-1890D4
|
[1] |
PLUG
|
|
| 83. |
S8000181
|
[1] |
O-RING
|
|
| C. |
430215-00463A
|
[1] |
|
|
