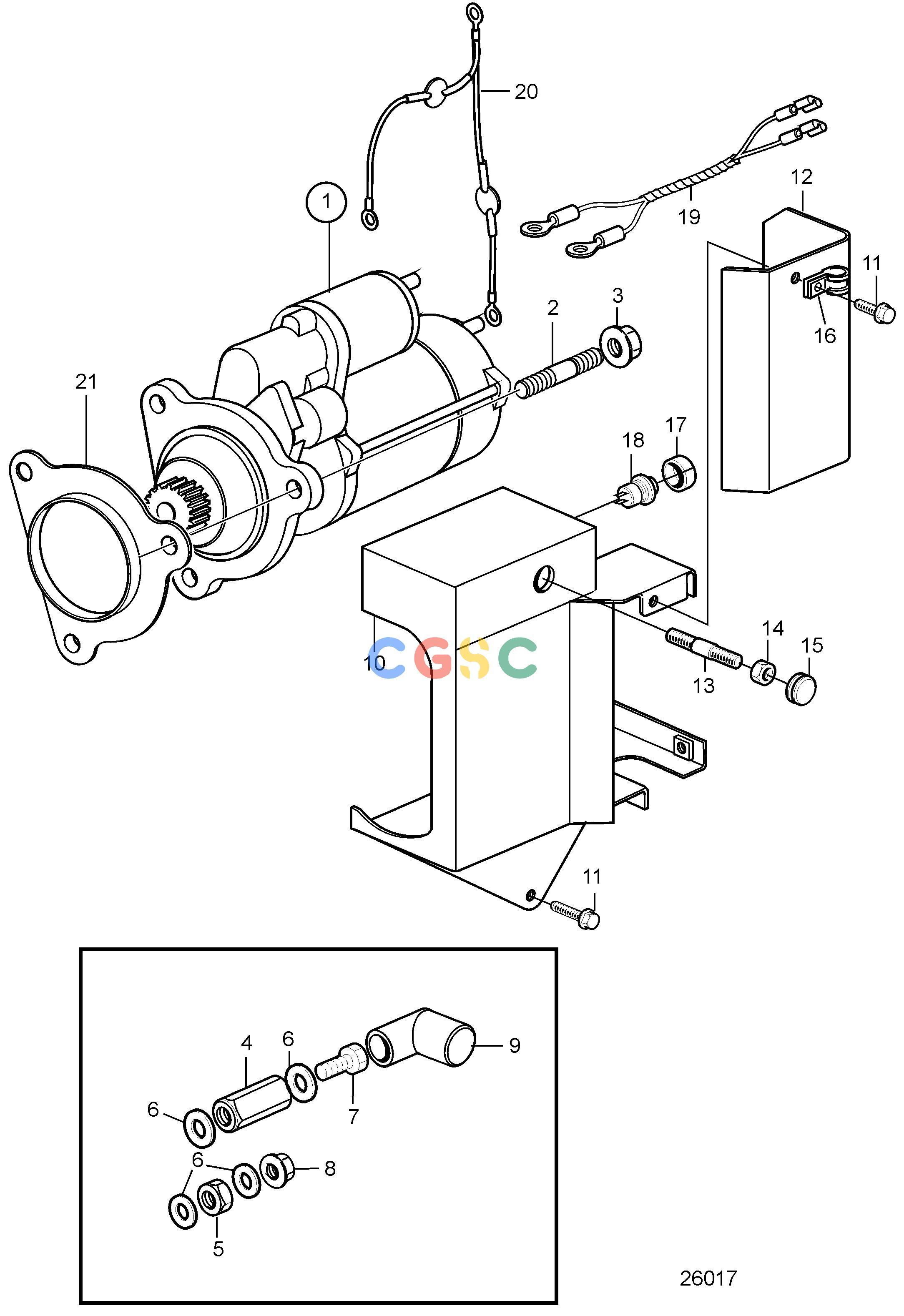

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MElectrical SystemStarter Motor, ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
874468
|
[1] |
Starter motor
|
Replaced by 3801292
|
| 1. |
3803872
|
[1] |
Starter motor, exch
|
Replaced by 3801292
|
| 1. |
|
|
|
|
| 1. |
3801292
|
[1] |
Starter motor, exch
|
|
| 1. |
3595446
|
[1] |
Starter motor
|
|
| 2. |
953098
|
[3] |
Stud
|
|
| 3. |
971096
|
[3] |
Flange nut
|
|
| 4. |
857180
|
[1] |
Spacer nut
|
M10x32mm
|
| 5. |
971071
|
[1] |
Hexagon nut
|
M10
|
| 6. |
941908
|
[4] |
Spring washer
|
|
| 7. |
946670
|
[1] |
Flange screw
|
|
| 8. |
971095
|
[1] |
Flange nut
|
|
| 9. |
855798
|
[1] |
Protecting sleeve
|
|
| 10. |
3832640
|
[1] |
Protecting casing
|
|
| 11. |
946440
|
[4] |
Flange screw
|
|
| 12. |
3832642
|
[1] |
Protecting casing
|
|
| 13. |
980289
|
[1] |
Stud
|
|
| 14. |
945408
|
[1] |
Flange nut
|
|
| 15. |
94081
|
[1] |
Plug
|
|
| 16. |
949747
|
[1] |
Clamp
|
|
| 17. |
837533
|
[1] |
Rubber cap
|
|
| 18. |
843684
|
[1] |
Button
|
|
| 19. |
874581
|
[1] |
Wiring harness
|
|
| 20. |
21546674
|
[1] |
Cable kit
|
|
| 21. |
3888763
|
[1] |
Gasket
|
|
