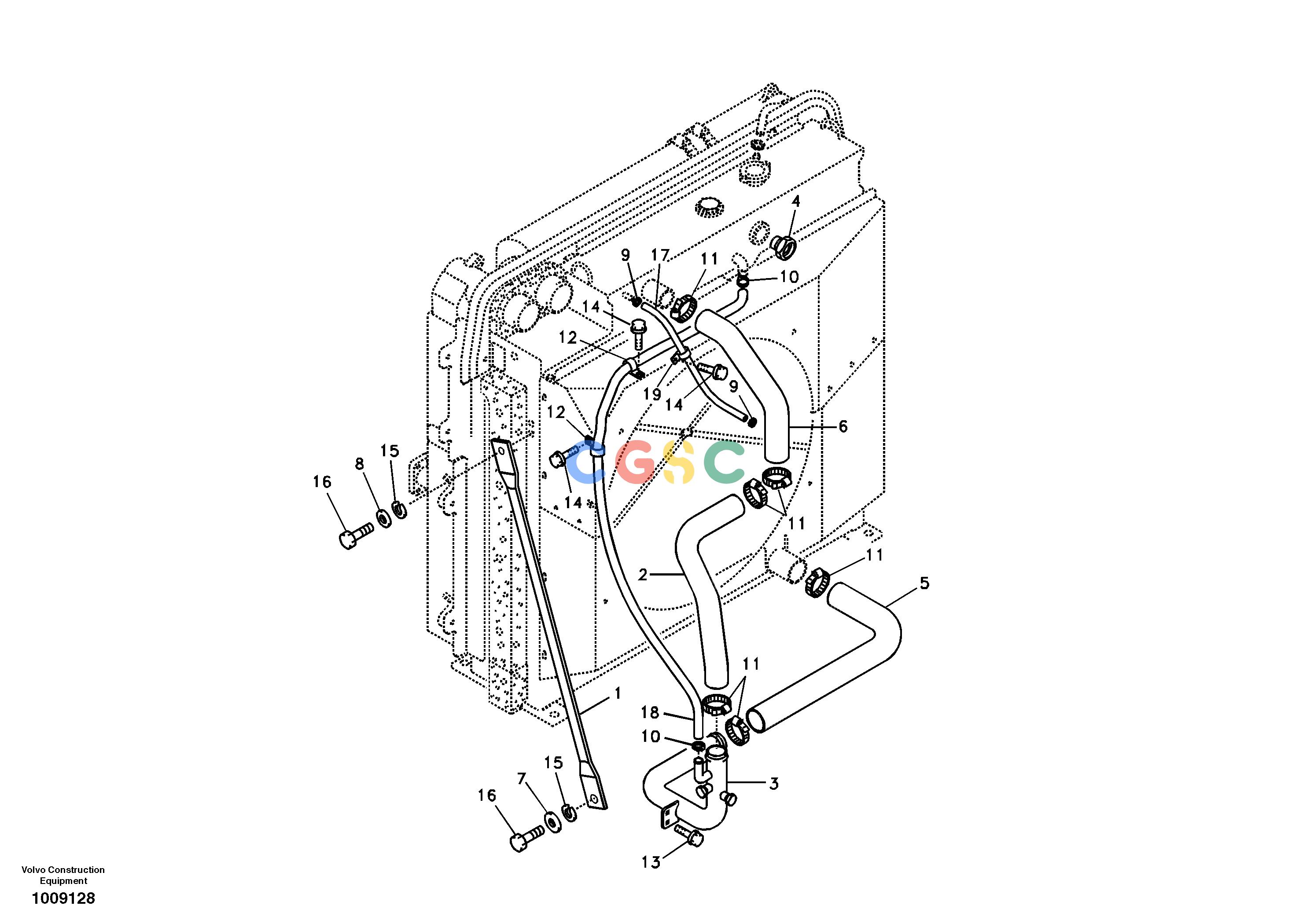

沃尔沃零件查询EC240B Cooling systemNone8277587-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1015-02830
|
[2] |
Stay
|
SER NO 10001-11066
SER NO 30001-30009
|
| |
VOE14523904
|
[2] |
Stay
|
SER NO 11067-
SER NO 30010-
|
| 2. |
VOE14501342
|
[1] |
Hose
|
|
| 3. |
VOE14501344
|
[1] |
Pipe
|
SER NO 10001-10890
|
| |
VOE14521368
|
[1] |
Tube
|
SER NO 10891-
SER NO 30001-
|
| 4. |
VOE14506388
|
[1] |
Gauge
|
|
| 5. |
VOE14510779
|
[1] |
Hose
|
|
| 6. |
VOE14510866
|
[1] |
Hose
|
|
| 7. |
VOE14532477
|
[2] |
Washer
|
|
| 8. |
VOE992042
|
[2] |
Plain washer
|
|
| 9. |
VOE943469
|
[2] |
Hose clamp
|
|
| 10. |
SA9312-10175
|
[2] |
Hose clamp
|
|
| 11. |
VOE11109241
|
[6] |
Clamp
|
SER NO 10001-12127
SER NO 30001-30135
|
| |
VOE11109241
|
[6] |
Clamp
|
SER NO 12128-
SER NO 30136-
|
| 12. |
SA9315-03001
|
[2] |
Clip
|
|
| 13. |
VOE946441
|
[2] |
Flange screw
|
|
| 14. |
VOE946471
|
[2] |
Flange screw
|
SER NO 10001-10085
|
| |
VOE946471
|
[3] |
Flange screw
|
SER NO 10086-
SER NO 30001-
|
| 15. |
VOE955923
|
[4] |
Spring washer
|
|
| 16. |
VOE997446
|
[4] |
Hexagon screw
|
|
| 17. |
VOE14881150
|
[1] |
Cooling hose
|
|
| 18. |
SA9962-02127
|
[1] |
Cooling hose
|
SER NO 10001-10890
|
| |
VOE14881166
|
[1] |
Cooling hose
|
SER NO 10891-
SER NO 30001-
|
| 19. |
SA9315-01401
|
[1] |
Insulating clip
|
SER NO 10086-
SER NO 30001-
|
