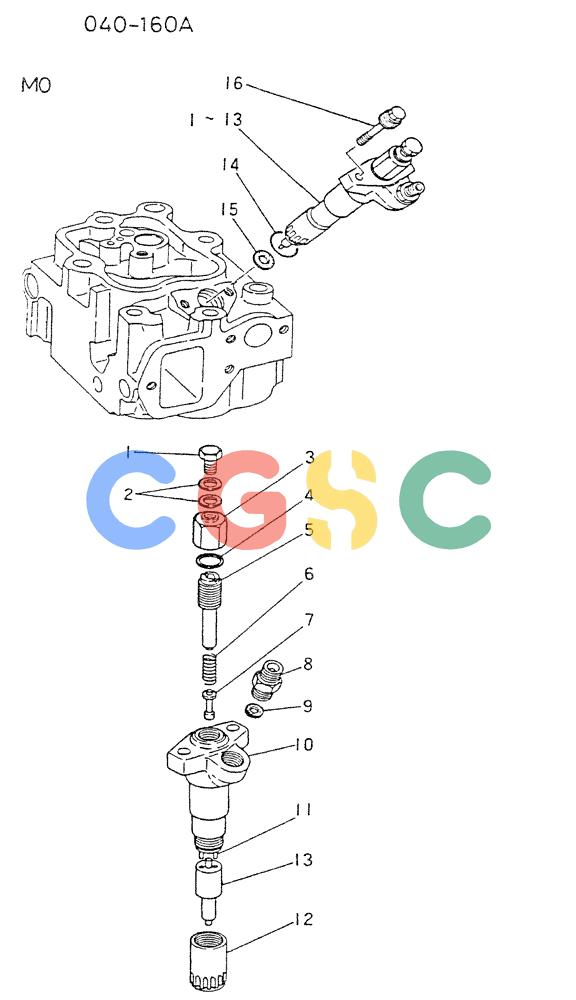

神钢零件查询(6D22C) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (03-008) - FUEL INJECTION, NOZZLE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS03 | [1] | FUEL INJECTION NOZZLE(M0) | |
| . . | 6D22Z ALL | [1] | FUEL INJECTION NOZZLE(M0) | |
| 1-13. | VAME059621 | [6] | NOZZLE | KOBASSY |
| 1-12. | NSS | [6] | NOT SOLD SEPARAT | CONNOZZLE HOLDER ASSY |
| 1. | VAME705400 | [6] | SCREW | KOBEYE Superseded by part number: 77270082, 134650A1 |
| 2. | VAME705389 | [12] | PACKING | KOBGASKET Superseded by part number: 134686A1 |
| 3. | VAME705427 | [6] | NUT | KOBCAP Superseded by part number: 134714A1 |
| 4. | VAME705391 | [6] | GASKET | KOB Superseded by part number: 134652A1 |
| 5. | VAME705404 | [6] | SCREW ADJUS | SCREW ADJUS |
| 6. | VAME705405 | [6] | SPRING NOZZLE | SPRING NOZZLE |
| 7. | VAME705406 | [6] | PUSH ROD | KOB Superseded by part number: 134708A1 |
| 8. | VAME705401 | [6] | HYD CONNECTOR | KOBINLET |
| 9. | VAME705390 | [6] | GASKET | KOB Superseded by part number: VA0293005070 |
| 10. | NSS | [6] | NOT SOLD SEPARAT | CONBODY, NOZZLE |
| 11. | VAME705407 | [12] | PIN | KOB Superseded by part number: 77270085, 134711A1 |
| 12. | VAME705402 | [6] | NUT | KOBRETAINING |
| 13. | VAME705429 | [6] | NOZZLE | KOBTIP, NOZZLE 4-0.37 |
| 14. | VA3096102200 | [6] | O-RING | KOBSEAL, DUST Superseded by part number: 134649A1 |
| 15. | VA3096102300 | [6] | O-RING | KOBGASKET, NOZZLE TIP |
| 16. | VAMH000657 | [12] | SCREW | KOB Superseded by part number: 134715A1 |
