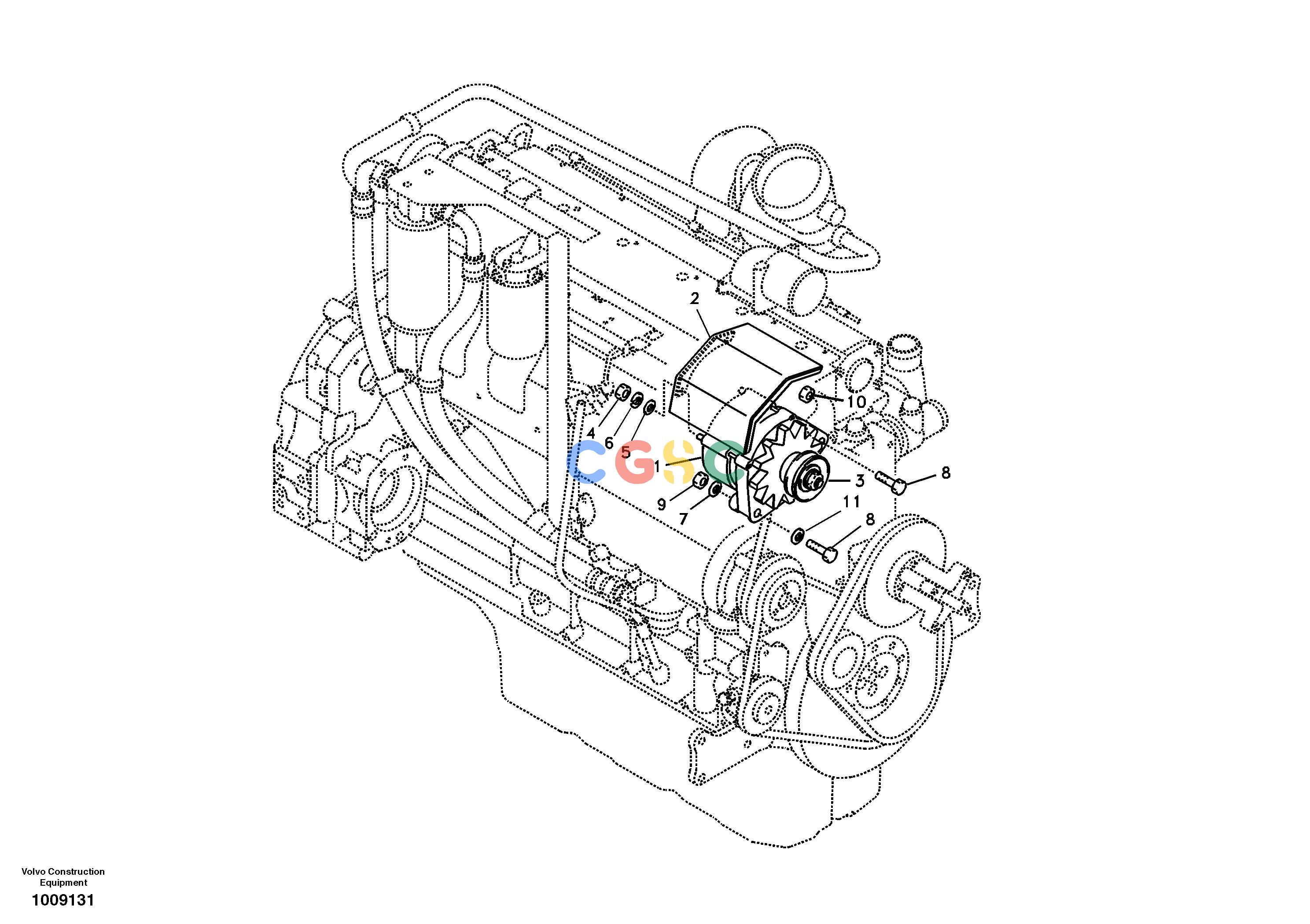

沃尔沃零件查询EC240B Alternator with assembling detailsNone8277475-8277476NoneNoneENG S/N -946871Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
830 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20459026
|
[1] |
Alternator
|
55A ENG S/N -946871
|
| |
VOE20482686
|
|
Alternator
|
80A ENG S/N -946871
|
| |
VOE20765376
|
|
Alternator
|
80A ENG S/N 946872-
|
| 2. |
VOE14514760
|
[1] |
Guard
|
|
| 3. |
VOE20485274
|
[1] |
Pulley
|
55A ENG S/N -946871
|
| |
VOE14514761
|
|
Pulley
|
80A ENG S/N 946872-
|
| 4. |
VOE991654
|
[2] |
Hexagon nut
|
|
| 5. |
VOE940090
|
[2] |
Plain washer
|
|
| 6. |
VOE955918
|
[2] |
Spring washer
|
|
| 7. |
VOE960148
|
|
Plain washer
|
|
| 8. |
VOE983257
|
|
Hexagon screw
|
|
| 9. |
VOE983304
|
|
Hexagon nut
|
|
| 10. |
VOE983304
|
|
Hexagon nut
|
SER NO 10001-10446
|
| 11. |
VOE14521287
|
[1] |
Washer
|
SER NO 10852-
SER NO 30001-
|
| |
VOE14522473
|
|
Washer
|
SER NO 10852-
SER NO 30001-
|
