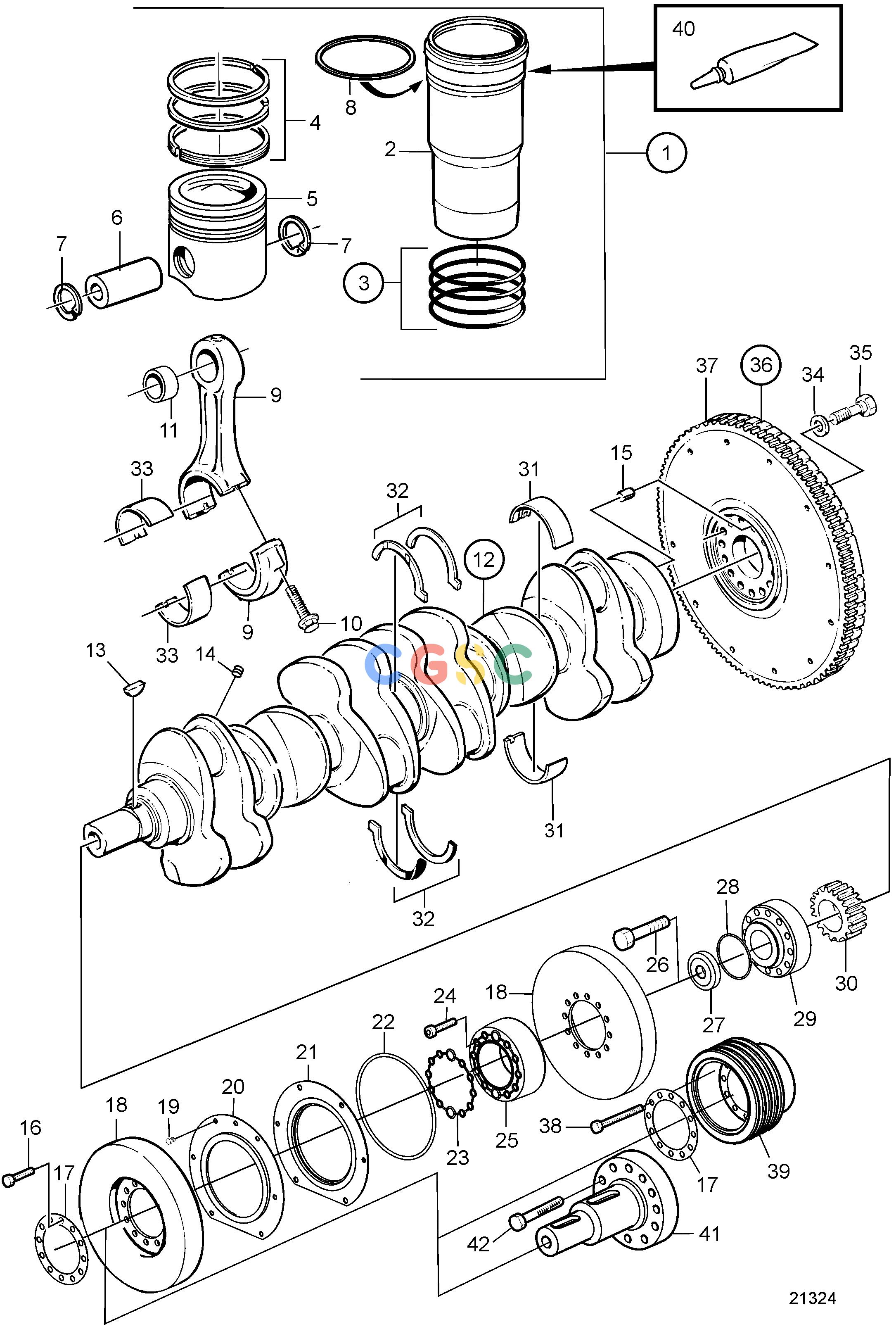

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MEngineCrank Mechanism SN1012638800-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21223174
|
[6] |
Cylinder liner kit
|
|
| 2. |
|
|
|
|
| 3. |
270950
|
[1] |
Gasket kit
|
|
| 4. |
21223178
|
[1] |
Piston ring kit
|
|
| 5. |
|
|
|
|
| 6. |
3155115
|
[1] |
Gudgeon pin
|
|
| 7. |
914530
|
[2] |
Snap ring
|
|
| 8. |
1677591
|
[6] |
Shim
|
TH=0.20mm
|
| 8. |
1677592
|
[6] |
Shim
|
TH=0.30mm
|
| 8. |
1677593
|
[6] |
Shim
|
TH=0.50mm
|
| 9. |
3828243
|
[6] |
Connecting rod, classifiable
|
|
| 9. |
20412200
|
[6] |
Connecting rod
|
|
| 10. |
1543035
|
[2] |
Flange screw
|
|
| 11. |
20381185
|
[1] |
Bushing
|
|
| 12. |
3832928
|
[1] |
Crankshaft, classifiable
|
|
| 12. |
20533078
|
[1] |
Crankshaft
|
|
| 13. |
422253
|
[1] |
Woodruff key
|
|
| 14. |
978130
|
[6] |
Plug
|
|
| 15. |
950645
|
[1] |
Pin
|
|
| 16. |
963254
|
[10] |
Hexagon screw
|
|
| 17. |
8193962
|
[1] |
Washer
|
|
| 18. |
8193930
|
[2] |
Vibration damper
|
|
| 19. |
946440
|
[6] |
Flange screw
|
|
| 20. |
3827504
|
[1] |
Dust cover
|
|
| 21. |
3832863
|
[1] |
Sealing ring
|
|
| 22. |
3832906
|
[1] |
O-ring
|
|
| 23. |
3827530
|
[1] |
Sealing ring
|
|
| 24. |
974111
|
[2] |
Hex. socket screw
|
|
| 25. |
3826656
|
[1] |
Companion flange
|
|
| 26. |
1543316
|
[1] |
Screw
|
|
| 27. |
422124
|
[1] |
Washer
|
|
| 28. |
945512
|
[1] |
O-ring
|
|
| 29. |
1549407
|
[1] |
Hub
|
|
| 30. |
8170192
|
[1] |
Gear
|
|
| 31. |
20530916
|
[7] |
Main bearing kit
|
Std, (276615)
|
| 31. |
|
|
|
Marked 20578617
|
| 31. |
20578624
|
[7] |
Main bearing kit
|
U.S=0.25mm, (276616)
|
| 31. |
20578625
|
[7] |
Main bearing kit
|
U.S=0.50mm, (276617)
|
| 31. |
20578626
|
[7] |
Main bearing kit
|
U.S=0.75mm, (276618)
|
| 31. |
20578627
|
[7] |
Main bearing kit
|
U.S=1.00mm, (276619)
|
| 31. |
20578628
|
[7] |
Main bearing kit
|
U.S=1.25mm, (276620)
|
| 32. |
3093651
|
[1] |
Thrust washer kit
|
Std
|
| 32. |
3093652
|
[1] |
Thrust washer kit
|
TH=0,10mm
|
| 32. |
3093653
|
[1] |
Thrust washer kit
|
TH=0.20mm
|
| 33. |
276134
|
[6] |
Big-end bearing shel
|
Std
|
| 33. |
276135
|
[6] |
Big-end bearing shel
|
U.S=0.25mm
|
| 33. |
276136
|
[6] |
Big-end bearing shel
|
U.S=0.50mm
|
| 33. |
276137
|
[6] |
Big-end bearing shel
|
U.S=0.75mm
|
| 33. |
276334
|
[6] |
Big-end bearing shel
|
U.S=1.00mm
|
| 33. |
276349
|
[6] |
Big-end bearing shel
|
U.S=1.25mm
|
| 34. |
1543563
|
[14] |
Washer
|
|
| 35. |
1677893
|
[14] |
Hexagon screw
|
|
| 36. |
3841339
|
[1] |
Flywheel
|
|
| 37. |
20711957
|
[1] |
Ring gear
|
|
| 38. |
970893
|
[10] |
Hexagon screw
|
|
| 39. |
3826648
|
[1] |
V-belt pulley
|
|
| 40. |
1161231
|
[1] |
Sealant
|
304ml
|
| 40. |
1161277
|
[1] |
Sealant
|
20g
|
| 41. |
3831617
|
[1] |
Axle shaft
|
Alt
|
| 42. |
970891
|
[10] |
Hexagon screw
|
For drive shaft 3831617
|
