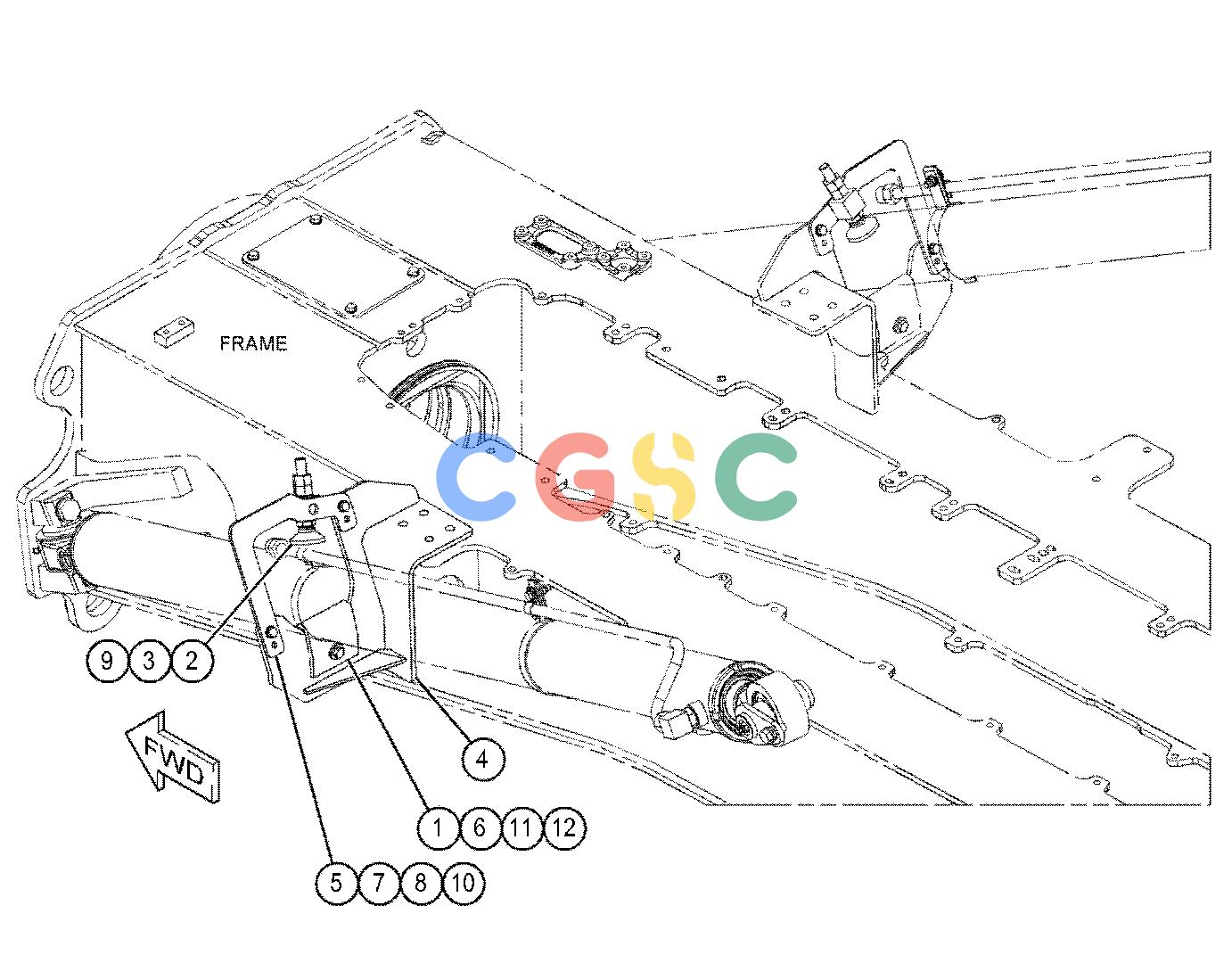

卡特零件查询（725C） 456-2280: BRACKET GP-SUPPORT
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 368-4100 | [1] | SHEET-RUBBER | |
| 2. | 368-5853 | [1] | BAR-BRACKET | |
| 3. | 369-7329 | [1] | SWIVEL AS | |
| 4. | 440-3077 | [1] | BRACKET AS | |
| 5. | 440-3078 | [1] | BRACKET AS | |
| 6. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 6V-3822M | [2] | BOLT(M10X1.5X35-MM) | |
| 8. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 10. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 11. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 12. | 8T-4910M | [1] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
