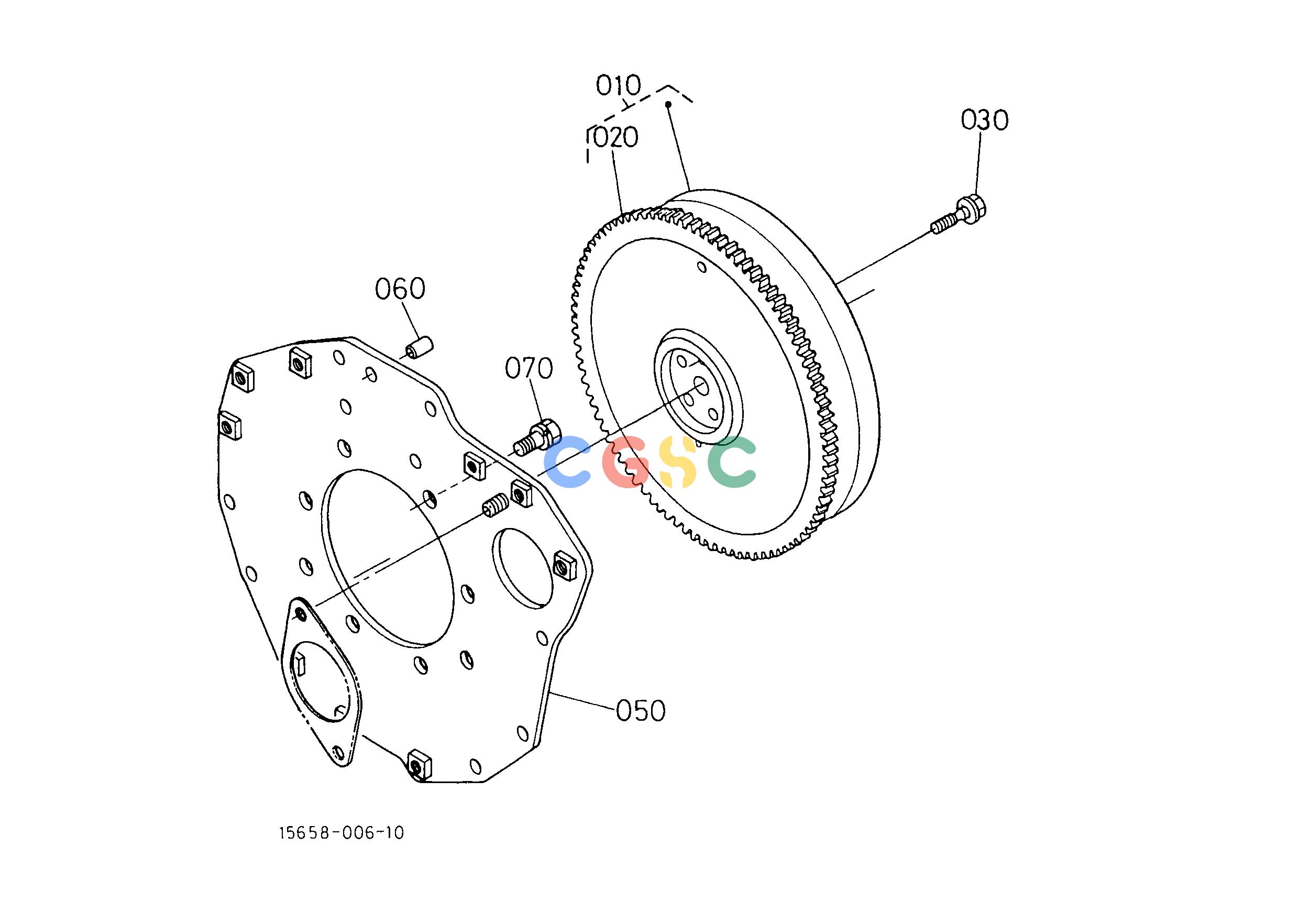

久保田零件查询T00502 FLYWHEEL ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
812 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1574125012
|
[1] |
COMP.FLYWHEEL
|
48.8400(lbs); 22.200
|
| 020. |
1523163820
|
[1] |
GEAR RING
|
0.0000(lbs); 0.000
|
| 020. |
1626163820
|
[1] |
GEAR RING
|
1.7380(lbs); 0.790
|
| 030. |
1553125160
|
[5] |
BOLT FLYWHEEL
|
0.0000(lbs); 0.000
|
| 030. |
1553125162
|
[5] |
BOLT FLYWHEEL
|
0.0880(lbs); 0.040
|
| 050. |
1553204620
|
[1] |
PLATE REAR END
|
12.9800(lbs); 5.900
|
| 060. |
0501200814
|
[1] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 070. |
0113351028
|
[8] |
BOLT
|
0.0594(lbs); 0.027
|
