沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
894 次

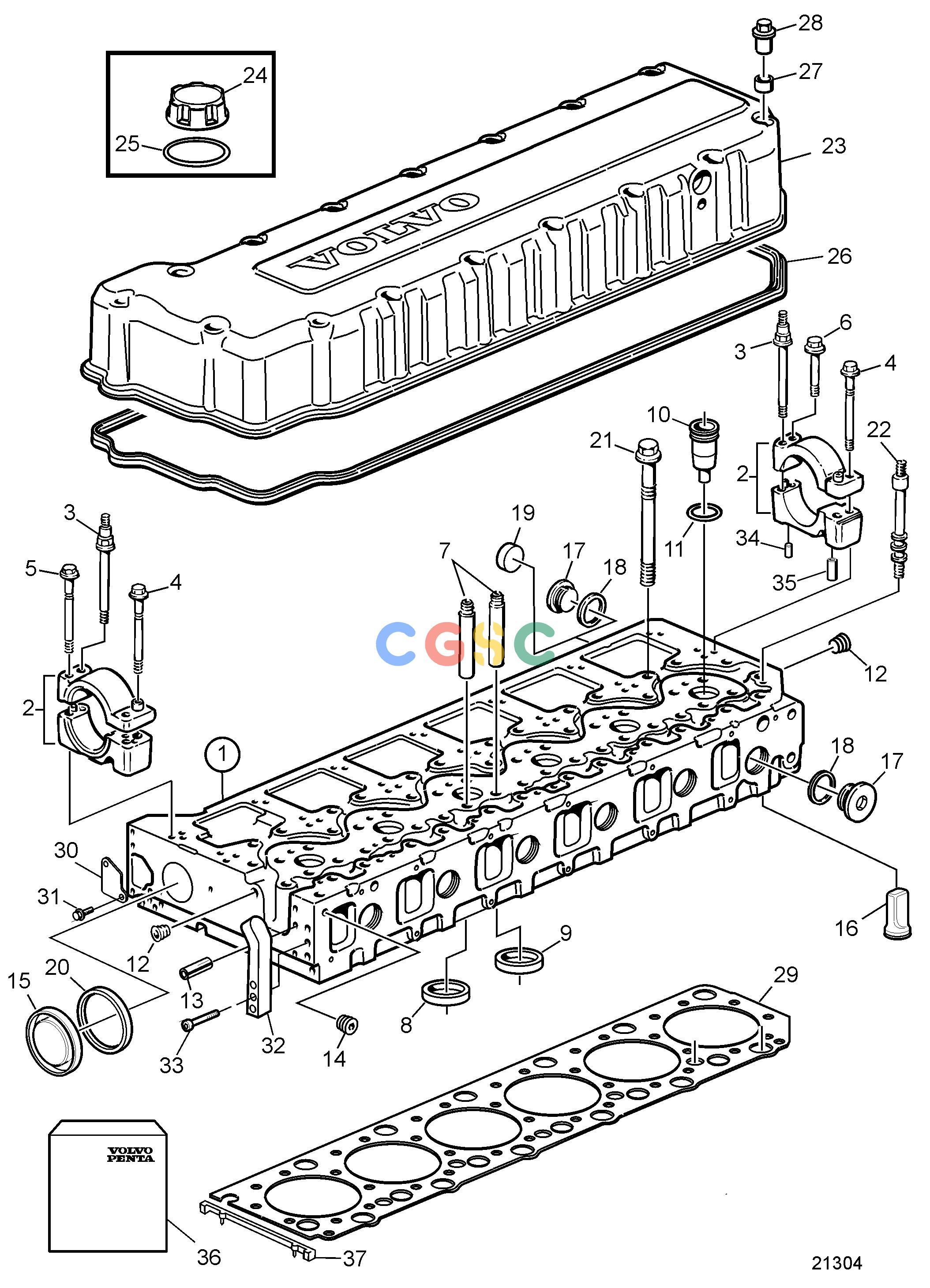

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803665
|
[1] |
Cylinder head
|
(3839414)
|
| 2. |
3165130
|
[1] |
Bearing housing, front
|
Included in overhaul kit 3165309.
|
| 2. |
3165133
|
[5] |
Bearing housing, middle
|
Included in overhaul kit 3165309.
|
| 2. |
3165136
|
[1] |
Bearing housing, rear
|
Included in overhaul kit 3165309.
|
| 3. |
8170626
|
[7] |
Flange screw
|
|
| 4. |
1547889
|
[14] |
Flange screw
|
L=127mm
|
| 5. |
1547888
|
[1] |
Flange screw
|
L=106mm
|
| 6. |
1677283
|
[6] |
Flange screw
|
L=70mm
|
| 7. |
1546437
|
[24] |
Valve guide
|
|
| 8. |
3183227
|
[12] |
Valve seat, inlet
|
Std
|
| 8. |
3183228
|
[12] |
Valve seat
|
O.S=0,20mm
|
| 9. |
3165369
|
[12] |
Valve seat, outlet
|
Std
|
| 9. |
3165397
|
[12] |
Valve seat
|
O.S=0,20mm
|
| 10. |
85104134
|
[6] |
Copper sleeve kit
|
(85104134)
|
| 11. |
20536487
|
[1] |
O-ring
|
|
| 12. |
968062
|
[2] |
Plug
|
|
| 13. |
422426
|
[1] |
Pin
|
|
| 14. |
968060
|
[1] |
Plug
|
|
| 15. |
8170553
|
[1] |
Expansion plug
|
|
| 16. |
3155057
|
[6] |
Jet
|
Early type
|
| 17. |
3165025
|
[1] |
Plug
|
Late type
|
| 18. |
949659
|
[1] |
O-ring
|
Late type
|
| 19. |
8131707
|
[11] |
Cap plug
|
Late type
|
| 20. |
1544710
|
[1] |
Sealing ring
|
|
| 21. |
21345131
|
[38] |
Flange screw
|
|
| 22. |
21344784
|
[9] |
Stud
|
|
| 23. |
20545669
|
[1] |
Valve cover
|
(8170115)
|
| 24. |
20807510
|
[1] |
Oil filler cap
|
Earlier prod.
|
| 25. |
1675841
|
[1] |
Gasket
|
Earlier prod.
|
| 26. |
21123014
|
[1] |
Sealing strip
|
|
| 27. |
3964604
|
[16] |
Bushing
|
|
| 28. |
8148488
|
[16] |
Cap nut
|
|
| 29. |
3099100
|
[1] |
Cylinder head gasket
|
(3093503)
|
| 30. |
3828003
|
[1] |
Cap
|
|
| 31. |
946440
|
[2] |
Flange screw
|
|
| 32. |
3826657
|
[1] |
Lifting eye
|
|
| 33. |
959265
|
[3] |
Hex. socket screw
|
|
| 34. |
950562
|
[14] |
Pin
|
Included in overhaul kit 3165309.
|
| 35. |
1546484
|
[7] |
Pivot pin
|
Included in overhaul kit 3165309.
|
| 36. |
3830718
|
[1] |
Gasket kit
|
See group 99
|
| 37. |
20489341
|
[1] |
Seal
|
(8170473)
|
