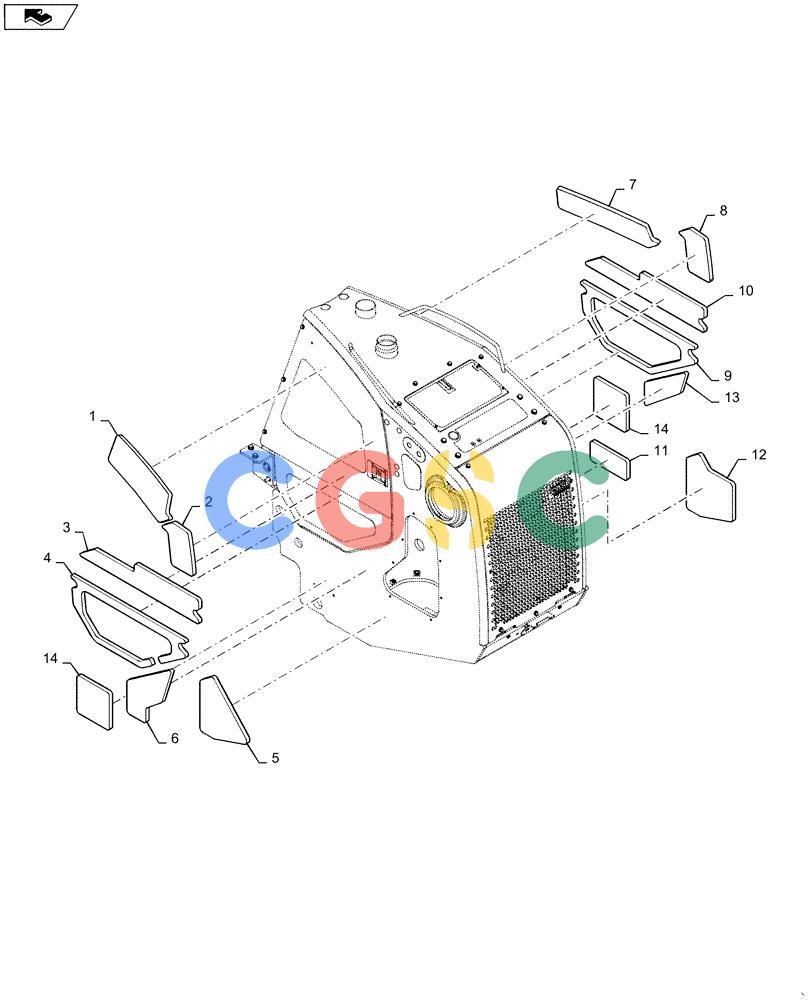

纽荷兰零件查询(D150C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (90.160.CK[02]) - SOUNDPROOFING PANEL - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
436 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84589435 | [1] | INSULATING PANEL | BURRh, Upper Door |
| 2. | 84589445 | [1] | INSULATING PANEL | BURRh, Front Door |
| 3. | 84589441 | [1] | INSULATING PANEL | BURRh, Lower Door |
| 4. | 84589442 | [1] | INSULATING PANEL | BURRh, Side Shield |
| 5. | 84589453 | [1] | INSULATING PANEL | BURRh, Front |
| 6. | 84589451 | [1] | INSULATING PANEL | BURRh, Upper |
| 7. | 84589438 | [1] | INSULATING PANEL | BURLh, Upper Door |
| 8. | 84589448 | [1] | INSULATING PANEL | BURLh, Front Door |
| 9. | 84589443 | [1] | INSULATING PANEL | BURLh, Side Shield |
| 10. | 84589440 | [1] | INSULATING PANEL | BURLh, Lower Door |
| 11. | 84589455 | [1] | INSULATING PANEL | BURLh, Lower |
| 12. | 84589449 | [1] | INSULATING PANEL | BURLh, Front |
| 13. | 84590435 | [1] | INSULATING PANEL | BURLh, Upper |
| 14. | 84590433 | [2] | INSULATING PANEL | BURLh, Rh, Rear |
