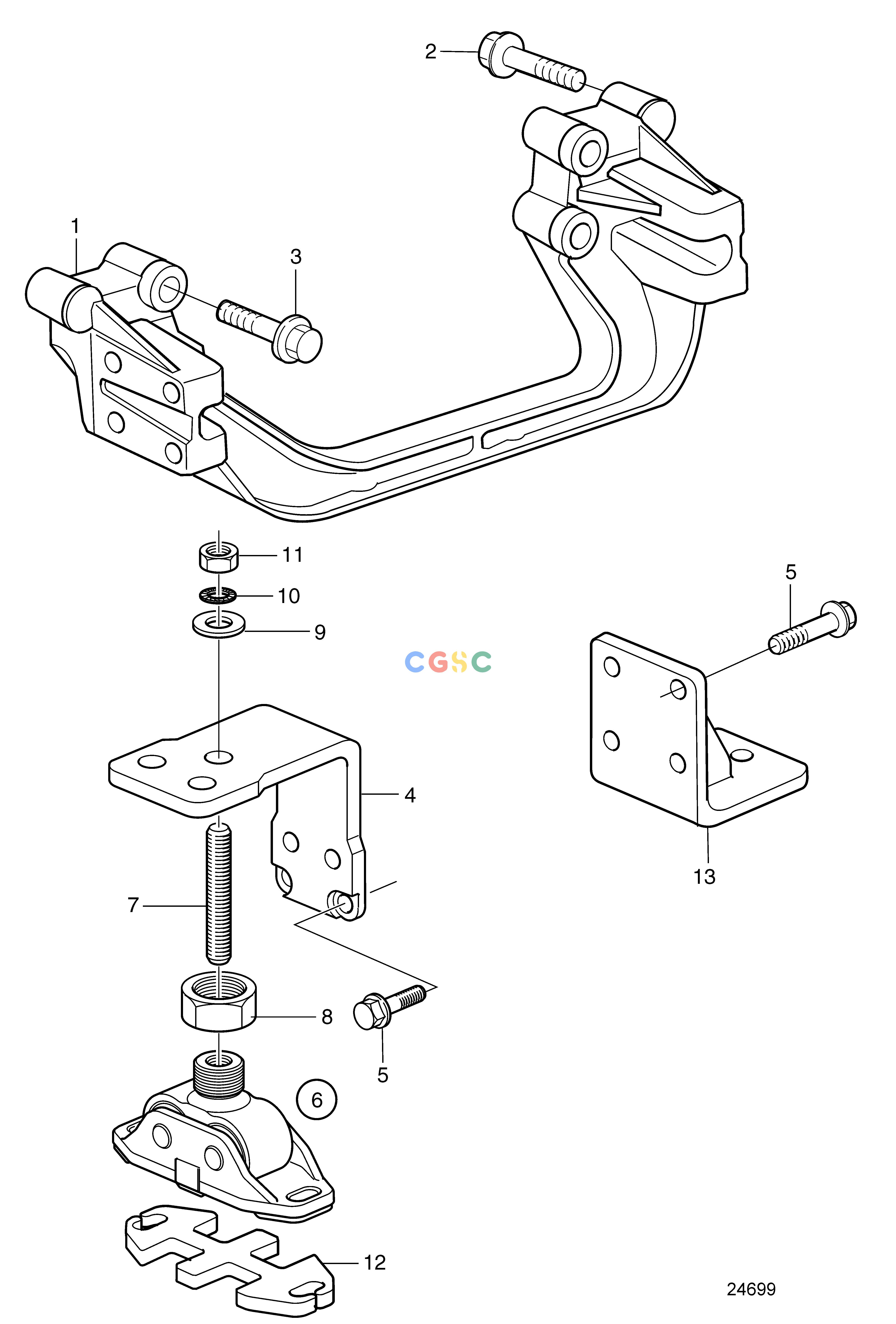

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MEngineFlexible Engine Suspension, HighEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
382 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
865410
|
[1] |
Engine anchorage
|
|
| 2. |
975120
|
[4] |
Flange screw
|
|
| 3. |
967786
|
[4] |
Flange screw
|
|
| 4. |
3826586
|
[2] |
Engine anchorage, front
|
|
| 5. |
968435
|
[16] |
Flange screw
|
|
| 6. |
3843493
|
[4] |
Rubber cushion kit
|
|
| 7. |
3817323
|
[4] |
Adjusting screw
|
|
| 8. |
3840980
|
[4] |
Nut
|
|
| 9. |
991994
|
[4] |
Washer
|
|
| 10. |
990697
|
[4] |
Lock washer
|
|
| 11. |
955786
|
[4] |
Hexagon nut
|
|
| 12. |
3840346
|
[4] |
Spacer plate
|
|
| 13. |
3827456
|
[2] |
Bracket, rear
|
Only mounted in flywheel housing on D12C-A MP, D12D-A MP, D12D-D MP.
|
