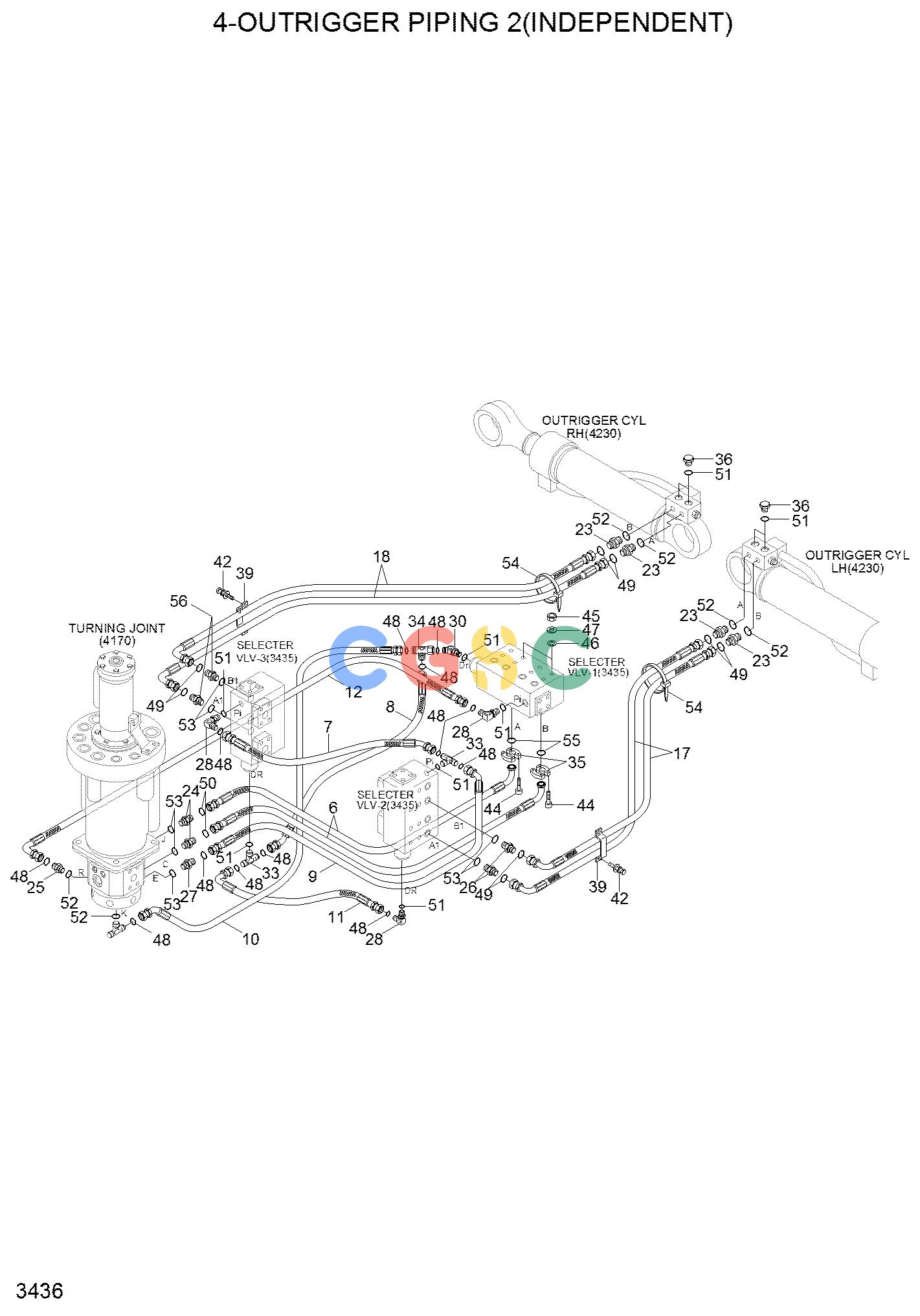

现代零件查询R200W-7A 4-OUTRIGGER PIPING 2(INDEPENDENT)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
633 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 6. |
31N6-70150
|
[2] |
HOSE ASSY
|
|
| 7. |
P923-042009
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 8. |
P923-042014
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 9. |
P923-042021
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 10. |
P923-042027
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 11. |
P933-042008
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 12. |
P933-042035
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 17. |
P933-067025
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 18. |
P933-067027
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 23. |
X500-110002
|
[5] |
CONNECTOR-ORFS
|
|
| 24. |
X500-110003
|
[2] |
CONNECTOR-ORFS
|
|
| 25. |
X500-110013
|
[1] |
CONNECTOR-ORFS
|
|
| 26. |
X500-110015
|
[2] |
CONNECTOR-ORFS
|
|
| 27. |
31N6-70520
|
[1] |
CONNECTOR
|
|
| 28. |
X520-110001
|
[3] |
ELBOW-90,ORFS
|
|
| 30. |
X530-110001
|
[1] |
ELBOW-45,ORFS
|
|
| 33. |
X810-045151
|
[2] |
TEE-B/TYPE,ORFS
|
|
| 34. |
X840-515151
|
[1] |
TEE-R/TYPE,ORFS
|
|
| 35. |
P173-160104
|
[4] |
FLANGE-SPLIT
|
|
| 36. |
P220-110102
|
[4] |
PLUG
|
|
| 39. |
31EM-45320
|
[2] |
CLAMP-HOSE
|
|
| 42. |
S037-102026
|
[4] |
BOLT-W/WASHER
|
|
| 44. |
S109-101306
|
[8] |
BOLT-SOCKET
|
|
| 45. |
S205-101006
|
[8] |
NUT-HEX
|
|
| 46. |
S403-101006
|
[8] |
WASHER-PLAIN
|
|
| 47. |
S411-100006
|
[7] |
WASHER-SPRING
|
|
| 48. |
S621-011001
|
[12] |
O-RING
|
|
| 49. |
S621-012001
|
[10] |
O-RING
|
|
| 50. |
S621-014001
|
[2] |
O-RING
|
|
| 51. |
S631-011004
|
[10] |
O-RING
|
|
| 52. |
S631-014004
|
[6] |
O-RING
|
|
| 53. |
S631-018004
|
[6] |
O-RING
|
|
| 54. |
S552-102370
|
[25] |
CLAMP-BAND
|
|
| 55. |
Y171-024004
|
[2] |
O-RING
|
|
| 56. |
X511-108523
|
[2] |
CONNECTOR-LONG,ORFS
|
|
