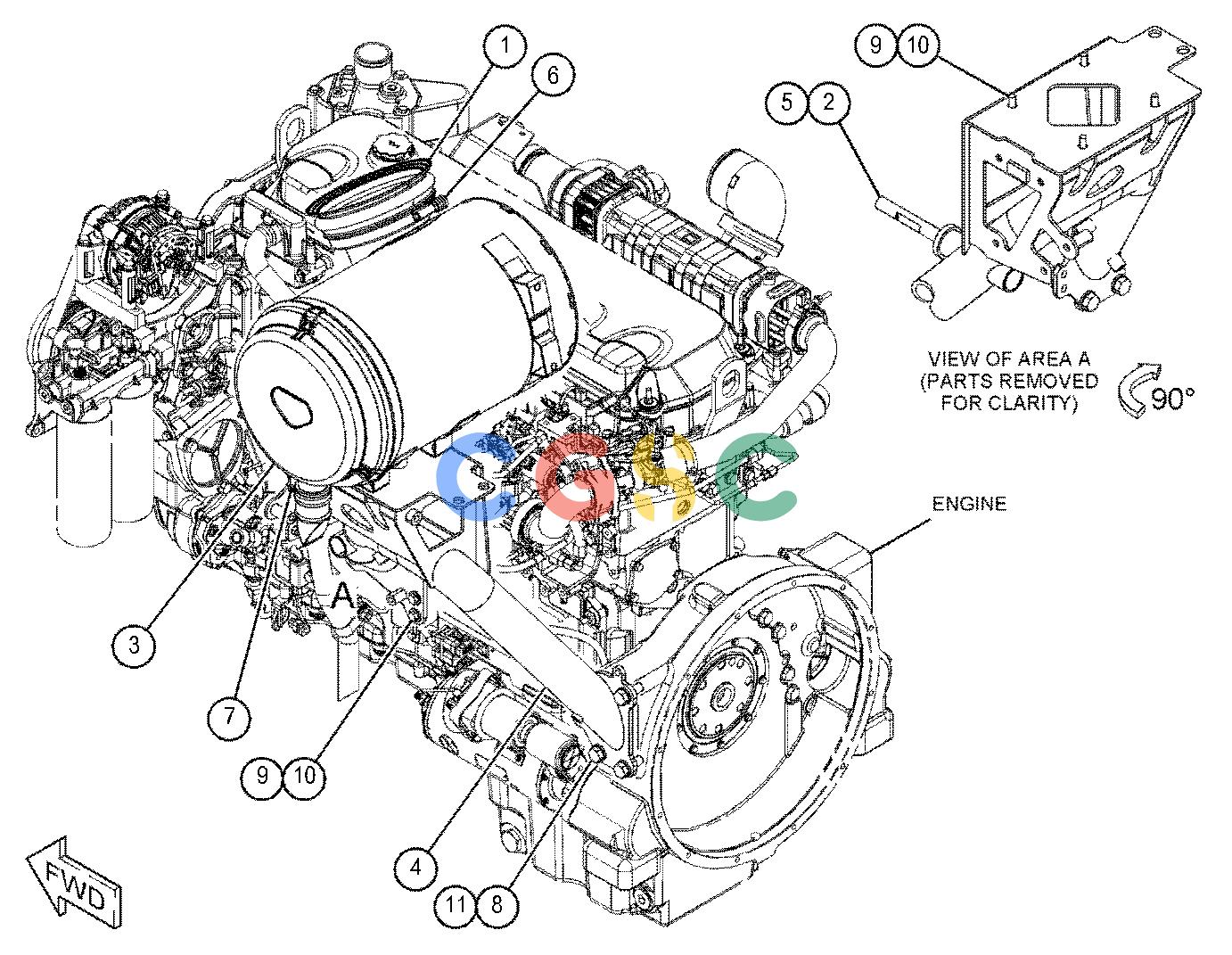

卡特零件查询（725C） 364-4050: AIR CLEANER GP
广数供应链运营团队, 14 02月, 2025，浏览：
563 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 533-4104 | [1] | SEAL-AIR CLEANER | |
| 2. | 425-2001 | [1] | SLEEVE | |
| 3. | 439-5332Y | [1] | AIR CLEANER GP | |
| 4. | 453-7563 | [1] | BRACKET AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 8Y-3795M | [1] | BOSS(M10X1.5X39-MM) | |
| | 9R-2672M | [2] | BOSS-THREADED(M10X1.5X120-MM) | |
| | 163-9662M | [1] | BOSS-THREADED(M12X1.75-THD) | |
| 5. | 175-7141M | [1] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 6. | 124-2732 | [1] | CLAMP-HOSE | |
| 7. | 7K-1181 | [1] | STRAP-CABLE | |
| 8. | 7X-2553M | [3] | BOLT(M16X2X40-MM) | |
| 9. | 7X-7729 | [7] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-4136M | [7] | BOLT(M10X1.5X25-MM) | |
| 11. | 9X-8257 | [3] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
