神钢零件查询(6D22CT) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (01-027) - AIR COMPRESSOR, INNER PART Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
837 次

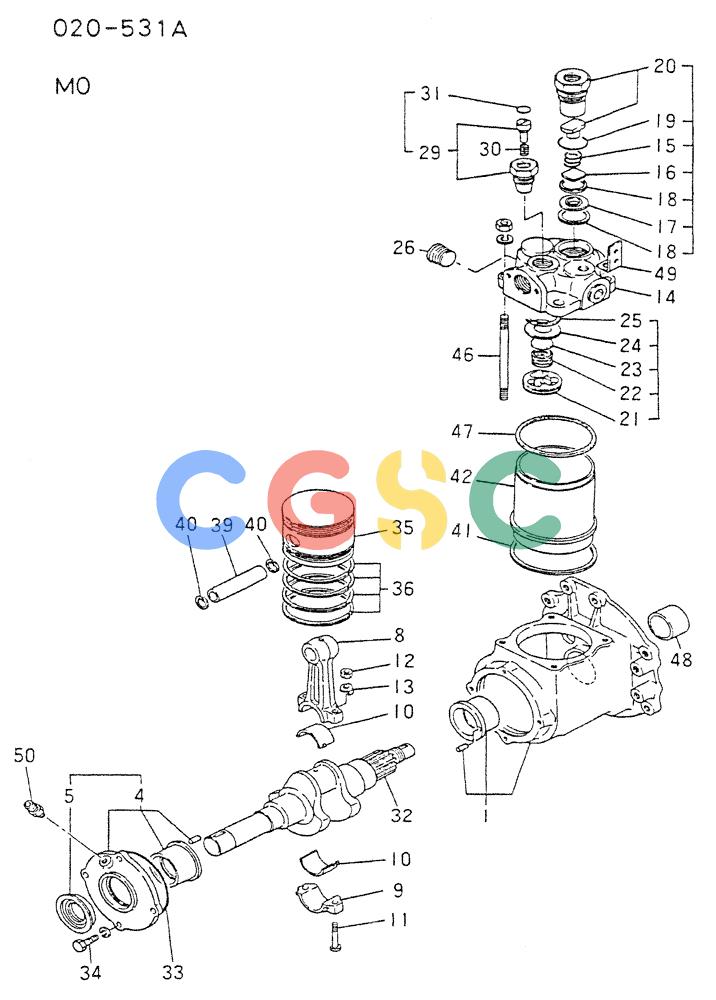

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | AIR COMPRESSOR INNER PART(M0) | |
| . . | 6D221CZ-KS09 | [1] | AIR COMPRESSOR INNER PART(M0) | |
| . . | 6D221CZ-KS04 | [1] | AIR COMPRESSOR INNER PART(M0) | |
| . . | 6D221CZ-KS01 | [1] | AIR COMPRESSOR INNER PART(M0) | |
| 1-50. | VAME057068 | [1] | AIR COMPRESSOR ASSY 1CYL | AIR COMPRESSOR ASSY 1CYL |
| 1. | VAME713000 | [1] | CRANKCASE ASSY | |
| 4-5. | VAME713003 | [1] | BEARING HOLDER ASSY | |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRG |
| 5. | VAME713004 | [1] | PISTON RING SET | KOB Superseded by part number: VA3097520600 |
| 8-13. | VA3097501040 | [1] | CONN. ROD SHELL | KOBROD ASSY |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONROD, CONNECTING |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, CONN-ROD |
| 10. | VA3097520900 | [2] | BEARING C0NNECTING | BEARING C0NNECTING |
| 11. | VAME713093 | [2] | BOLT | KOB |
| 12. | VA3097525100 | [2] | NUT CONN-ROD | NUT CONN-ROD |
| 13. | VA3097521200 | [2] | LOCK WASHER | LOCK WASHER |
| 14-31. | VAME713015 | [1] | CYLINDER HEAD | KOBCYLINDER HEAD ASSY |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD, CYL |
| 15-20. | VA3097502060 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE DELIVERY KIT Superseded by part number: 132608A1 |
| 15. | VA3097522500 | [1] | SPRING,DELIVERLY | SPRING,DELIVERLY |
| 16. | VA3097522600 | [1] | VALVE,DELIVERLY | VALVE,DELIVERLY |
| 17. | VA3097522700 | [1] | DELIVERY/V | |
| 18. | VA3097522800 | [2] | GASKET | KOBDELIVERY/V Superseded by part number: 132567A1 |
| 19. | VA3097522900 | [1] | O-RING | O-RING |
| 20. | VA3097501060 | [1] | DELIVERY VALVE ASSY | DELIVERY VALVE ASSY |
| 21-25. | VA3097502070 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE Superseded by part number: 132611A1 |
| 21. | VA3097523100 | [1] | SUCTION | |
| 22. | VA3097523200 | [1] | SPRING SUCTION | SPRING SUCTION |
| 23. | VA3097523300 | [1] | VALVE SUCTION | VALVE SUCTION |
| 24. | VA3097523400 | [1] | SUCTION | |
| 25. | VA3097523500 | [1] | GASKET,SUCTION | GASKET,SUCTION |
| 26. | VA3097523600 | [2] | PLUG PT3/4 | |
| 29-31. | VA3097501070 | [1] | HYDRAULIC VALVE | KOB Superseded by part number: VAME713027 |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE, UNLOADER |
| 30. | VA3097524200 | [1] | SPRING,UNLOADER | SPRING,UNLOADER |
| 31. | VA3097524300 | [1] | RING, SNAP | RING, SNAP |
| 32. | VA3097520300 | [1] | CRANK SHAFT | CRANK SHAFT |
| 33. | VAME713002 | [1] | O-RING | KOB Superseded by part number: 132630A1 |
| 34. | VAMF101256 | [4] | BOLT 8X22 | |
| . . | VAMF450405 | [4] | WASHER | KOBSPG 8 Superseded by part number: 132502A1 |
| 35. | VA3097521400 | [1] | MANIFOLD PISTON | MANIFOLD PISTON |
| 36. | VA3097502050 | [1] | RING KIT PISTON | RING KIT PISTON |
| 39. | VA3097521700 | [1] | PIN | KOB Superseded by part number: 132581A1 |
| 40. | VA3097521800 | [2] | RING,SNAP | RING,SNAP |
| 41. | VA3097521900 | [1] | O-RING | KOBGASKET, LINER Superseded by part number: VAME713329 |
| 42. | VA3097522100 | [1] | HYD CONNECTOR | KOB Superseded by part number: 132575A1 |
| 46. | VA3097524400 | [4] | STUD | |
| . . | VA634831018 | [4] | NUT 10 | |
| . . | VAMF450406 | [4] | WASHER | KOBSPG 10 |
| 47. | VA3097524500 | [1] | O-RING | KOB Superseded by part number: 132565A1 |
| 48. | VAME713030 | [1] | COLLAR | COLLAR |
| 49. | VAME713031 | [1] | BRACKET | |
| 50. | VAME713196 | [1] | UNIVERSAL JOINT | KOB |
