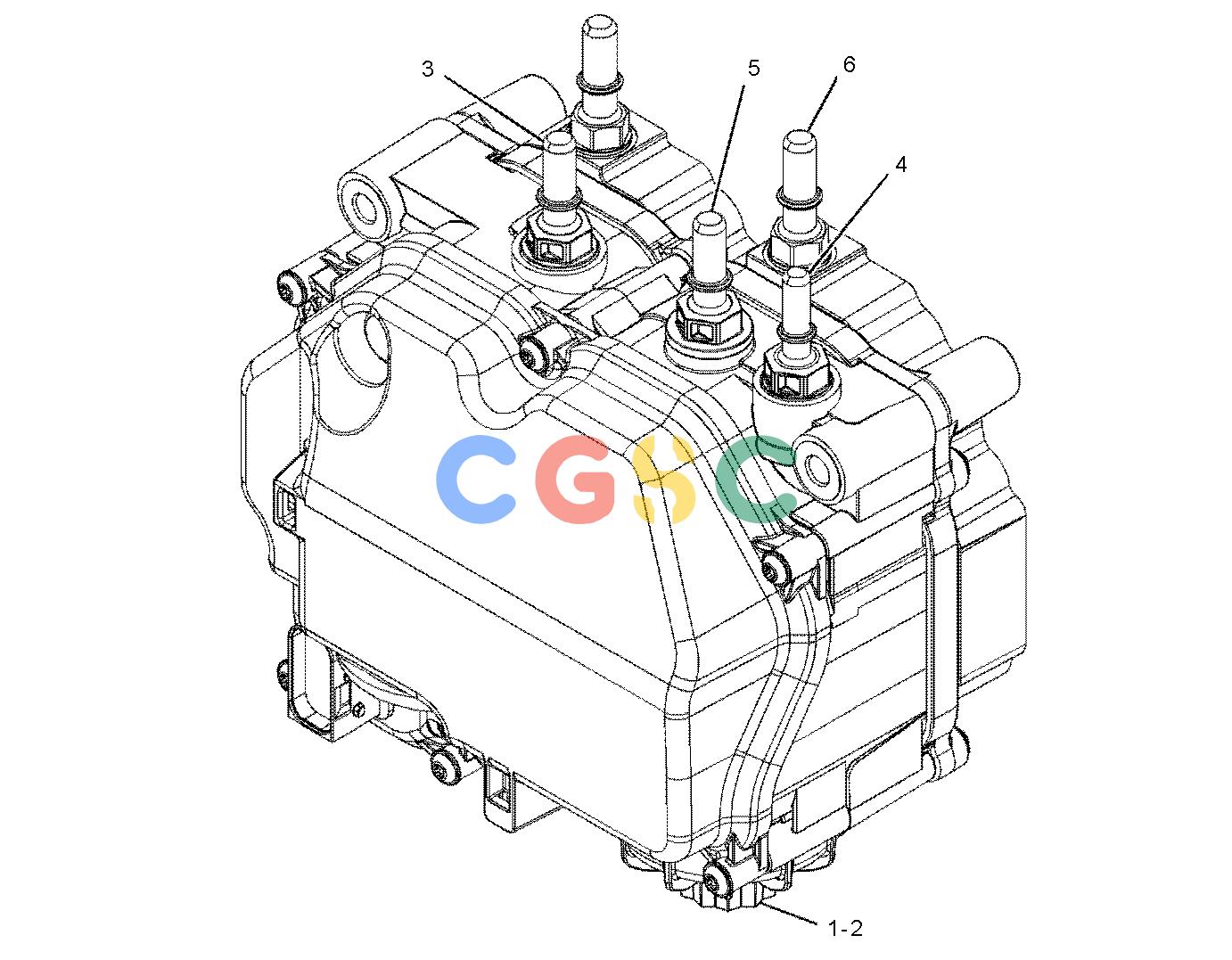

卡特零件查询（725C） 398-4747: PUMP GP-DIESEL EXHAUST FLUID
广数供应链运营团队, 14 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 378-3187 | [1] | FILTER GP-DIESEL EXHAUST FLUID | |
| 2. | 378-3188 | [1] | CAP-FILTER | |
| 3. | 423-3251 | [1] | CONNECTOR(DEF PUMP, INLET, SUCTION) | |
| 4. | 423-3252 | [1] | CONNECTOR(DEF PUMP, OUTLET, PRESSURE) | |
| 5. | 423-3253 | [1] | CONNECTOR(INTEGRAL FILTER, CHECK VALVE)(DEF PUMP, INLET, BACKFLOW) | |
| 6. | 423-3254 | [2] | CONNECTOR(DEF PUMP, INLET, COOLANT) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 423-3255 | [1] | KIT-COVER(DEF PUMP) | |
| | | | (INCLUDES PROTECTIVE CAPS FOR THE OUTLET, INLET, COOLANT & BACKFLOW ELECTRICAL CONNECTORS) |
