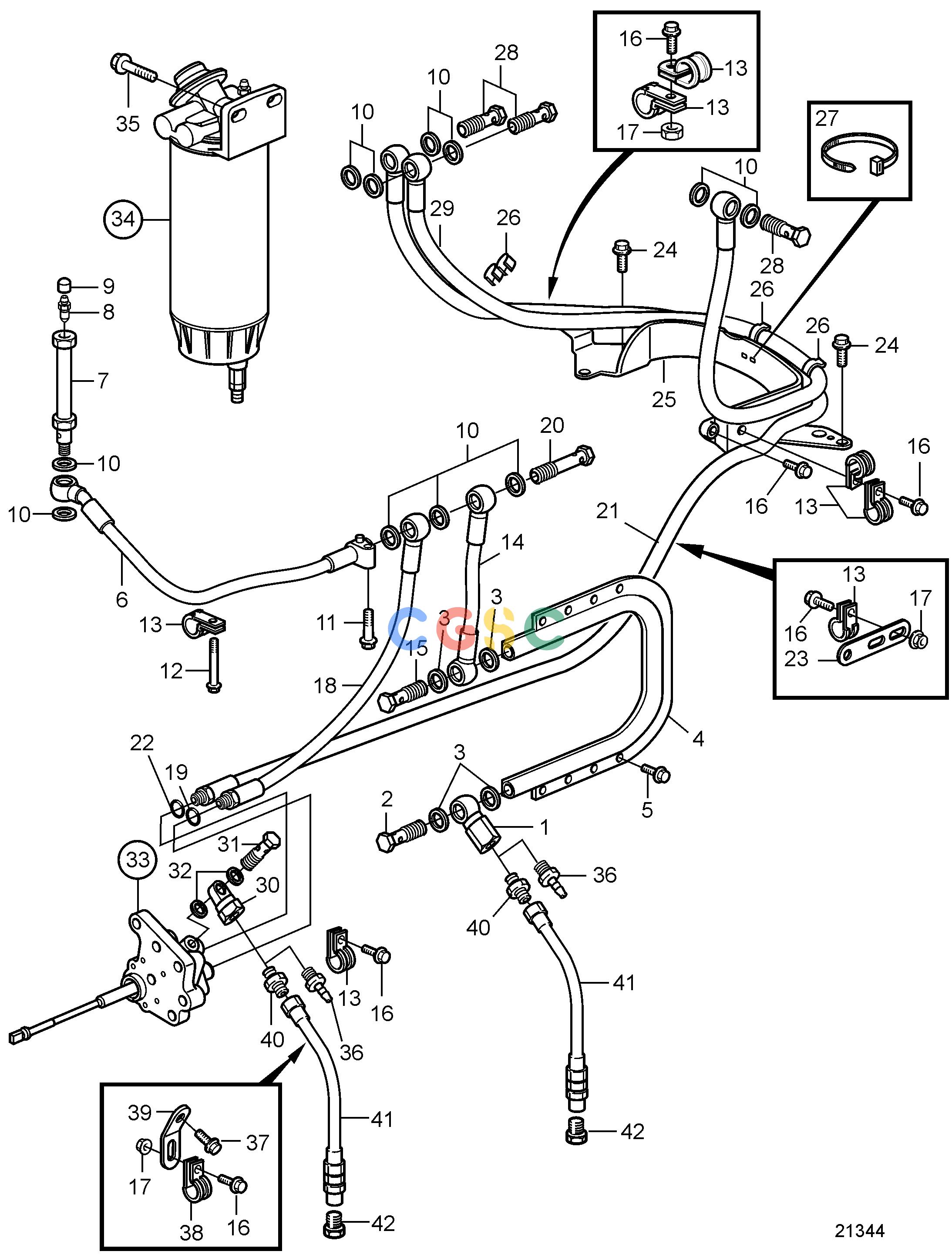

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MFuel SystemFuel System: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
579 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3828976
|
[1] |
Non-return valve
|
|
| 2. |
25167
|
[1] |
Hollow screw
|
|
| 3. |
969011
|
[4] |
Gasket
|
|
| 4. |
20562394
|
[1] |
Radiator
|
For electronic control unit.
|
| 5. |
975979
|
[6] |
Six point socket scr
|
|
| 6. |
3838162
|
[1] |
Fuel hose
|
|
| 7. |
3828271
|
[1] |
Hollow screw
|
|
| 8. |
20548012
|
[1] |
Faucet
|
(1330191)
|
| 9. |
20547976
|
[1] |
Protecting cover
|
(656456)
|
| 10. |
11996
|
[11] |
Gasket
|
|
| 11. |
965183
|
[1] |
Flange screw
|
|
| 12. |
965181
|
[1] |
Flange screw
|
|
| 13. |
949747
|
[7] |
Clamp
|
|
| 14. |
3589256
|
[1] |
Fuel hose
|
|
| 15. |
25167
|
[1] |
Hollow screw
|
|
| 16. |
946440
|
[6] |
Flange screw
|
|
| 17. |
945408
|
[3] |
Flange nut
|
|
| 18. |
3826591
|
[1] |
Fuel hose
|
|
| 19. |
976971
|
[1] |
O-ring
|
|
| 20. |
8148244
|
[1] |
Valve
|
|
| 21. |
21265159
|
[1] |
Fuel hose
|
|
| 22. |
976971
|
[1] |
O-ring
|
|
| 23. |
965541
|
[1] |
Bracket
|
|
| 24. |
946502
|
[2] |
Flange screw
|
|
| 25. |
3837245
|
[1] |
Bracket
|
|
| 26. |
9205207
|
[3] |
Retainer
|
|
| 27. |
948211
|
[4] |
Cable tie
|
|
| 28. |
993596
|
[3] |
Hollow screw
|
|
| 29. |
21265170
|
[1] |
Fuel hose
|
|
| 30. |
3827418
|
[1] |
Banjo nipple
|
|
| 31. |
74033
|
[1] |
Hollow screw
|
|
| 32. |
947620
|
[2] |
Gasket
|
|
| 33. |
3092460
|
[1] |
Fuel pump
|
SN-240248, Repl by 20440371
|
| 33. |
|
|
|
|
| 33. |
20440371
|
[1] |
Fuel pump
|
SN240249-, Repl by 20752310
|
| 33. |
20752310
|
[1] |
Fuel pump
|
|
| 34. |
3817516
|
[1] |
Fuel filter
|
Early type, Repl by 3885572
|
| 34. |
3885572
|
[1] |
Fuel filter
|
Late type
|
| 34. |
|
|
|
|
| 35. |
946472
|
[2] |
Flange screw
|
|
| 36. |
3825000
|
[2] |
Hose nipple
|
Alt
|
| 37. |
945444
|
[1] |
Flange screw
|
|
| 38. |
1545432
|
[1] |
Attaching clamp
|
|
| 39. |
965571
|
[1] |
Bracket
|
|
| 40. |
977677
|
[2] |
Nipple
|
Alt
|
| 41. |
3826595
|
[2] |
Fuel hose
|
Alt
|
| 42. |
22753
|
[2] |
Nipple
|
Alt
|
