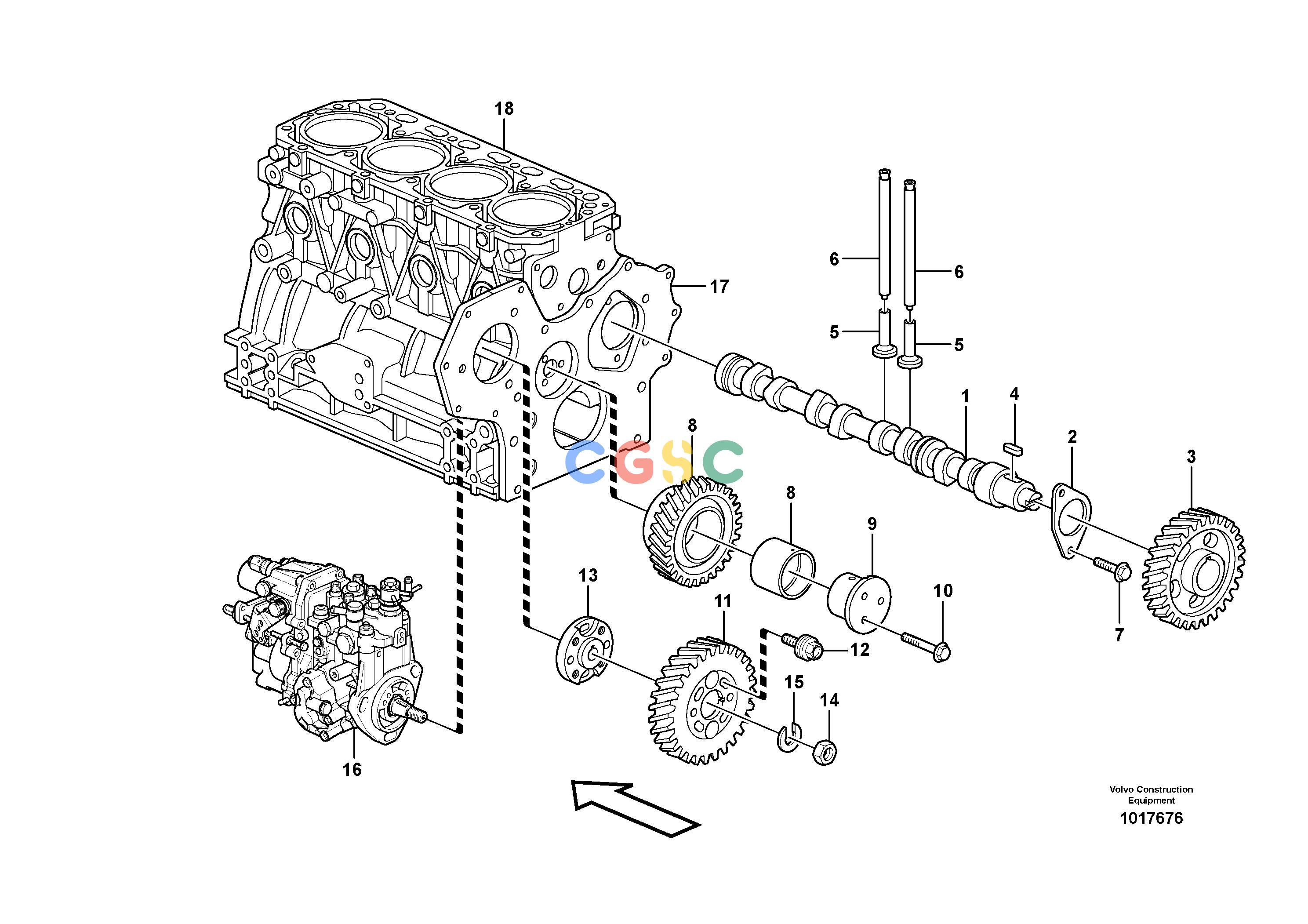

沃尔沃零件查询EC27C Valve mechanismNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713679
|
[1] |
Camshaft
|
|
| 2. |
|
[1] |
Thrust Washer
|
|
| 3. |
|
[1] |
Camshaft Gear
|
|
| 4. |
|
[1] |
Key
|
|
| 5. |
VOE11714485
|
[8] |
Tappet
|
|
| 6. |
VOE11713678
|
[8] |
Rod
|
|
| 7. |
VOE14525410
|
[2] |
Bolt
|
|
| 8. |
VOE15079637
|
[1] |
Gear
|
|
| 9. |
VOE15079645
|
[1] |
Shaft
|
|
| 10. |
VOE11714487
|
[3] |
Bolt
|
|
| 11. |
VOE11714338
|
[1] |
Gear
|
|
| 12. |
VOE11713415
|
[4] |
Bolt
|
|
| 13. |
VOE11714339
|
[1] |
Flange
|
|
| 14. |
VOE11714345
|
[1] |
Spring washer
|
|
| 15. |
VOE11714347
|
[1] |
Lock nut
|
|
| 16. |
|
[1] |
Injection Pump
|
|
| 17. |
|
[1] |
Timing gear casing
|
|
| 18. |
|
[1] |
Cylinder Block
|
|
