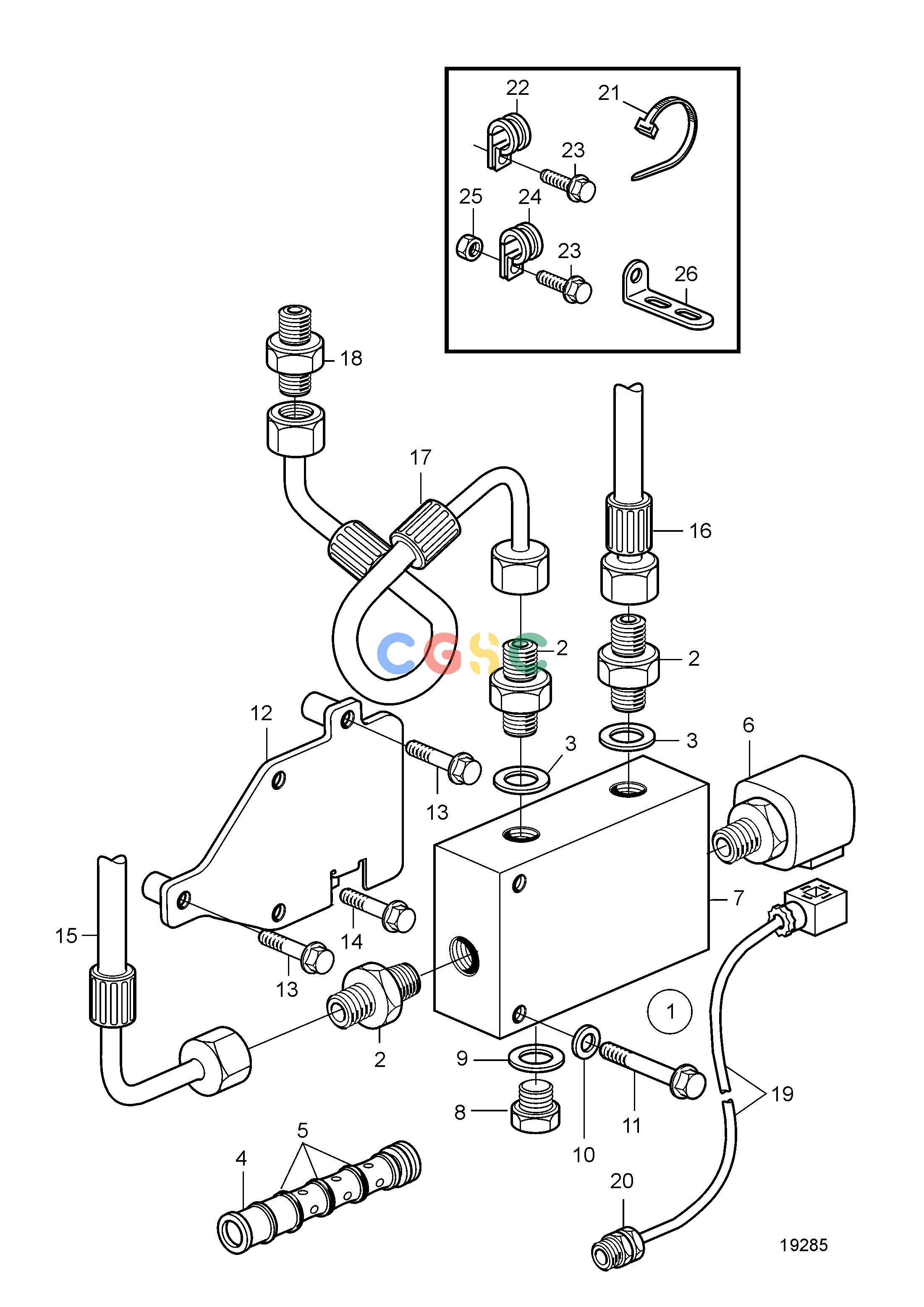

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MFuel SystemShut-off ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3835754
|
[1] |
Fuel valve
|
|
| 2. |
983388
|
[3] |
Nipple
|
|
| 3. |
947629
|
[3] |
Gasket
|
|
| 4. |
3835759
|
[1] |
Valve
|
Repl by 3835754
|
| 5. |
3835803
|
[1] |
Gasket kit
|
|
| 6. |
3835762
|
[1] |
Magnet
|
|
| 7. |
3835761
|
[1] |
Manifold
|
|
| 8. |
963799
|
[1] |
Reduction nipple
|
|
| 9. |
190957
|
[1] |
Gasket
|
|
| 10. |
976944
|
[2] |
Washer
|
|
| 11. |
965181
|
[2] |
Flange screw
|
|
| 12. |
3835312
|
[1] |
Bracket
|
|
| 13. |
973924
|
[2] |
Flange screw
|
|
| 14. |
946440
|
[1] |
Flange screw
|
|
| 15. |
3835321
|
[1] |
Hose
|
|
| 16. |
3835318
|
[1] |
Hose
|
|
| 17. |
3835319
|
[1] |
Hose
|
|
| 18. |
977677
|
[1] |
Nipple
|
|
| 19. |
874511
|
[1] |
Cable kit
|
L=3.0m
|
| 19. |
874934
|
[1] |
Cable kit
|
L=4,0m
|
| 20. |
881191
|
[1] |
Grommet
|
|
| 21. |
1075407
|
[2] |
Cable tie
|
|
| 21. |
948211
|
[1] |
Cable tie
|
|
| 22. |
942542
|
[2] |
Clamp
|
I.D=7,9mm
|
| 23. |
946440
|
[3] |
Flange screw
|
|
| 24. |
949747
|
[3] |
Clamp
|
I.D=15,9mm
|
| 25. |
945408
|
[2] |
Flange nut
|
|
| 26. |
965556
|
[1] |
Bracket
|
|
