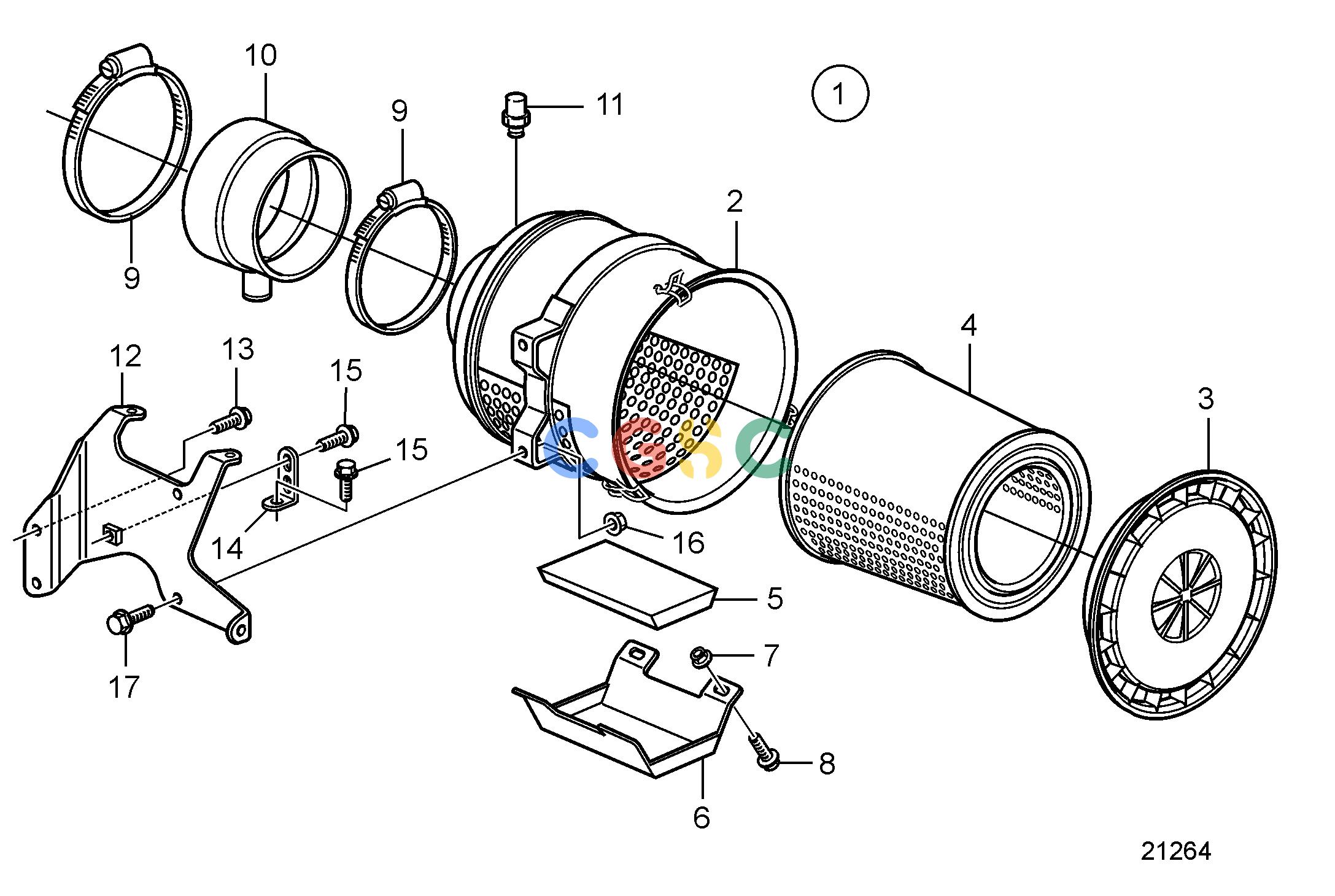

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MIntake and Exhaust SystemAir Filter: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3828568
|
[1] |
Air filter
|
Early type
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3828811
|
[1] |
Filter insert
|
Replaced by 3885441
|
| 4. |
3885441
|
[1] |
Air filter insert
|
Replaced by 21196919
|
| 4. |
21196919
|
[1] |
Air filter insert
|
|
| 5. |
3830197
|
[1] |
Oil collector
|
|
| 6. |
3830166
|
[1] |
Oil trap
|
|
| 7. |
963105
|
[4] |
Lock nut
|
|
| 8. |
967949
|
[4] |
Flange screw
|
|
| 9. |
961907
|
[2] |
Hose clamp
|
|
| 10. |
3588023
|
[1] |
Rubber collar
|
|
| 11. |
3828765
|
[1] |
Pressure drop indica
|
(842037)
|
| 12. |
3832661
|
[1] |
Bracket
|
|
| 13. |
946472
|
[2] |
Flange screw
|
|
| 14. |
965553
|
[1] |
Bracket
|
|
| 15. |
946440
|
[2] |
Flange screw
|
|
| 16. |
945408
|
[2] |
Flange nut
|
|
| 17. |
946173
|
[2] |
Flange screw
|
|
