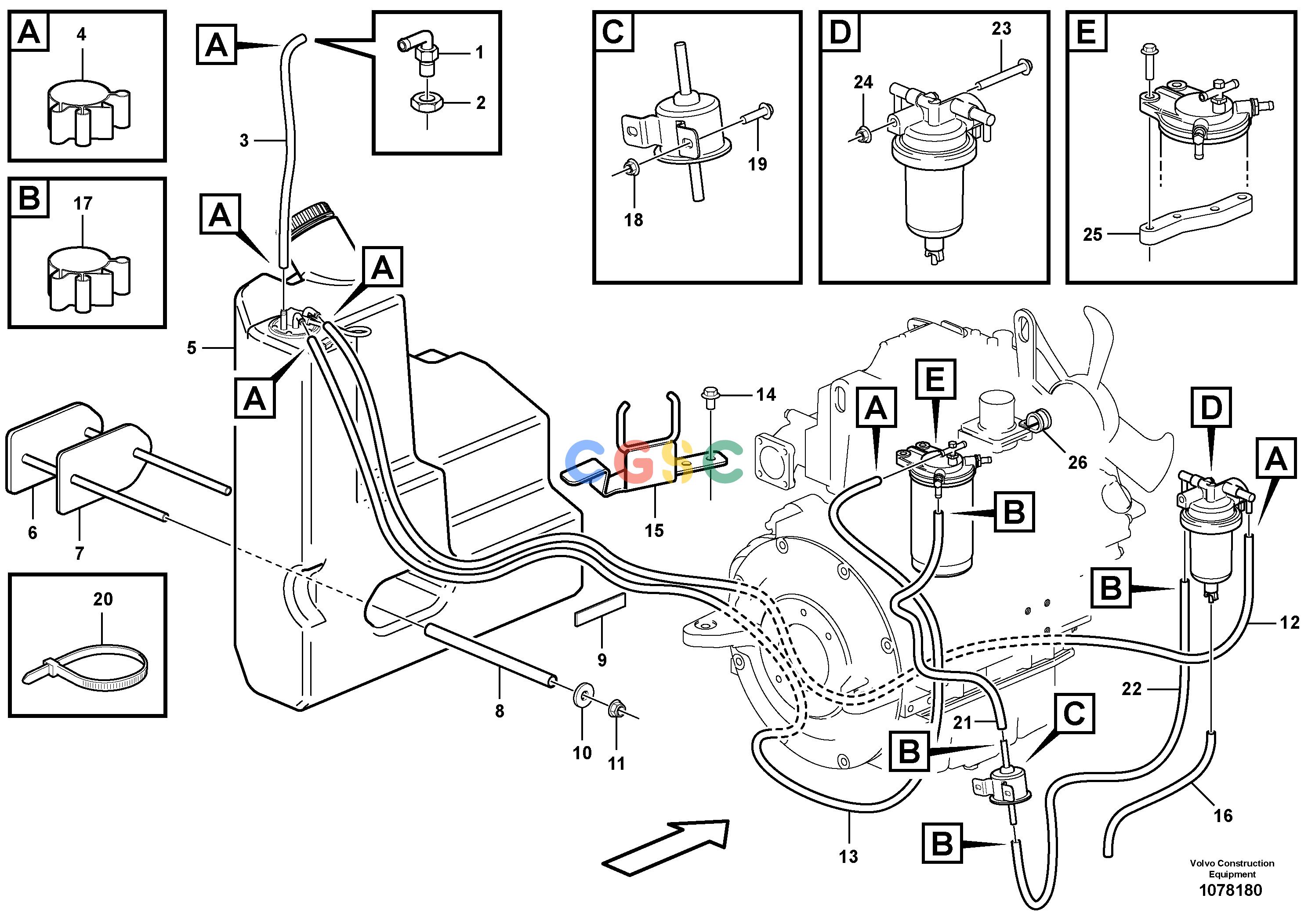

沃尔沃零件查询EC27C Fuel tank with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
399 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11802319
|
[1] |
Elbow
|
|
| 2. |
VOE11802318
|
[1] |
Nut
|
|
| 3. |
VOE15681443
|
[REQ] |
Tube
|
L = 420 MM
|
| 4. |
VOE15681496
|
[6] |
Clamp
|
|
| 5. |
VOE11807736
|
[1] |
Fuel tank
|
SER NO - 2731
|
| 5. |
VOE15616058
|
[1] |
Fuel tank
|
SER NO 2732 -
|
| 5. |
VOE15610351
|
[1] |
Deflector
|
SER NO 2732 -
|
| 6. |
VOE11808365
|
[1] |
Support
|
|
| 7. |
VOE11808005
|
[1] |
Rubber Spacer
|
|
| 8. |
VOE11807741
|
[2] |
Spacer
|
|
| 9. |
VOE11808309
|
[7] |
Rubber strap
|
|
| 10. |
VOE960145
|
[2] |
Plain washer
|
|
| 11. |
VOE971096
|
[2] |
Flange nut
|
|
| 12. |
VOE15681443
|
[REQ] |
Tube
|
L = 2300 MM
|
| 13. |
VOE15681443
|
[REQ] |
Tube
|
L = 2400 MM
|
| 14. |
VOE946502
|
[2] |
Flange screw
|
|
| 15. |
VOE11809243
|
[1] |
Support
|
|
| 16. |
VOE11801991
|
[REQ] |
Tube
|
|
| 17. |
VOE15681496
|
[4] |
Clamp
|
|
| 18. |
VOE945407
|
[2] |
Flange nut
|
|
| 19. |
VOE13947542
|
[2] |
Screw
|
|
| 20. |
VOE4881440
|
[4] |
Cable tie
|
|
| 21. |
VOE15681443
|
[REQ] |
Tube
|
L = 535 MM
|
| 22. |
VOE15681443
|
[REQ] |
Tube
|
L = 1350 MM
|
| 23. |
VOE965181
|
[1] |
Flange screw
|
|
| 24. |
VOE13945408
|
[1] |
Nut
|
|
| 25. |
VOE11809198
|
[1] |
Support
|
|
| 26. |
VOE967531
|
[1] |
Clamp
|
|
