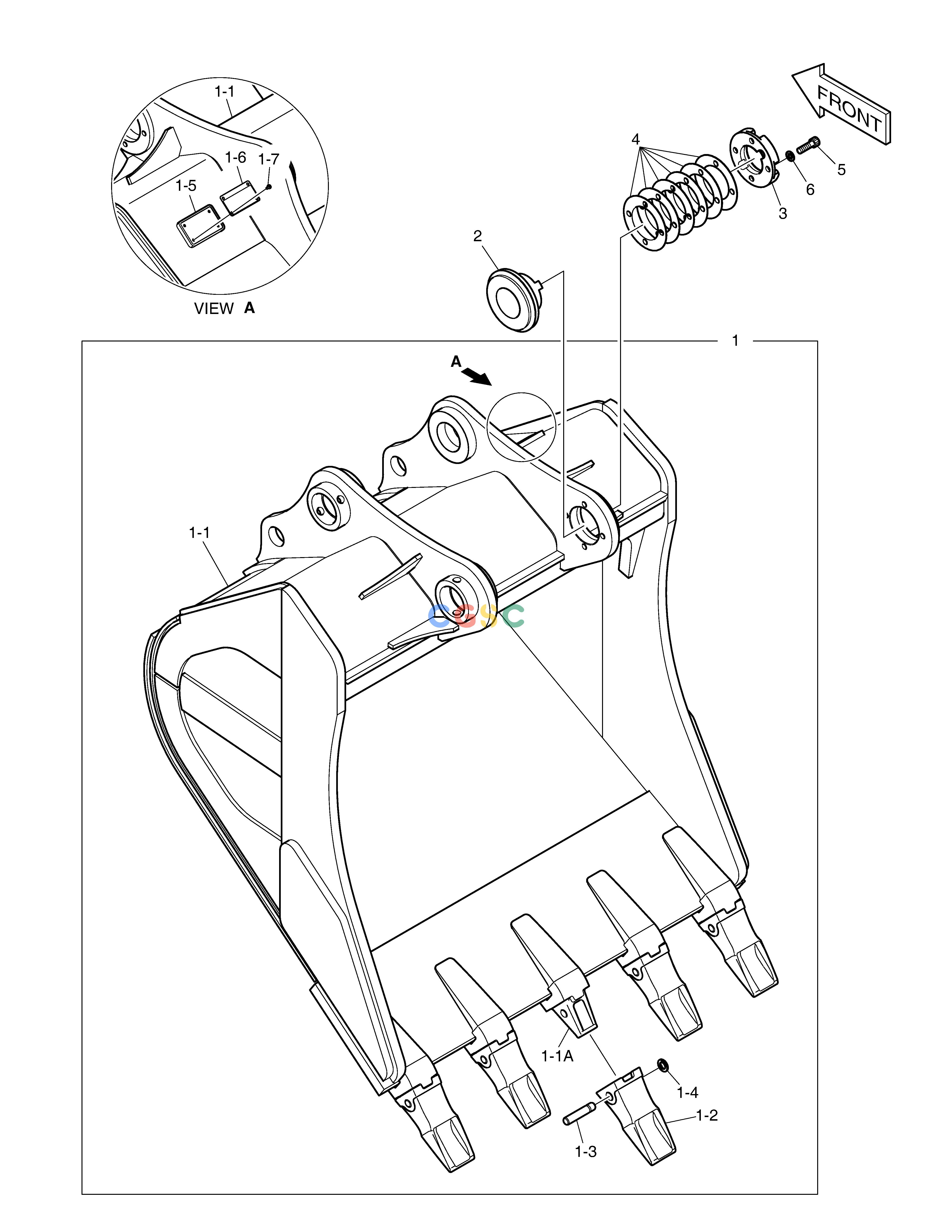

斗山零件查询BUCKET ASS'Y - 1.16m³(ROCK) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
513 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-00582
|
[1] |
|
|
| 1. |
230104-00583B
|
[1] |
|
|
| 1-1. |
230104-00584B
|
[1] |
|
|
| 1-1A. |
2713-1220A
|
[5] |
ADAPTER;TOOTH
|
|
| 1-2. |
K1039299A
|
[5] |
POINT;TOOTH
|
|
| 1-3. |
2705-1021
|
[5] |
PIN;LOCKING
|
|
| 1-4. |
2114-1849A
|
[5] |
WASHER;LOCKING
|
|
| 1-5. |
110913-00289A
|
[1] |
|
|
| 1-6. |
950209-04415A
|
[1] |
|
|
| 1-7. |
DS0501007
|
[4] |
|
|
| 2. |
K1000211A
|
[1] |
BUSH;FLANGE
|
|
| 3. |
K1013190A
|
[1] |
STOPPER
|
|
| 4. |
K1013570
|
[6] |
SHIM
|
|
| 5. |
S2221566
|
[4] |
BOLT
|
|
| 6. |
K1014251
|
[4] |
WASHER;HARDEN
|
|
